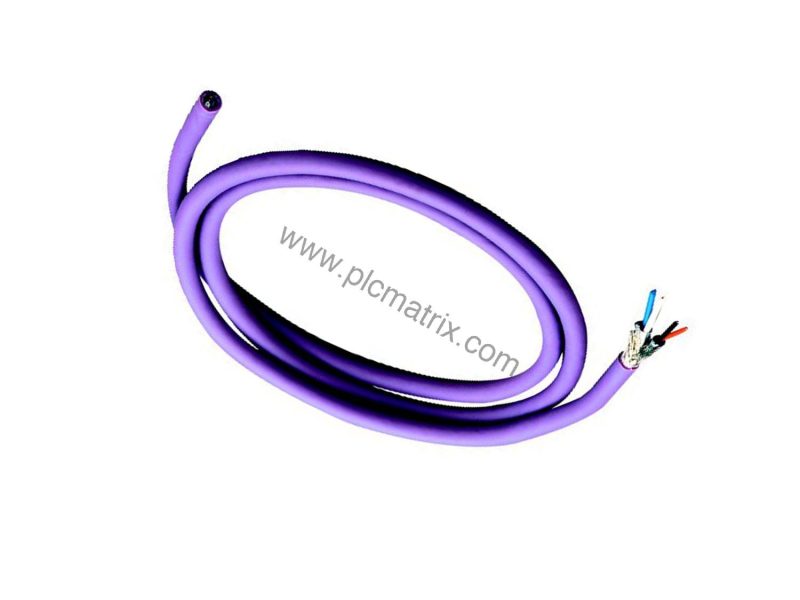

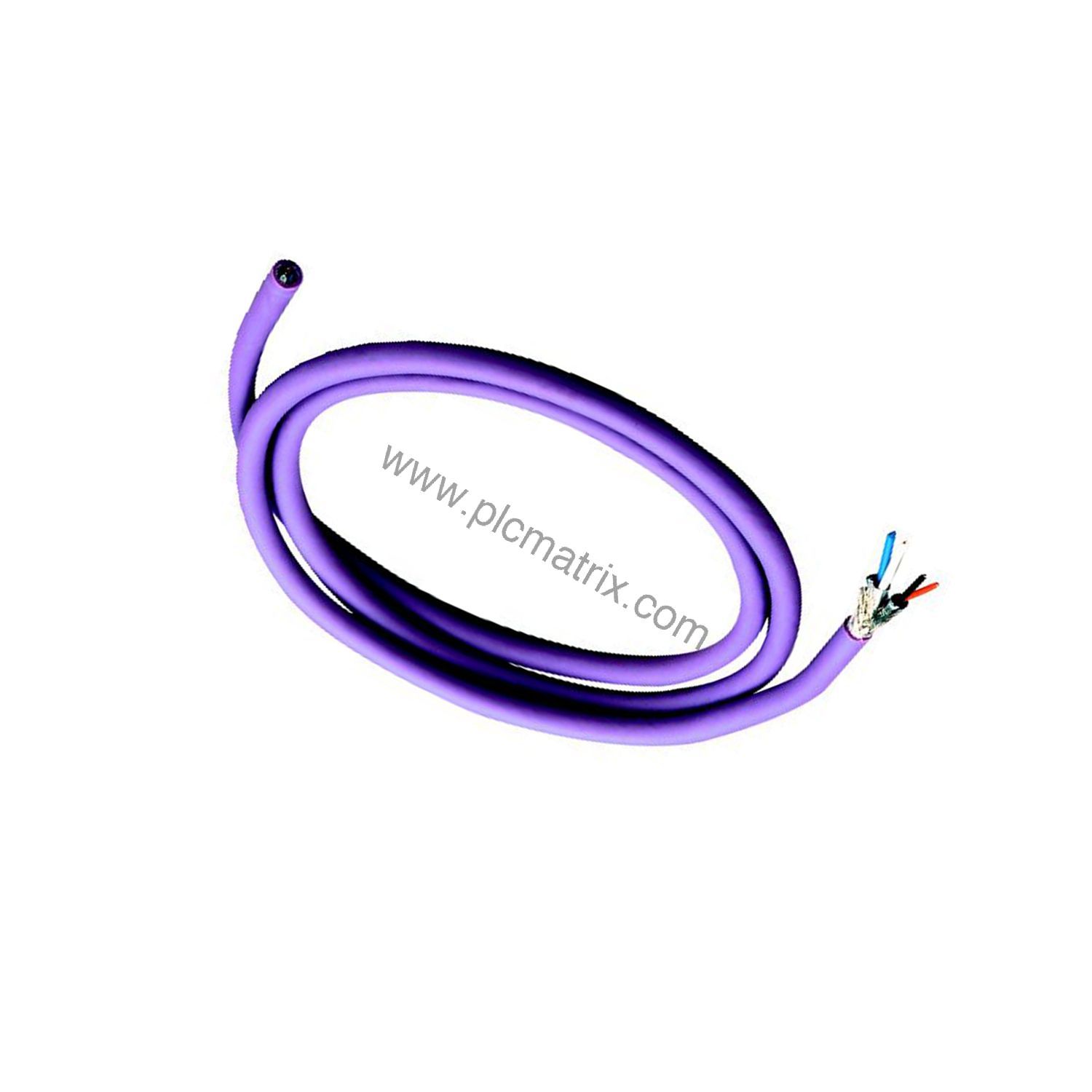

Schneider TSXCANCA50 CANopen Cable 50M LSZH for Industrial Networks

Product Overview

When your CANopen bus network demands reliable and safe wiring, the Schneider TSXCANCA50 delivers a 50-meter connecting cable designed for industrial environments. As part of the CANopen product series, this accessory serves as a dedicated CANopen cable for bus network integration. Its low smoke zero halogen (LSZH) jacket reduces toxic emissions during fire, making it suitable for confined or sensitive areas. The TSXCANCA50 carries CE marking, confirming compliance with applicable European directives, and carries an IP20 rating for basic protection against solid objects.

Technical Specifications

The TSXCANCA50 provides a cable length of exactly 50 meters, giving you ample reach for medium-distance bus connections. The product weighs 4.93 kg, making it manageable for installation. Each unit ships individually (package type PCE) with a package weight of 5.030 kg and dimensions of 21.500 cm height, 34.000 cm width, and 34.000 cm length. For bulk orders, the product also packs in a P12 package containing 24 units, with package dimensions of 105.000 cm height, 80.000 cm width, and 120.000 cm length, and a gross weight of 133.500 kg. These specifications help you plan storage and shipping logistics accurately.

Industry Applications

This CANopen cable is ideal for connecting drives, I/O modules, and controllers in manufacturing lines, packaging machinery, and material handling systems. The LSZH jacket makes it especially valuable in environments with strict fire safety requirements, such as tunnels, public transit, or clean rooms. When you need to extend or replace bus cabling in a Schneider CANopen network, the TSXCANCA50 provides a plug-and-play solution that maintains signal integrity over its full 50-meter length.

Installation & Setup Guidance

Before installation, verify that your CANopen network requires a 50-meter cable segment and that the IP20 rating is sufficient for your enclosure or cabinet environment. Route the cable away from high-voltage power lines to avoid electromagnetic interference. Secure the cable using appropriate strain relief at both ends to prevent mechanical stress on connectors. The LSZH jacket is flexible but should not be bent beyond its minimum bend radius (refer to the cable datasheet for exact value). After connecting, test the bus termination and node addressing per your system manual.

Maintenance & Reliability

Periodically inspect the TSXCANCA50 cable for physical damage, especially near connection points and areas exposed to movement. Keep the cable clean and free of debris to maintain its IP20 protection. In environments with vibration, use additional cable clamps to prevent wear. The LSZH material resists flame propagation, but regular inspection ensures long-term reliability. Replacing worn cables proactively reduces unplanned downtime and extends the life of your CANopen network.

Compatibility & Integration

The TSXCANCA50 is designed for CANopen bus networks and works with Schneider Electric CANopen-compatible devices, including drives, remote I/O, and controllers. It serves as a connecting cable accessory within the CANopen product series. Verify that your system's connectors match the cable's terminations before ordering. For integration with third-party CANopen devices, confirm compatibility with the CANopen standard.

Selection Guide & Purchasing Advice

When selecting the TSXCANCA50, confirm that your application requires a 50-meter cable length and that the LSZH jacket meets your facility's safety standards. Check the IP20 rating against your environmental conditions. BluePLC Industrial stocks this Schneider CANopen cable and can advise on availability and alternative lengths if needed. Contact our team to verify current lifecycle status and ensure the TSXCANCA50 fits your project timeline.
