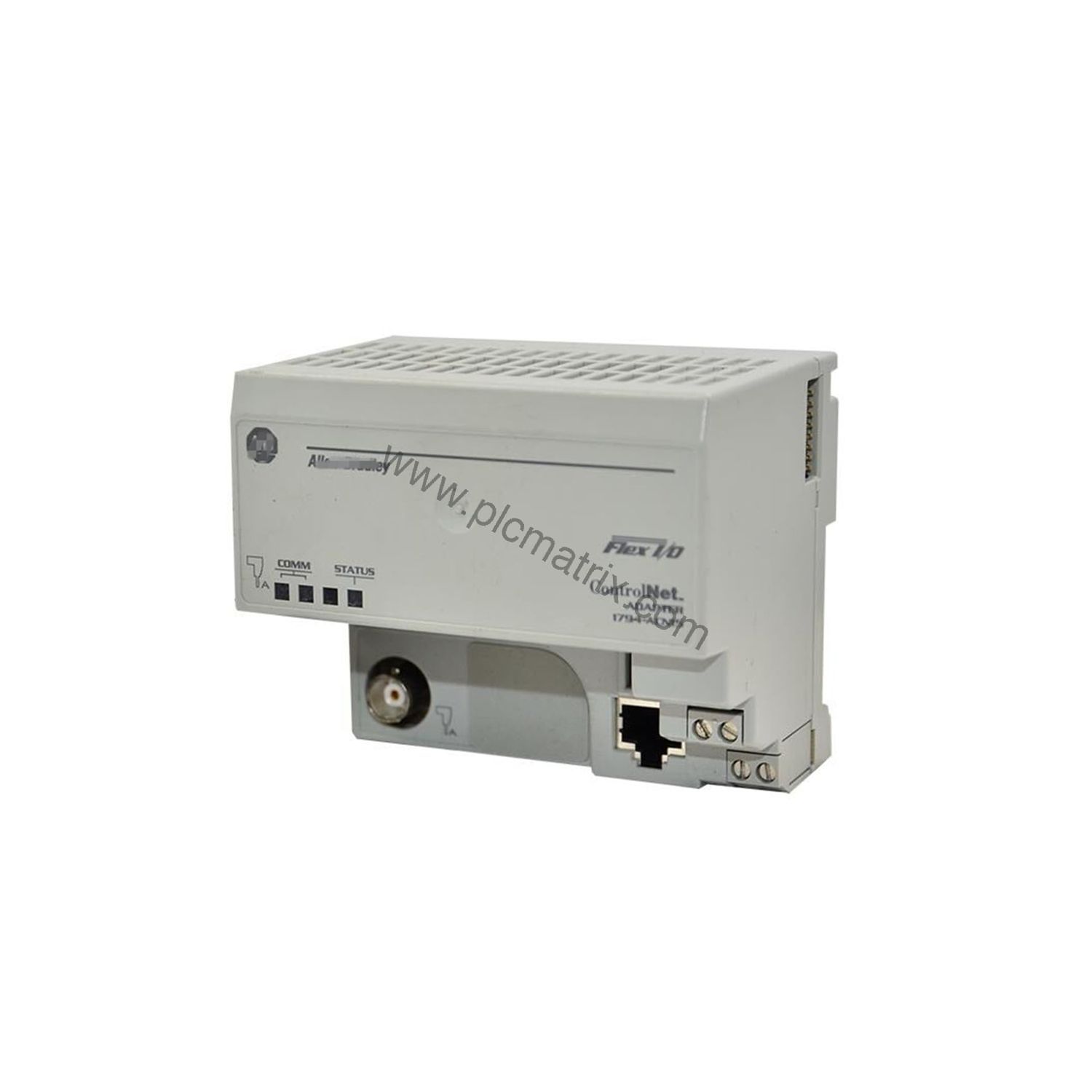

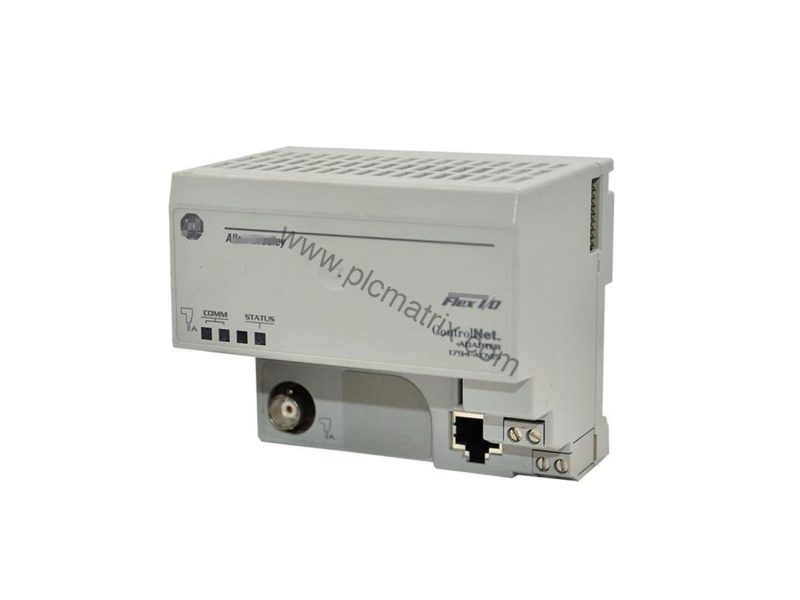

Allen-Bradley 1794-ASB2 Remote IO Adapter: Reliable 2-Module Flex I/O Control

Product Overview

When your distributed control system needs a compact and dependable remote I/O link, the Allen-Bradley 1794-ASB2 delivers. This Flex I/O adapter supports up to two I/O modules and operates on a 24V DC supply. With communication rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps, it integrates seamlessly into existing networks. The 1794-ASB2 is built for reliability, featuring red/green status indicators for power, adapter, and local connection status. Its open enclosure allows DIN rail or panel mounting, making it a versatile choice for maintenance engineers who value ease of service.

Technical Specifications

The 1794-ASB2 adapter requires a 24V DC power supply with an inrush surge current of 23 A for 2 ms per adapter. Its nominal input voltage is 24V DC, with an input voltage range of 19.2-31.2V DC (including 5% AC ripple). Power consumption is 4.2 W at 24V DC, with a maximum power dissipation of 3.4 W at 19.2V DC and thermal dissipation of 11.6 BTU/hr at 19.2V DC. The adapter draws a current load of 175 mA at 24V DC, with maximum draws of 450 mA and 330 mA. It provides a FlexBus output current of 640 mA at 5V DC. Isolation is basic type, with continuous 50V isolation and type-tested at 750V DC for 60 seconds between power-to-system, power-to-RIO, and RIO-to-system. The enclosure measures 3.4 x 2.7 x 2.7 inches and carries an IP20 rating.

Industry Applications

The 1794-ASB2 is ideal for manufacturing lines, material handling, and process control where distributed I/O reduces wiring costs. In a packaging plant, for example, the adapter can connect sensors and actuators near the machinery, minimizing cable runs and simplifying troubleshooting. Its 2-module capacity suits smaller stations, while the multiple communication rates allow integration with legacy and modern controllers. Maintenance engineers appreciate the status indicators for quick diagnostics, reducing downtime.

Installation & Setup Guidance

Mount the 1794-ASB2 on a DIN rail or panel using the open enclosure. Ensure the 24V DC power supply can handle the inrush surge of 23 A per adapter for 2 ms. Connect the FlexBus cable to the adjacent I/O modules, respecting the maximum output current of 640 mA. Use the red/green LEDs to verify power and communication status after power-up. Avoid using this adapter with classic PLC-5/15 and PLC-5/25 processors to prevent damage.

Maintenance & Reliability

Periodically inspect the 1794-ASB2 for dust accumulation on the enclosure and ensure the IP20-rated housing remains clean. Check the status indicators during routine rounds; any unexpected red light signals a fault that requires immediate attention. The adapter's low power dissipation (3.4 W max) reduces heat buildup, extending component life. For long-term reliability, verify that the input voltage stays within the 19.2-31.2V DC range, including ripple. This simple care routine minimizes unplanned downtime and keeps your system running.

Compatibility & Integration

The 1794-ASB2 works with Flex I/O modules and supports remote I/O communication at 57.6, 115.2, or 230.4 Kbps. It is compatible with Allen-Bradley PLC-5 (except 5/15 and 5/25) and SLC 500 processors, as well as ControlLogix systems via appropriate bridges. The adapter's basic isolation ensures reliable operation in electrically noisy environments. For integration, set the communication rate via hardware switches and verify the network configuration.

Selection Guide & Purchasing Advice

Before ordering the 1794-ASB2, confirm your system's power supply can deliver 24V DC with adequate surge capacity. Verify that your controller supports remote I/O at the chosen baud rate. For replacement or new installations, BluePLC Industrial offers this adapter with fast shipping and expert support. Contact BluePLC Industrial to confirm lifecycle status and availability.
