Schneider 170ENT11001 Modicon Momentum Ethernet TCP/IP Communication Adapter

Product Overview

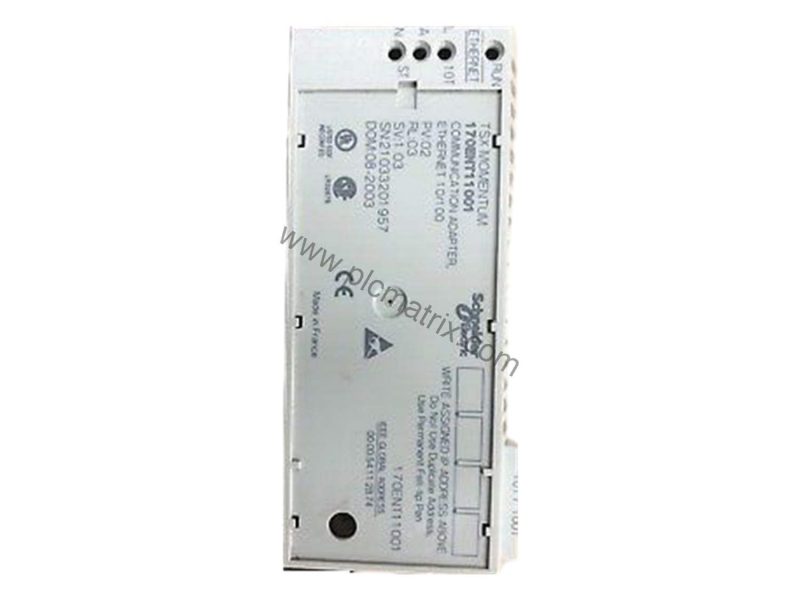

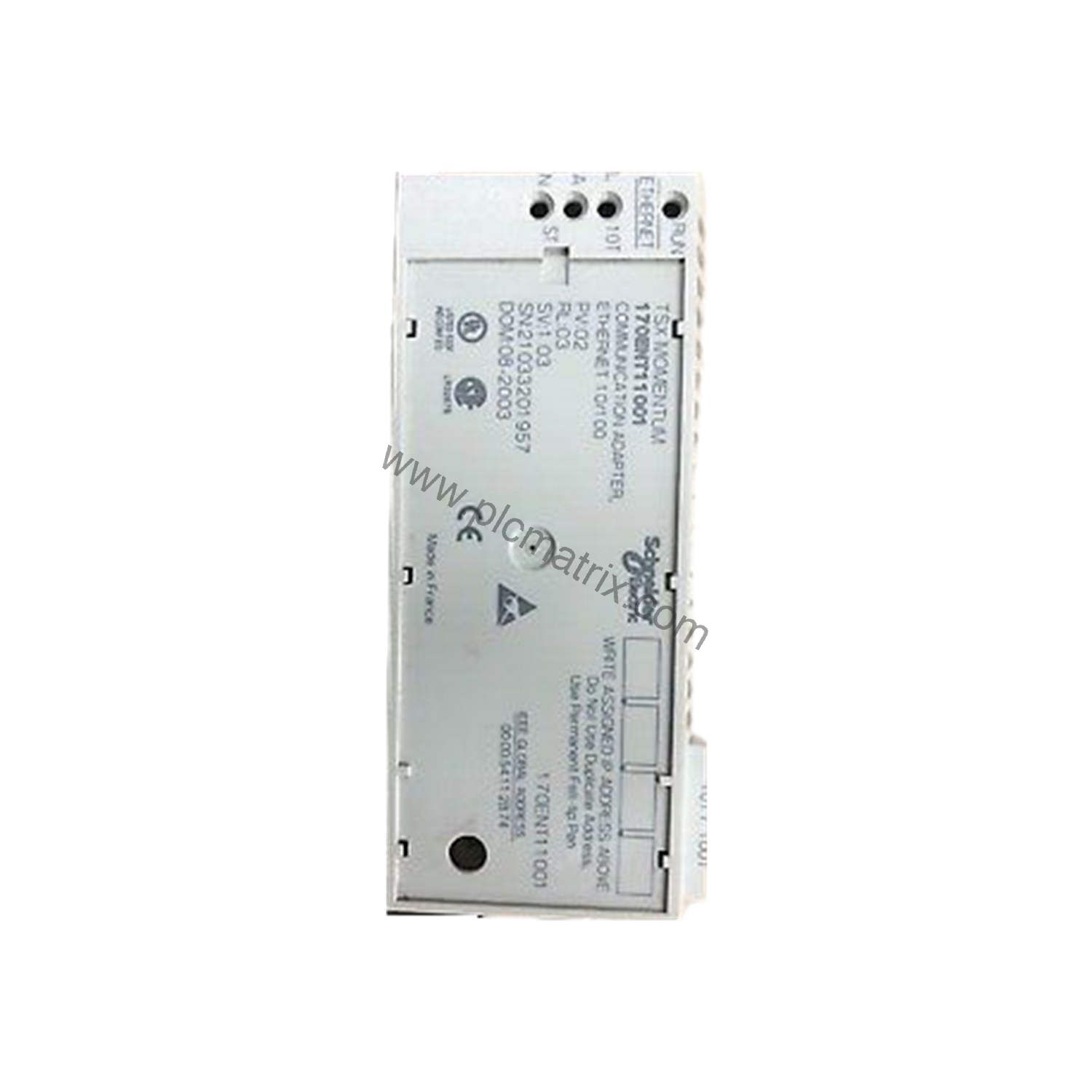

When industrial networks demand reliable and flexible communication, the Schneider 170ENT11001 Modicon Momentum Ethernet TCP/IP communication adapter delivers high-speed data transfer with dual baud rates of 10 or 100 megabits per second. This adapter supports both master/slave and peer-to-peer access methods, making it suitable for diverse automation architectures. Part of the Modicon Momentum platform, the 170ENT11001 ensures robust networking using shielded twisted pair cables and a standard RJ45 connector for 100BASE-TX Ethernet ports.

Technical Specifications

The 170ENT11001 operates with Ethernet TCP/IP protocol and uses CRC-32 control parameters to maintain data integrity. It supports star and multi-drop network topologies, accommodating up to 32 devices per segment with a maximum cable distance of 3,280 feet (1,000 meters) between devices. The adapter features four LED indicators—three green and one yellow—for clear status monitoring. Its IP20 protection class suits indoor industrial environments, with an ambient operating temperature range of 0 to 60°C and storage from -40 to 85°C, both in non-condensing conditions. The device weighs 1.00 lbs (0.45 kg) and includes a fail-safe state for enhanced reliability.

Industry Applications

In manufacturing plants, the 170ENT11001 enables seamless communication between PLCs, HMIs, and other networked devices over Ethernet TCP/IP. Its dual-speed capability (10/100 Mbit/s) allows integration into both legacy and modern networks. For distributed control systems, the peer-to-peer access method supports efficient data exchange between controllers without a dedicated master, reducing latency and improving system responsiveness. The adapter’s ability to handle up to 32 devices per segment makes it ideal for medium-scale automation cells.

Installation and Setup

Install the 170ENT11001 by connecting it to the Modicon Momentum base using the RJ45 port. Use shielded twisted pair cables to minimize electromagnetic interference. Configure IP parameters via a BOOTP server or assign a user-defined IP address. The adapter’s unique IEEE global address simplifies network identification. Ensure proper ventilation to maintain operating temperature within 0 to 60°C. No special tools are required for mounting, and the unit’s compact design fits standard industrial enclosures.

Maintenance and Reliability

Routine inspection of the 170ENT11001 involves checking LED status indicators for normal operation—green LEDs indicate active links, while the yellow LED signals activity. Periodically verify cable connections and replace damaged shielded twisted pair cables to maintain signal integrity. The adapter’s fail-safe state ensures outputs go to a predefined safe condition upon communication loss, reducing downtime. With no moving parts and a wide storage temperature range, the 170ENT11001 offers long service life in controlled environments.

Compatibility and Integration

The 170ENT11001 integrates seamlessly with the Modicon Momentum automation platform and supports Ethernet TCP/IP networks. It works with any device using 100BASE-TX Ethernet ports and RJ45 connectors. The adapter’s master/slave and peer-to-peer access methods make it compatible with both centralized and distributed control architectures. For addressing, it uses a unique IEEE global address and allows user-assigned IP addresses via BOOTP. This flexibility ensures straightforward integration into existing Schneider Electric systems or mixed-vendor environments.

Selection Guide and Purchasing Advice

Before purchasing the 170ENT11001, verify that your network requires Ethernet TCP/IP communication and 100BASE-TX ports. Confirm the number of devices per segment (up to 32) and cable distance (up to 3,280 feet). The adapter is CE marked and comes from France. For current availability and lifecycle status, contact plcmatrix.com, a trusted supplier of industrial automation components. They offer new, surplus, and obsolete parts from leading brands, ensuring you get the right solution for your application.
