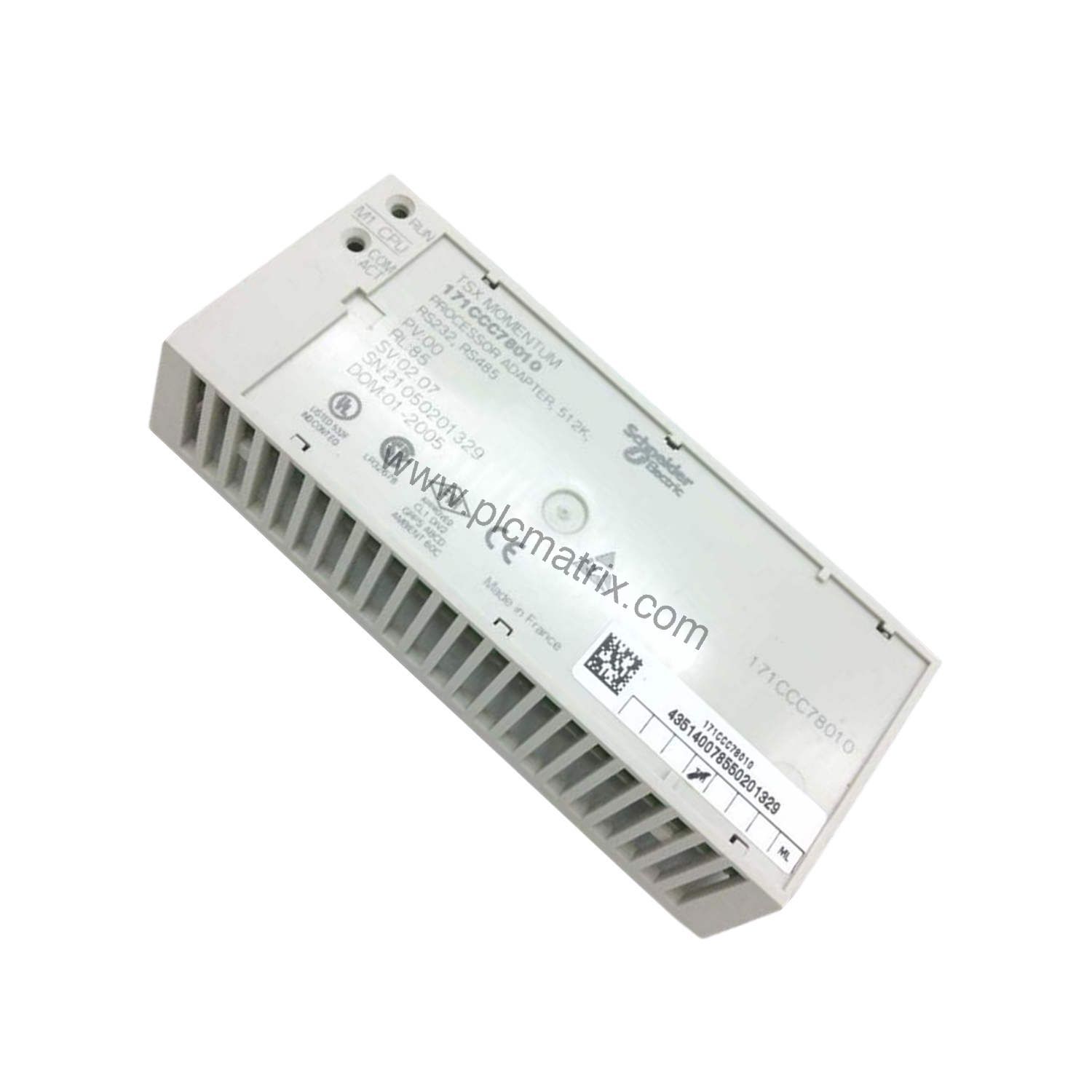

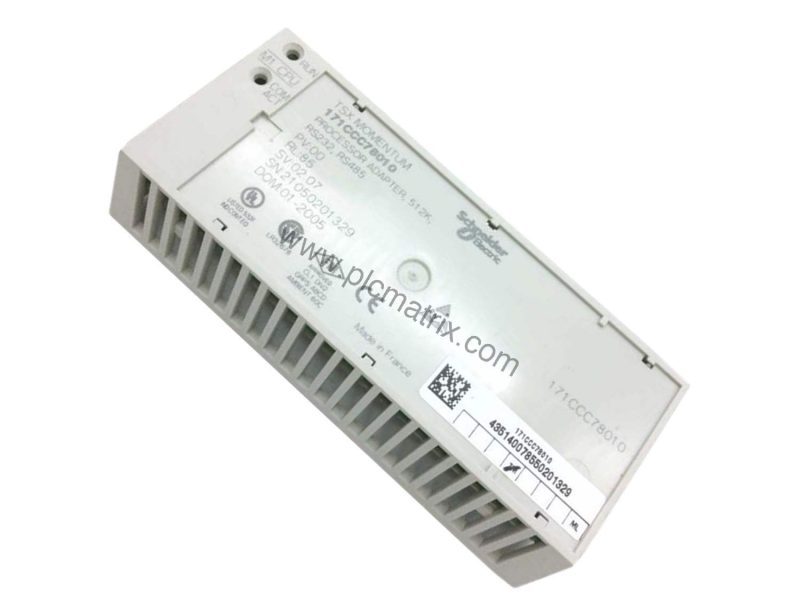

Schneider 171CCC78010 Modicon Momentum M1/M1E Processor Adapter Module

Introduction

When a manufacturing facility needs to integrate discrete and register I/O operations across a distributed control network, the Schneider 171CCC78010 Modicon Momentum processor adapter module delivers reliable Modbus-based communication. Part of the Modicon Momentum automation platform, this M1/M1E processor adaptor handles up to 8,192 bits of discrete I/O and 26,048 words of register I/O, making it suitable for medium-scale industrial processes.

Technical Specifications Breakdown

The 171CCC78010 operates with a 32 MHz clock frequency and a 16-bit word length, ensuring standard data handling in automation tasks. It features 512 KB of flash memory and 512 KB of RAM, providing ample storage for program and data memory—including 18 kB LL984, 240 kB IEC, and 24 kB data memory. The module achieves a scan time of 1 ms per kilobyte, enabling rapid processing of control logic.

Communication is supported via one non-isolated RS-232C port and one dedicated RS-485 Modbus port, allowing flexible connection to HMIs, drives, and other controllers. The rated supply voltage is 5.0 V DC +/-5 %, delivered through the Momentum I/O base. The unit weighs 0.093 lb (0.042 kg) and is housed in a Lexan enclosure.

Industry Applications

In a water treatment plant, the 171CCC78010 can manage both discrete sensors (level switches, flow meters) and register-based instruments (pH transmitters, pressure transducers) over a single Modbus network. Its 8,192-bit discrete I/O capacity accommodates numerous digital field devices, while the 26,048-word register I/O capacity handles analog and data-intensive signals. The wide operating temperature range of 0 to 60 °C allows installation in unconditioned control cabinets.

For a packaging line upgrade, the processor adapter module replaces older proprietary controllers, standardizing on Modbus communication. The 1 ms/kB scan time ensures that high-speed counting and registration tasks remain synchronized. The module's CE, cUL, UL, and FM Class 1 Division 2 certifications support deployment in hazardous locations.

Compatibility & Integration

The 171CCC78010 is designed for the Modicon Momentum automation platform and communicates natively via Modbus protocol. It is compatible with Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32 software. The processor is X86-based (Intel, AMD), ensuring broad support for legacy and current programming environments. The module draws power from the Momentum I/O base, simplifying wiring and reducing panel space.

Maintenance & Reliability

Routine inspection of the 171CCC78010 should focus on verifying proper power supply (5.0 V DC) and checking communication status via the RS-232C and RS-485 ports. The module's storage temperature range of -40 to 85 °C and relative humidity tolerance of 5 to 96 % (non-condensing) allow it to withstand harsh warehouse or transport conditions. Vibration resistance of 0.75 mm d.a. and shock resistance up to 15 gn peak ensure reliable operation in industrial environments with moderate mechanical stress.

Selection Guide & Purchasing Advice

Before ordering the 171CCC78010, confirm that your Momentum I/O base is compatible and that your control software supports the M1/M1E processor adaptor. Verify the required supply voltage (5.0 V DC) is available from the base. For current lifecycle status and stock availability, contact plcmatrix.com—a trusted supplier of Schneider Electric and other industrial automation components. The module ships in a single-unit package measuring 10.2 x 7.09 x 2.2 inches, weighing 7.6 oz (215 g) including packaging.
