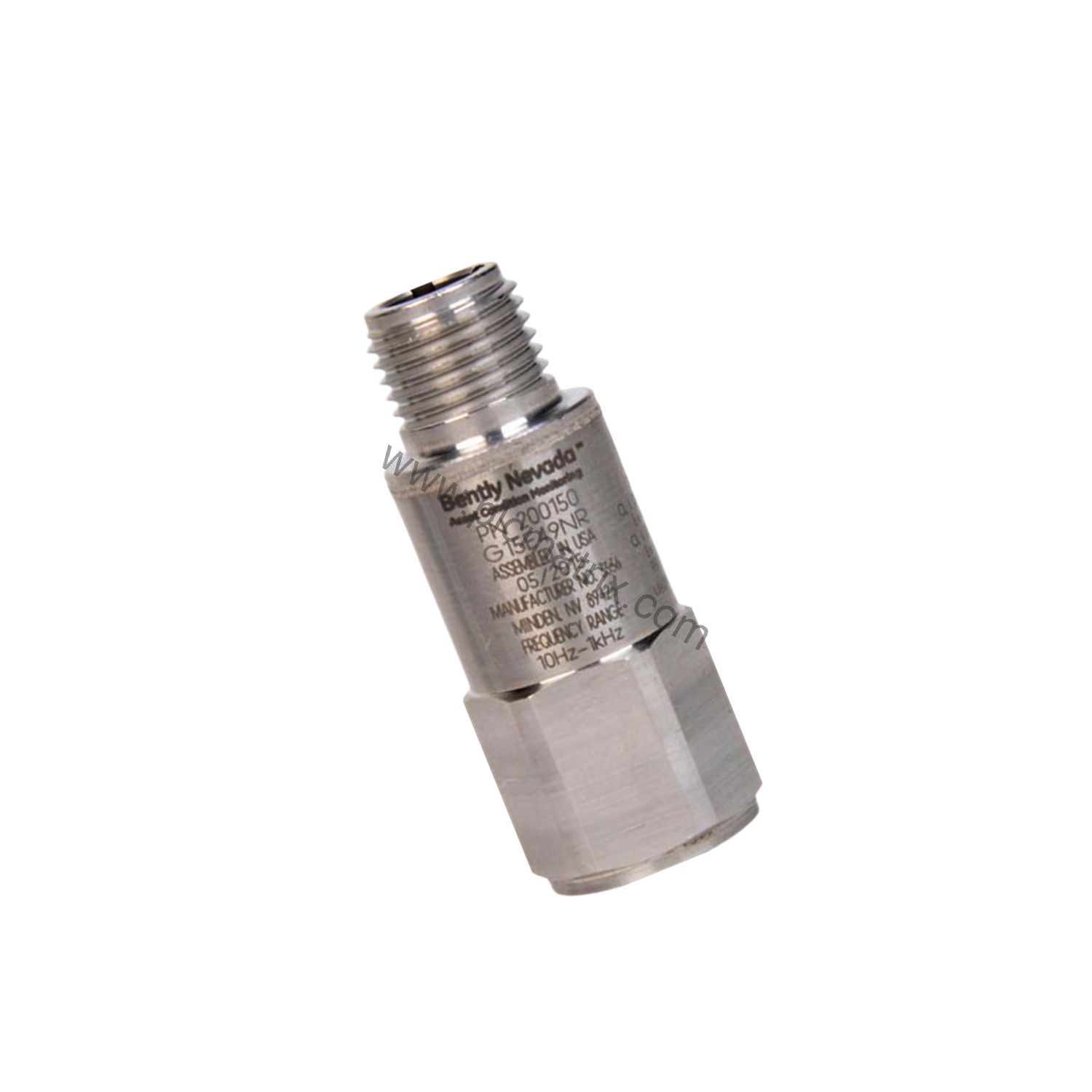

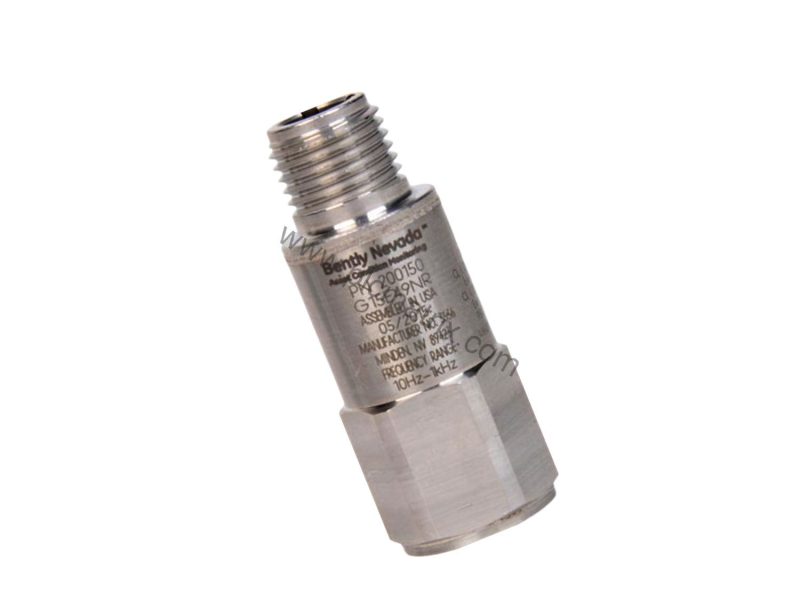

Bently Nevada 200150-09-05 General Purpose Accelerometer for Trendmaster Systems

Product Introduction

When unplanned downtime threatens production targets, the Bently Nevada 200150-09-05 provides reliable vibration data for critical machinery. This general-purpose accelerometer is designed for use with Trendmaster 2000 or Trendmaster Pro systems, making it a trusted choice for continuous monitoring in demanding industrial environments.

Manufactured by Bently Nevada in the USA, the 200150-09-05 combines proven sensing technology with robust construction. It features a ceramic shear sensing element and a 316L stainless steel housing, ensuring long-term stability even in harsh conditions. The unit carries multiple approvals including CSA, ATEX, and IECEx, simplifying global deployment.

Technical Specifications Breakdown

The 200150-09-05 delivers a mounted resonant frequency greater than 20 kHz (>1200 kcpm), enabling accurate measurement across a wide frequency range. Its quiescent current is less than 800 µA, indicating low power consumption suitable for continuous operation. The mounting stud option 09 provides a 3/8-24 to 3/4 NPT adapter with a 1-1/4 inch hex stud, offering flexible installation on various machine surfaces.

These specifications ensure the accelerometer captures vibration signals reliably while maintaining compatibility with existing Trendmaster infrastructure. The high resonant frequency minimizes measurement errors from structural resonances, giving engineers confidence in the data.

Industry Applications

In rotating machinery monitoring, the 200150-09-05 excels at detecting early signs of bearing wear, imbalance, and misalignment. Its robust construction and multiple approvals make it suitable for use in oil and gas, power generation, and chemical processing plants where safety certifications are mandatory.

For example, a refinery deploying this accelerometer on centrifugal pumps can continuously track vibration trends. The data feeds into the Trendmaster system, enabling predictive maintenance that reduces unplanned outages. The unit's hermetically sealed design withstands condensing humidity and temperature extremes, ensuring reliable performance in outdoor or washdown areas.

Installation & Setup Guidance

Mount the 200150-09-05 using the provided 3/8-24 female thread. Apply the recommended mounting torque of 2.7 to 6.8 N•m (2 to 5 ft•lbf) to ensure proper coupling without damaging the sensor. For best results, prepare a clean, flat surface on the machine and use a thin layer of coupling grease to enhance high-frequency response.

After mounting, allow a 24-hour cure time if adhesive mounting is used. Connect the accelerometer to the Trendmaster system using the appropriate cable, ensuring polarity is correct: SIG+ positive with respect to SIG-. Verify the output bias voltage is within the specified range before commissioning.

Maintenance & Reliability

The 200150-09-05 requires minimal routine maintenance due to its hermetically sealed design. Periodically inspect the cable and connector for damage, especially in high-vibration areas. Verify that the mounting stud remains tight and that no corrosion is present on the housing.

Given its rugged construction and low quiescent current draw, this accelerometer offers long service life with minimal intervention. For critical applications, schedule annual calibration checks to ensure sensitivity remains within tolerance. Always follow the manufacturer's guidelines for any maintenance procedures.

Selection Guide & Purchasing Advice

Before ordering the 200150-09-05, confirm your Trendmaster system version and channel type compatibility. This accelerometer is designed for use with standard acceleration-to-velocity channel types (-01 option). Verify the mounting stud option matches your installation requirements; the 09 option provides a 3/8-24 to 3/4 NPT adapter.

For complete technical specifications and current lifecycle status, please contact BluePLC Industrial. Our team can help you verify availability and recommend any necessary accessories such as mounting hardware or extension cables. We stock genuine Bently Nevada parts to support your predictive maintenance programs.
