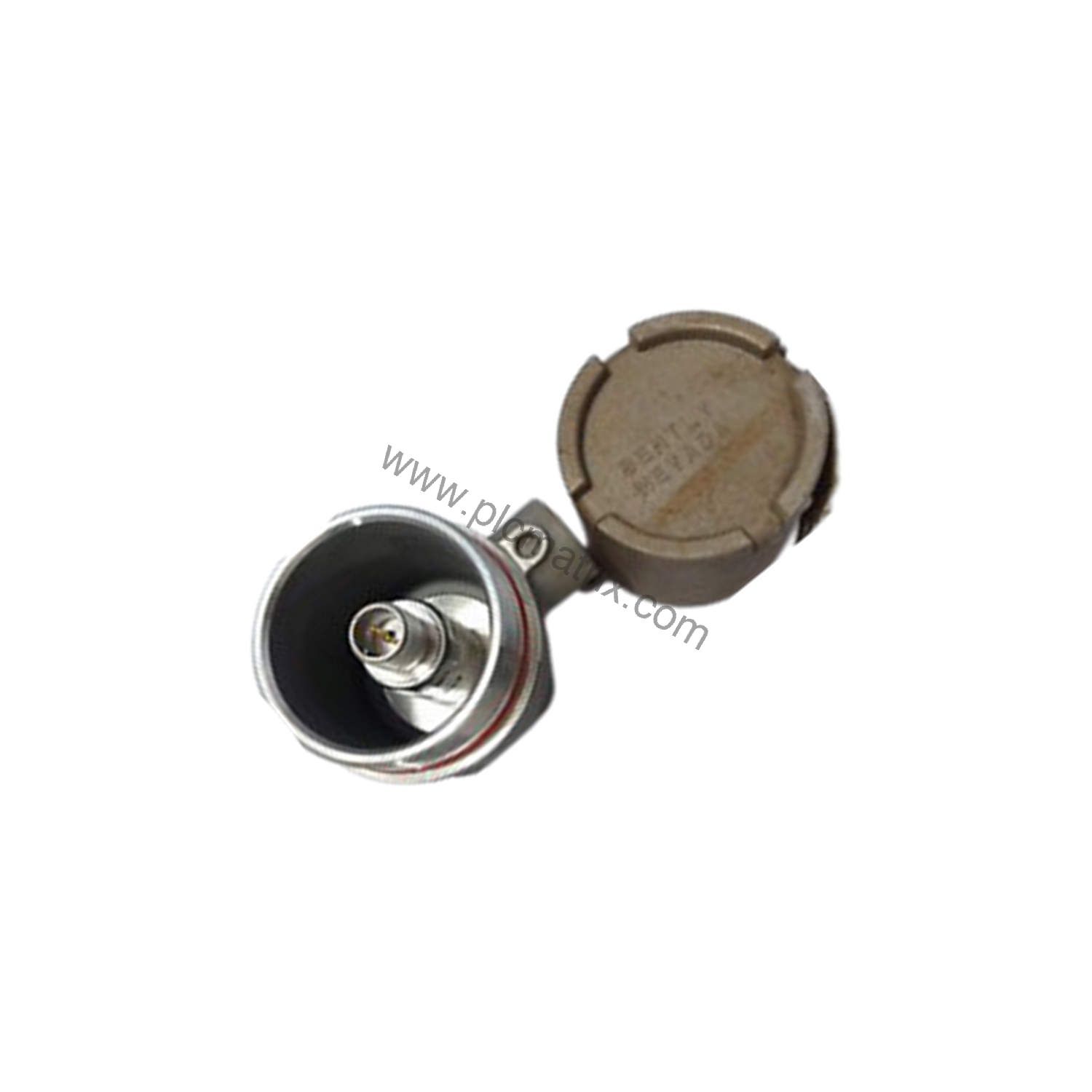

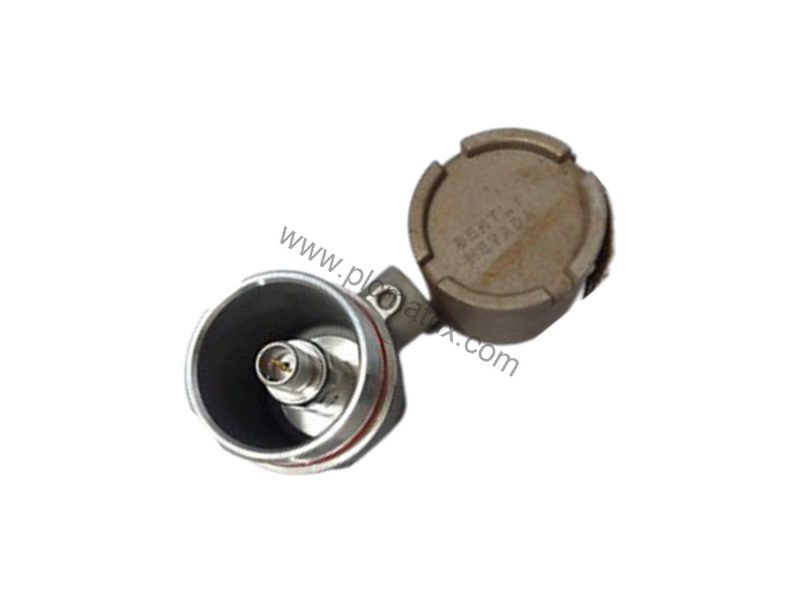

Bently Nevada 107770-02-02 Velocity Transducer Housing CENELEC Approved

Product Introduction

When you need reliable vibration monitoring in hazardous environments, the Bently Nevada 107770-02-02 provides a factory-integrated solution. This velocity transducer housing combines the proven 330500 Velomitor sensor with a 21128 housing, preinstalled and tested at the factory. It is CENELEC approved for Zone 1, Group IIC hazardous area applications, making it a strong choice for demanding industrial settings.

Technical Specifications Breakdown

Key specifications from the product data include:

Part Number: 107770-02-02

Model: Velocity Transducer Housing – CENELEC approved

Manufacturer: Bently Nevada

Mounting Thread Option: 3/4-14 NPT

Cable Exit Fitting Option: 1/2-14 NPT explosion-proof

Condition: New & Original in Factory Packing

Factory Warranty: 12 Months

The mounting thread option (02) specifies a 3/4-14 NPT thread, ensuring secure attachment to machinery. The cable exit fitting (also option 02) uses a 1/2-14 NPT explosion-proof design, which helps maintain safety in hazardous zones. This unit is rated for CENELEC Zone 1, Group IIC areas, meaning it can operate where explosive gases may be present.

Industry Applications

In petrochemical plants, refineries, and gas processing facilities, the 107770-02-02 delivers continuous velocity measurement for rotating equipment like pumps, compressors, and turbines. Its CENELEC approval allows installation in Zone 1 classified areas without additional enclosure modifications. For example, a refinery upgrading its vibration monitoring system can directly mount this transducer housing on critical pumps, reducing installation time and ensuring compliance with ATEX/IECEx requirements.

Installation & Setup Guidance

Mount the 107770-02-02 using the 3/4-14 NPT thread into a compatible mounting boss on the machine casing. Ensure the cable exit fitting (1/2-14 NPT) is properly sealed with approved explosion-proof conduit or cable glands. Follow the manufacturer's guidelines for cable type A or B per EN 60079-25 to maintain entity parameters. For Zone 0/1 installations, verify that the connected equipment meets the listed entity parameters. For Zone 2, ensure supply electrical parameters do not exceed the values in the provided tables.

Maintenance & Reliability

Routine inspection of the transducer housing and cable connections helps maintain reliable operation. Check for signs of corrosion or damage to the explosion-proof fitting. Since the unit is factory-sealed, no internal maintenance is required. Periodic verification of the mounting thread integrity and cable gland tightness is recommended. The 12-month factory warranty provides initial coverage, and Bently Nevada's support network can assist with long-term reliability.

Selection Guide & Purchasing Advice

Before ordering the 107770-02-02, confirm that your application requires a CENELEC-approved velocity transducer housing with 3/4-14 NPT mounting and 1/2-14 NPT cable exit. Verify that the hazardous area classification matches Zone 1, Group IIC. For complete technical specifications, please contact BluePLC Industrial. BluePLC Industrial supplies new, original factory-packed units with full warranty, ensuring you receive a genuine Bently Nevada product ready for installation.
