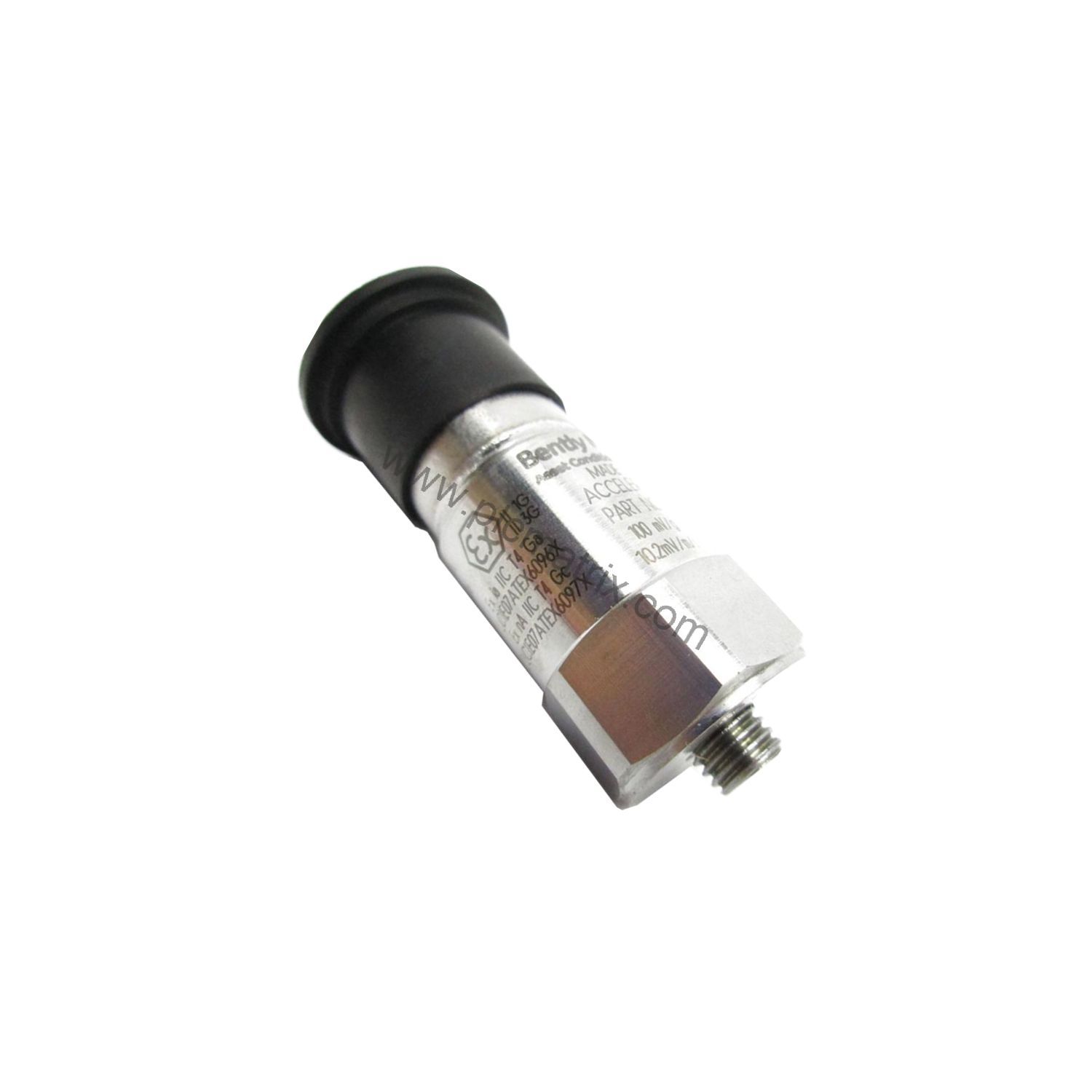

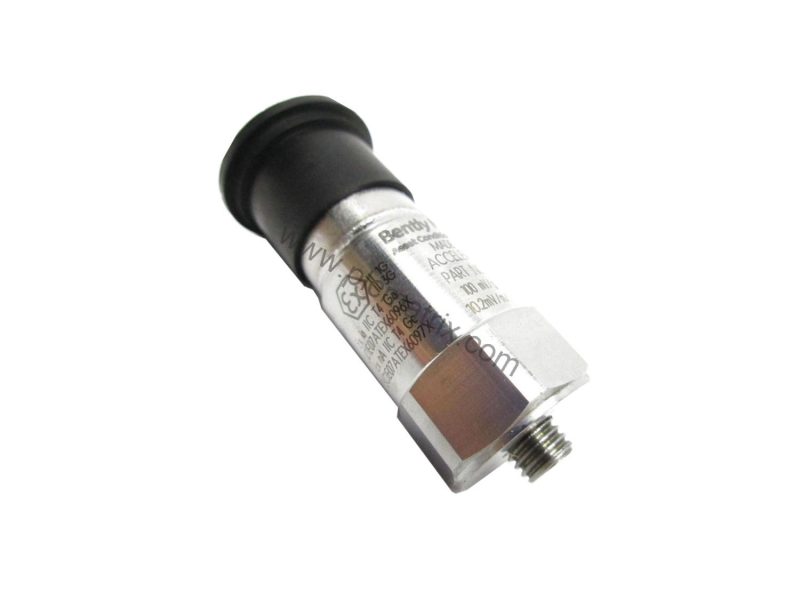

Bently Nevada 200350-01-00-CN Accelerometer: 100 mV/g Vibration Sensor

Product Introduction

When unexpected machine vibrations threaten uptime, the Bently Nevada 200350-01-00-CN accelerometer provides precise, reliable data for condition monitoring. This 200350 series sensor delivers a sensitivity of 100 mV/g ±20%, making it a trusted choice for maintenance engineers who demand consistent performance in harsh environments. Manufactured in the U.S.A., this accelerometer is built for long-term service.

Technical Specifications Breakdown

The 200350-01-00-CN offers a measurement range of ±50g, covering a wide spectrum of vibration amplitudes. Its frequency response spans 30–600,000 cpm (0.5–10,000 Hz) within ±3 dB, ensuring accurate readings from slow-speed to high-speed machinery. The output bias voltage sits between 8 and 12 VDC, while the excitation voltage range is 18 to 28 VDC with a constant current excitation of 2 to 20 mA. These parameters integrate seamlessly with standard data collectors and monitoring systems. The sensor's broadband electrical noise is exceptionally low at 350 μg (3,434 μm/s²) over 1–10 kHz, preserving signal integrity even in electrically noisy plant floors. Output impedance is less than 150 ohms, and the discharge time constant is ≥0.3 seconds.

Industry Applications

Maintenance engineers rely on the 200350-01-00-CN for rotating equipment such as pumps, motors, fans, and compressors. Its ceramic shear sensing element and welded hermetic stainless steel housing withstand temperatures from -65°F to +250°F (-54°C to +121°C) and 100% relative humidity (condensing, non-submerged). With an IP68 enclosure rating, this accelerometer performs reliably in washdown areas and dusty environments. The 2-pin Mil-C-5015 top connector simplifies cabling, while the ¼-28 to M6 x 1.00 stainless steel mounting stud ensures secure attachment. For predictive maintenance programs, the ±1% amplitude linearity and ≤7% transverse sensitivity guarantee trustworthy data for trend analysis.

Installation & Setup Guidance

Mount the 200350-01-00-CN using the provided ¼-28 female thread. Apply a mounting torque of 2 to 5 ft-lb (2.7 to 6.8 N-m) to ensure proper coupling without over-tightening. The sensor's hex size is 11/16" (1.8 cm), and its height is 1.65" (4.24 cm). After installation, allow a settling time of 2.0 seconds (within 1% of bias) before taking measurements. Verify electrical isolation greater than 10⁸ ohms from case to ground. For best results, mount on a clean, flat surface and use a thin layer of coupling grease if recommended by your system manual.

Maintenance & Reliability

This accelerometer requires minimal routine care. Periodically inspect the cable and connector for damage, especially in high-vibration or corrosive areas. The welded hermetic seal protects the internal ceramic element from moisture and contaminants, supporting long service intervals. Because the sensor is rated for 5,000 g pk shock survivability, it withstands occasional impacts during installation or machine events. For maintenance engineers focused on reducing downtime, the 200350-01-00-CN offers stable bias voltage and low noise over its operating life, reducing false alarms and unplanned inspections.

Selection Guide & Purchasing Advice

Before ordering the 200350-01-00-CN, confirm that your monitoring system accepts a 100 mV/g sensitivity with ±20% tolerance and requires constant current excitation between 2 and 20 mA. Verify the agency approvals option CN matches your regional requirements. BluePLC Industrial stocks this accelerometer and can assist with compatibility checks for your existing Bently Nevada or third-party systems. Contact us for current availability and lifecycle status before placing your order.
