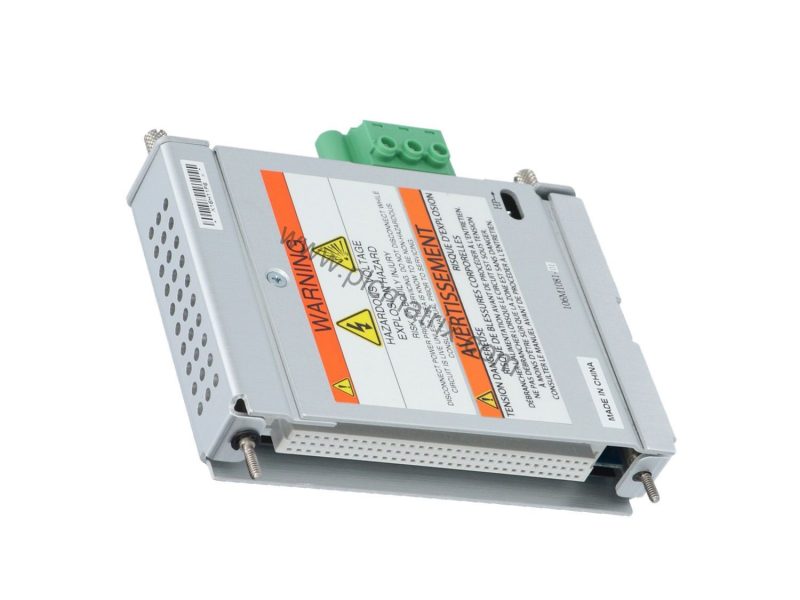

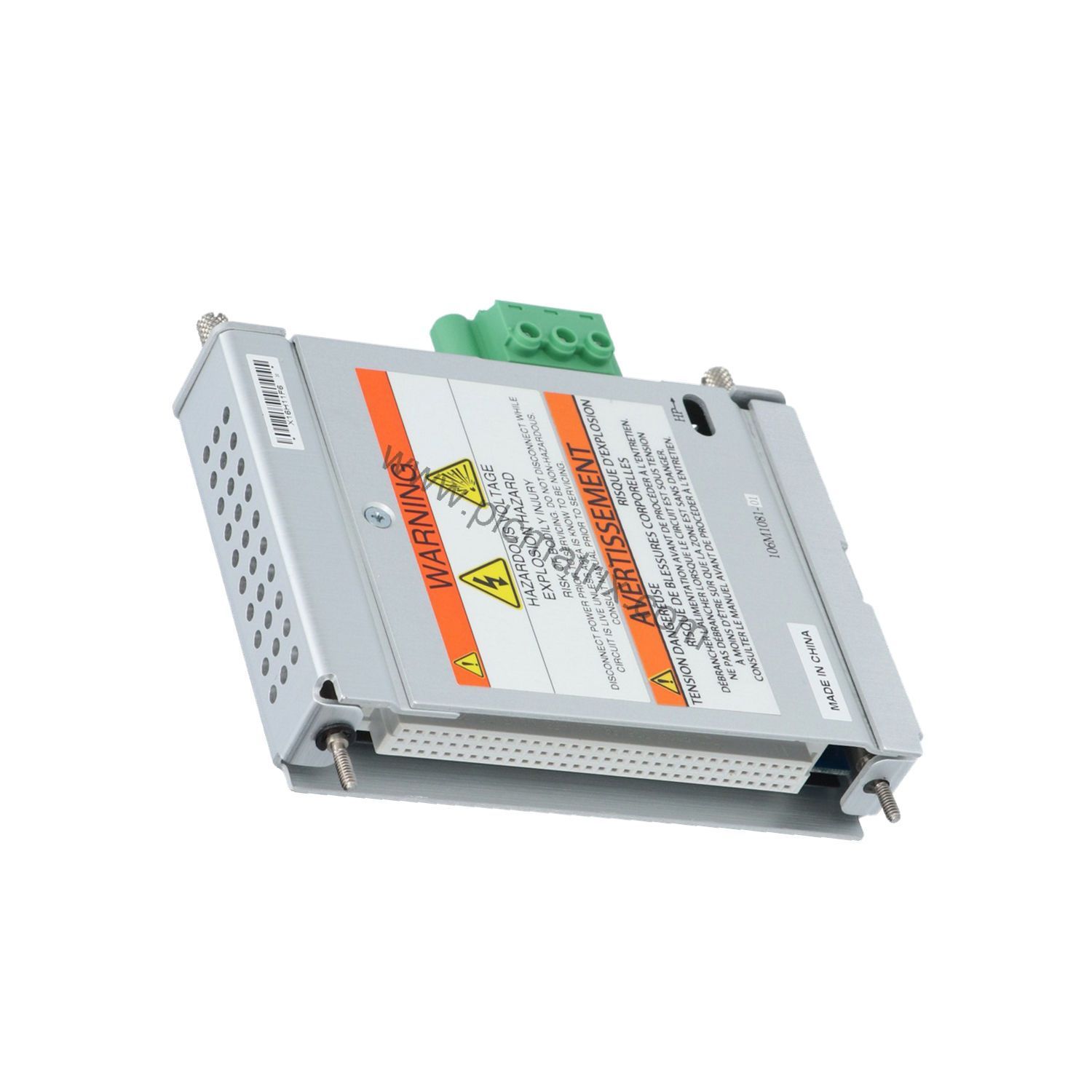

Bently Nevada 106M7607-01 Power Supply for DIN Rail Mounting

Product Overview

When reliable power conversion is critical for your industrial monitoring system, the Bently Nevada 106M7607-01 power supply delivers consistent performance. Designed for DIN rail mounting, this unit converts 100/240VAC input to a stable 24VDC output at 2.5 amps. It is part of the trusted Bently Nevada family, known for precision in vibration monitoring and machinery protection.

The 106M7607-01 is engineered to drive up to six monitors from a single power supply, making it a space-efficient solution for multi-channel setups. Its compact dimensions of 40 x 99 x 114 mm allow easy integration into existing panels without major rework.

Technical Specifications

The Bently Nevada 106M7607-01 offers the following key parameters based on available data:

Input Voltage: 100/240VAC

Output: 24VDC at 2.5A

Mounting: DIN rail

Operating Temperature: -25°C to 70°C (with ATEX certification)

Dimensions: 40 x 99 x 114 mm

Maximum Monitors Driven: 6

These specifications ensure the power supply meets the demands of continuous industrial operation. The wide input voltage range accommodates global power standards, while the regulated 24VDC output provides clean power for sensitive monitoring electronics.

Industry Applications

The 106M7607-01 is ideally suited for machinery health monitoring systems, where consistent power is essential for accurate vibration data collection. In oil and gas facilities, refineries, and power plants, this power supply supports Bently Nevada monitors that track rotating equipment like turbines, compressors, and pumps.

Its ATEX certification for operation from -25°C to 70°C makes it suitable for hazardous area installations where temperature extremes and safety compliance are mandatory. By powering up to six monitors from one unit, it reduces wiring complexity and cabinet space requirements.

Installation & Setup Guidance

Mount the 106M7607-01 on a standard DIN rail inside your control cabinet. Ensure adequate ventilation around the unit to maintain operating temperatures within the -25°C to 70°C range. Connect the 100/240VAC input through a properly rated circuit breaker. The 24VDC output terminals should be wired to your Bently Nevada monitors, observing correct polarity.

When driving multiple monitors, verify that the total current draw does not exceed 2.5A. The unit is designed to handle up to six monitors, but individual monitor specifications should be checked for exact load requirements. Use appropriate wire gauge for the current and distance to minimize voltage drop.

Maintenance & Reliability

Periodically inspect the 106M7607-01 for dust accumulation on the enclosure, which can affect heat dissipation. Verify that input and output connections remain tight and free from corrosion. The power supply has no user-serviceable internal components; any servicing should be performed by qualified personnel following manufacturer guidelines.

Given its role in powering critical monitoring equipment, regular functional testing of the output voltage under load is recommended. If the unit fails to power all connected monitors, check for overload conditions or input supply issues before replacement.

Selection Guide & Purchasing Advice

Before ordering the Bently Nevada 106M7607-01, confirm that your system requires a 24VDC power supply with 2.5A capacity. Verify the DIN rail type and available space in your cabinet (40 x 99 x 114 mm). If your application involves hazardous areas, the ATEX certification covers -25°C to 70°C operation.

For complete technical specifications for the 106M7607-01, please contact BluePLC Industrial. Our team can confirm current lifecycle status, availability, and compatibility with your existing Bently Nevada monitors. We stock genuine Bently Nevada parts to ensure reliable operation in your critical machinery protection systems.
