Allen-Bradley 20-750-2262D-2R PowerFlex 753 I/O Module for Cost-Efficient Control

Product Overview

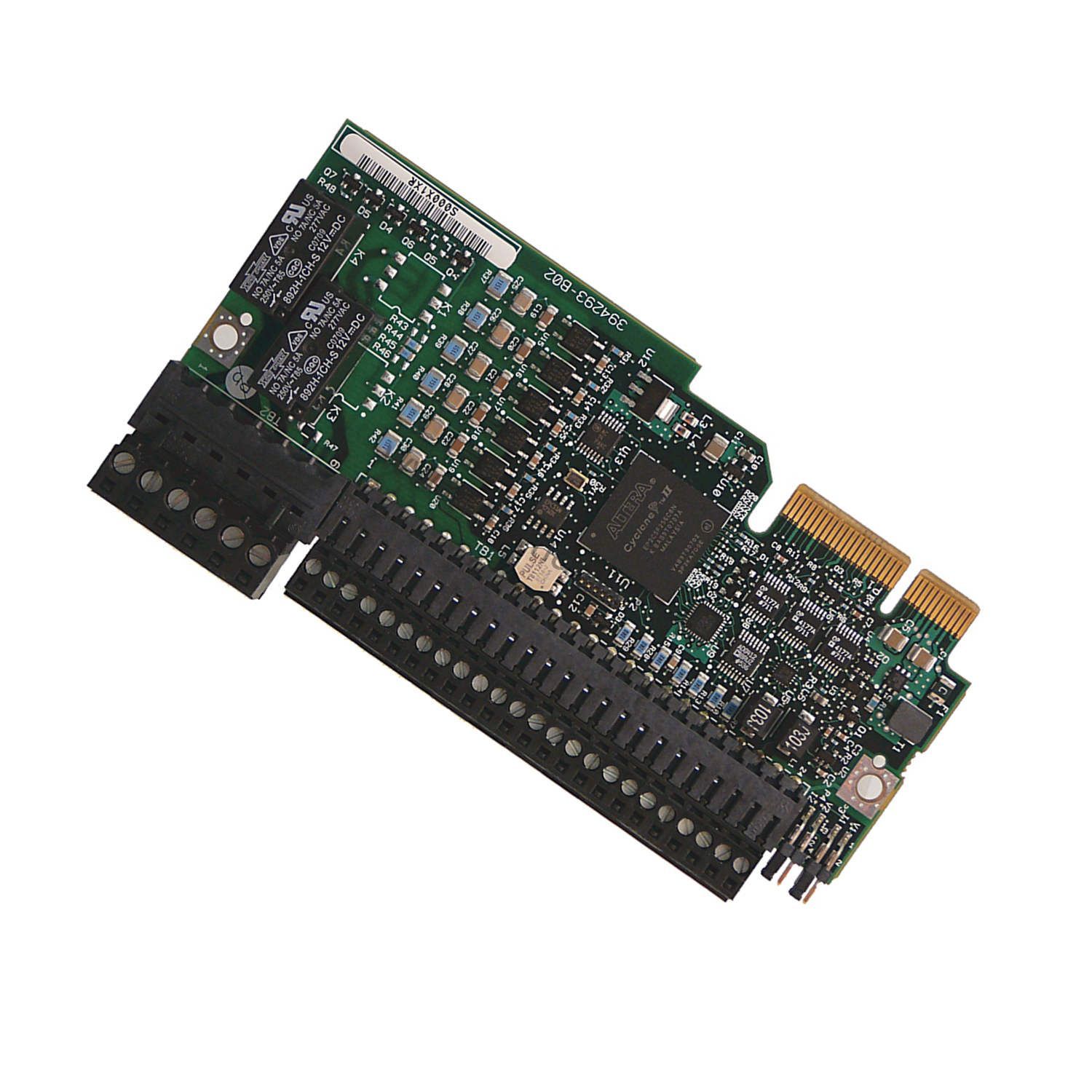

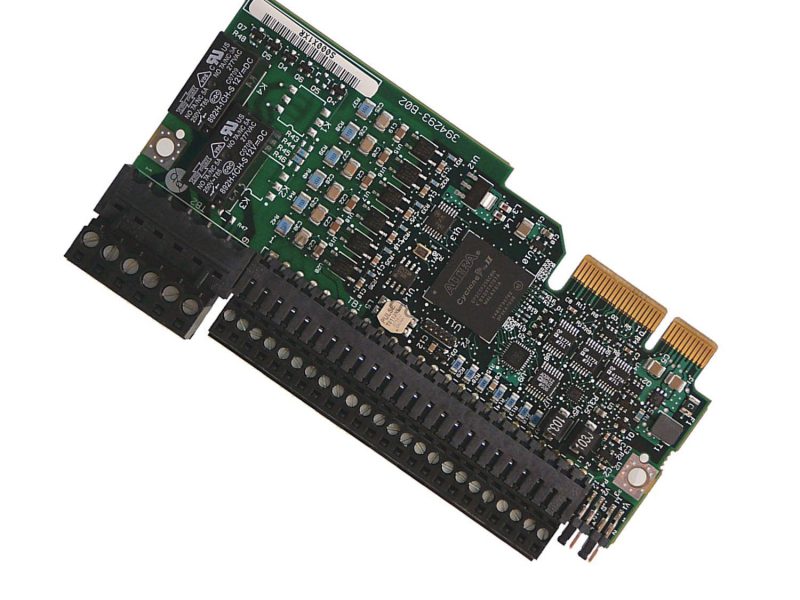

When industrial control systems demand reliable I/O expansion without breaking the budget, the Allen-Bradley 20-750-2262D-2R delivers. This I/O module from the PowerFlex 753 series integrates seamlessly into existing automation architectures, providing a cost-effective way to add 6 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs. Operating at 120V AC, it supports both voltage and current input modes along with 3-wire control, reducing the need for additional signal conditioning hardware. By choosing this module, you minimize upfront investment while maintaining the flexibility to adapt to diverse process requirements.

Technical Specifications

The 20-750-2262D-2R offers a robust set of parameters that directly impact total cost of ownership. Its 120V AC voltage rating means you can use standard industrial power supplies without expensive transformers. The module supports Ethernet/IP networks, enabling direct integration with modern PLCs and reducing wiring costs. With a valid port designation of Port 7, setup is straightforward, cutting installation labor. Environmental specs include an operating temperature range of 0 to 40 degrees Celsius and storage from -40 to 70 degrees Celsius, ensuring longevity in typical factory conditions. The maximum relative humidity of 80% non-condensing prevents corrosion-related failures, extending service life and reducing replacement expenses. Weighing just 5.00 lbs (2.27 kg), it is easy to handle and mount, lowering shipping and handling costs.

Industry Applications

This module excels in applications where cost control is paramount. In conveyor systems, the 6 digital inputs monitor sensor status while the 2 relay outputs actuate motor starters, all over a single Ethernet/IP connection. The analog inputs and outputs handle variable speed commands and feedback, eliminating the need for separate analog modules. In packaging lines, the 20-750-2262D-2R manages temperature and pressure signals, reducing system complexity and maintenance costs. Its 3-wire control support simplifies wiring for start/stop stations, cutting material and labor expenses.

Installation & Setup Guidance

To maximize cost efficiency, follow these setup tips. Mount the module in a clean, non-corrosive atmosphere as specified. Use shielded Ethernet cables for Port 7 to avoid noise-induced errors that cause downtime. Configure input modes (voltage or current) via the drive parameters to match your sensors—this avoids purchasing additional signal converters. For 3-wire control, connect the common, start, and stop wires directly to the digital inputs, reducing terminal block count. Always verify the 120V AC supply is stable to prevent module damage and unplanned replacement costs.

Maintenance & Reliability

Routine inspection of the 20-750-2262D-2R focuses on environmental factors. Check that ambient temperature stays within 0 to 40 degrees Celsius and humidity below 80% non-condensing. Clean any dust from the enclosure to maintain airflow. Because the module uses solid-state components, there are no mechanical contacts to wear out, lowering long-term maintenance expenses. If a fault occurs, the Ethernet/IP connection allows remote diagnostics, reducing troubleshooting time and labor costs. This reliability translates directly to higher uptime and lower total cost of ownership.

Compatibility & Integration

The 20-750-2262D-2R is designed specifically for the PowerFlex 753 series, ensuring seamless integration without additional adapters. Its Ethernet/IP support means it works with Allen-Bradley ControlLogix, CompactLogix, and other Ethernet/IP-capable controllers. This compatibility eliminates the need for proprietary gateways, saving both hardware and configuration costs. The module’s 6 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs provide a complete I/O mix, often replacing multiple separate modules and reducing inventory costs.

Selection Guide & Purchasing Advice

Before purchasing the 20-750-2262D-2R, verify your PowerFlex 753 drive firmware supports this option module. Confirm your application requires 120V AC input and Ethernet/IP networking. If you need additional I/O points, consider combining multiple modules—the compact design minimizes panel space. For current availability and lifecycle status, contact BluePLC Industrial. Our team can help you select the right configuration to optimize your budget and ensure long-term support. We stock genuine Allen-Bradley parts to keep your operations running cost-effectively.
