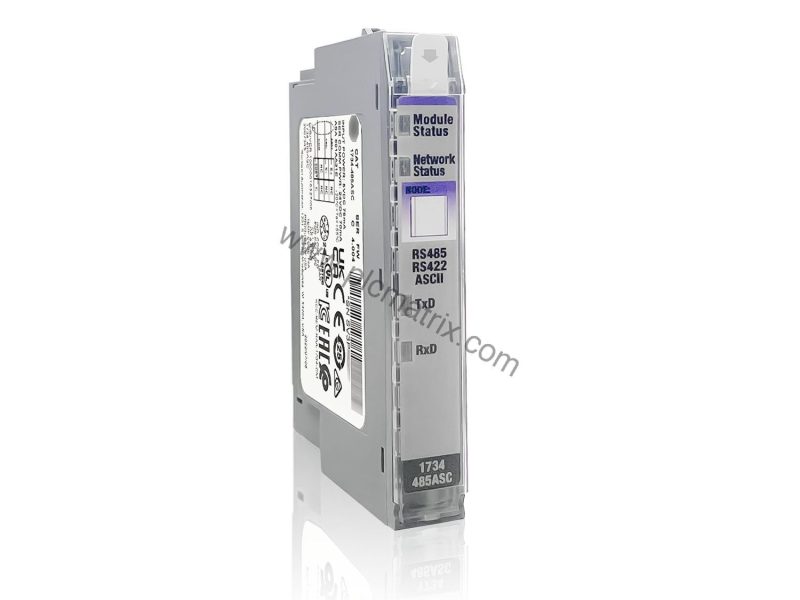

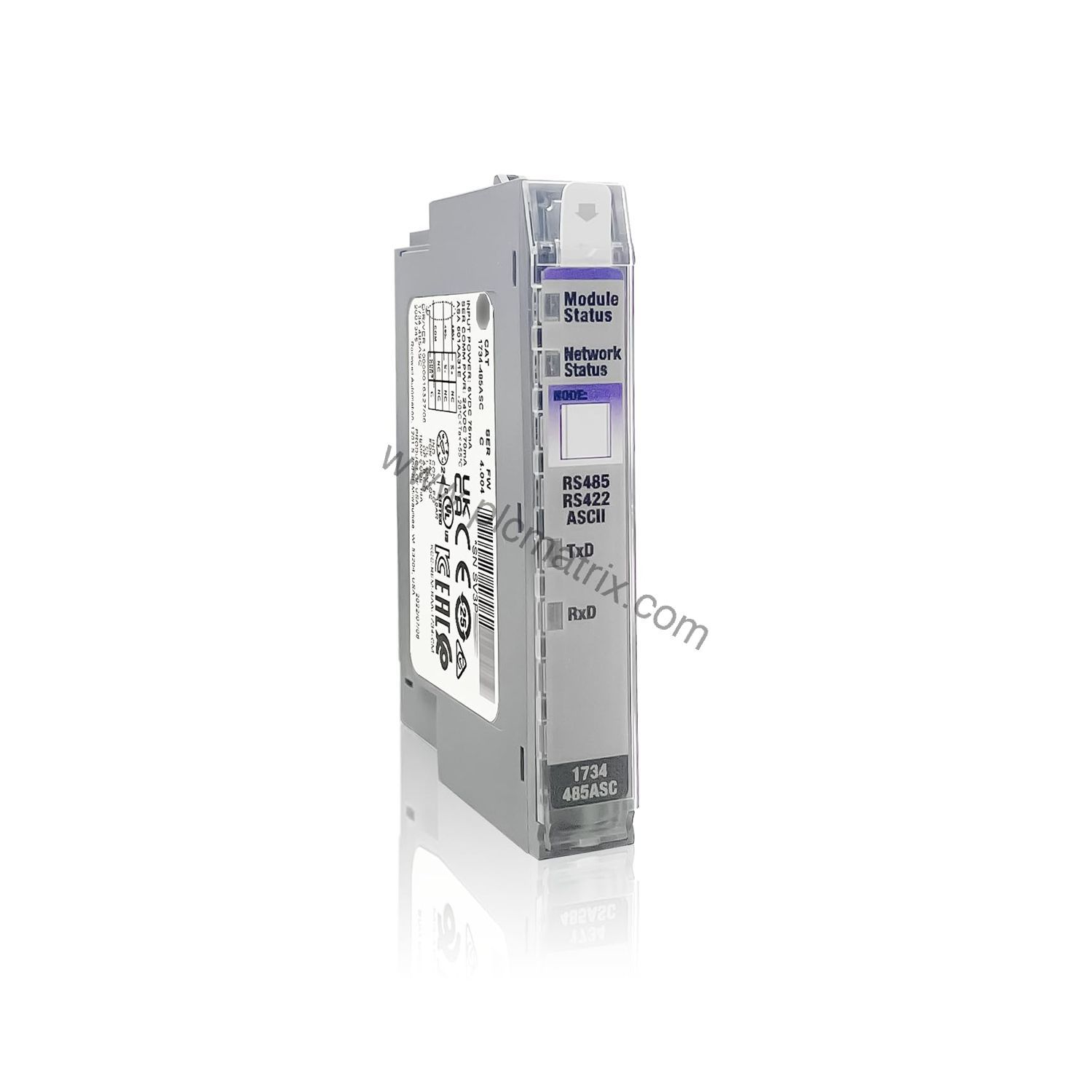

Allen-Bradley 1734-ACNR POINT I/O ControlNet Adapter Module Overview

Product Introduction

When industrial automation systems require reliable communication between controllers and I/O modules over a ControlNet network, the Allen-Bradley 1734-ACNR provides a robust interface. This POINT I/O ControlNet Adapter Module enables high-speed data transfers and supports redundant media for enhanced network reliability. Part of the POINT I/O series from Rockwell Automation, the 1734-ACNR is designed to streamline control solutions in demanding environments.

Technical Specifications Breakdown

The 1734-ACNR operates on a standard 24 Volts DC input voltage, ensuring compatibility with common industrial power supplies. Its inrush current is rated at 6 amps for 10 milliseconds, which helps manage startup surges without disrupting system stability. The module draws 425 milliamps of power and has a power consumption of 8 Watts, making it energy-efficient for continuous operation. Additionally, it provides 1000 milliamps of POINTBus current to power connected I/O modules, with a maximum backplane current of 1 Amp at 5 Volts DC. Reverse polarity protection safeguards the module against incorrect wiring, while power dissipation is 2.8 Watts at 28.8 Volts.

Industry Applications

In manufacturing facilities, the 1734-ACNR excels in applications requiring distributed I/O control. For example, in a packaging line, it can manage multiple digital and analog modules, supporting up to 25 direct connections for specialty modules and 5 rack-optimized connections for digital modules. This flexibility allows engineers to scale I/O capacity by adding up to 63 modules using multiple 1734-EP24DC power supplies. The adapter is particularly valuable in process industries where redundant media ensures uninterrupted communication, reducing downtime and maintenance costs.

Installation & Setup Guidance

When installing the 1734-ACNR, ensure the ControlNet network is properly terminated and that the adapter is mounted on a DIN rail within the POINT I/O chassis. Connect the 24 Volts DC power supply to the input terminals, observing polarity to leverage the reverse polarity protection. The adapter supports local communication via the network access port, simplifying diagnostics. For optimal performance, use only Series C or later I/O modules, as earlier versions are not compatible. Verify that the total POINTBus current draw does not exceed 1000 milliamps to prevent overloading.

Maintenance & Reliability

Routine inspection of the 1734-ACNR focuses on checking power supply connections and network cable integrity. The module's solid-state design minimizes wear, but environmental factors like dust and temperature extremes can affect performance. Ensure the operating environment stays within standard industrial conditions to extend service life. Because the adapter supports redundant media, network failures are mitigated, enhancing overall system reliability. Regular firmware updates, when available, can improve functionality and security.

Compatibility & Integration

The 1734-ACNR integrates seamlessly with ControlNet networks and is compatible with Rockwell Automation controllers such as ControlLogix and CompactLogix. It works with POINT I/O modules from Series C onward, including digital, analog, and specialty types. The adapter supports both rack-optimized and direct connections, allowing flexible I/O configurations. For expanded systems, multiple 1734-EP24DC power supplies can be used to support up to 63 modules, making it a scalable solution for growing automation needs.

Selection Guide & Purchasing Advice

Before purchasing the 1734-ACNR, verify that your ControlNet network infrastructure is in place and that your controller supports this adapter. Confirm that your I/O modules are Series C or later to ensure compatibility. Consider the total POINTBus current requirement of your system to avoid exceeding the 1000 milliamps limit. BluePLC Industrial offers the 1734-ACNR as a reliable choice for your automation projects. For complete technical specifications, please contact BluePLC Industrial.
