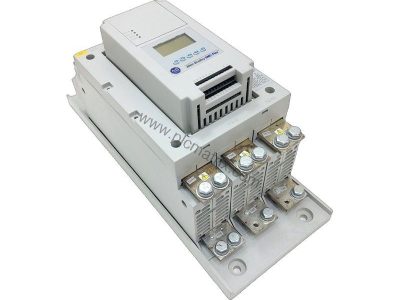

Allen-Bradley 153H-F108FCD-50 SMC-Flex Solid-State Controller with Circuit Breaker

When Motor Jams Threaten Production

In industrial environments, a sudden motor jam can cause locked-rotor currents and high mechanical stress, leading to winding failure and costly downtime. The Allen-Bradley 153H-F108FCD-50 SMC-Flex solid-state controller with circuit breaker is engineered to detect and respond to such faults before they escalate. It provides both jam protection and stall protection, with a programmable stall delay of 0 to 10 seconds. If the controller detects a jam, it shuts down immediately after the interruption period expires, alerting operators before the motor reaches full speed. This proactive approach minimizes damage to motors, controllers, and cabling.

Key Specifications and Performance

The 153H-F108FCD-50 operates on an input line voltage of 500-575V AC, 3-phase, at both 50 and 60 Hz. Its controller rating is 108 A and 75 HP at 460V AC, while the control voltage is 120V AC. The rated voltage is 500/575V AC, and the HP rating is 100. Housed in an IP65 (Type 4/12) enclosure, this unit is built for demanding environments where dust and water ingress are concerns. The integrated circuit breaker adds a layer of overcurrent protection, safeguarding the motor, controller, and power cabling against overheating caused by extreme overcurrent.

Real-World Applications

This solid-state controller is ideal for controlling 3-phase squirrel cage induction motors and wye-delta motors in applications such as conveyors, pumps, fans, and compressors. In a conveyor system, for example, the 153H-F108FCD-50 ensures smooth starting and stopping while protecting against jams that could halt production. Its IP65 enclosure makes it suitable for washdown environments or outdoor installations where moisture and dust are present. The combination of circuit breaker and solid-state control reduces the need for separate components, simplifying panel layout and wiring.

Installation and Setup Guidance

When installing the 153H-F108FCD-50, ensure the input line voltage matches the 500-575V AC, 3-phase supply at 50 or 60 Hz. The control voltage requires a separate 120V AC source. Mount the unit in a location that allows adequate airflow around the IP65 enclosure to prevent overheating. Follow the manufacturer's wiring diagrams for connecting the motor and control circuits. Verify that the short-circuit protection device is properly sized according to local codes and the motor's full-load current. After installation, program the stall protection delay (0-10 seconds) based on the motor's starting characteristics to avoid nuisance trips.

Maintenance and Reliability

Regular inspection of the 153H-F108FCD-50 is recommended to ensure reliable operation. Check the enclosure seals for integrity, especially in dusty or wet environments. Verify that all electrical connections remain tight and free of corrosion. Periodically test the jam and stall protection functions by simulating a fault condition (following safety procedures). Because this controller includes a circuit breaker, verify that the breaker trips correctly under overload conditions. Keeping the unit clean and ensuring proper ventilation will extend its service life and reduce unplanned downtime.

Selection Guide and Purchasing Advice

Before purchasing the 153H-F108FCD-50, confirm that your motor's full-load current does not exceed 108 A and that the input voltage matches your facility's 500-575V AC, 3-phase supply. The 75 HP rating at 460V AC provides a guideline for typical motor sizes, but always verify compatibility with your specific motor. The IP65 enclosure is suitable for indoor and outdoor installations where protection against water jets and dust is required. For current lifecycle status and availability, contact BluePLC Industrial. Our team can help you verify that this model meets your application requirements and provide information on any compatible accessories.
