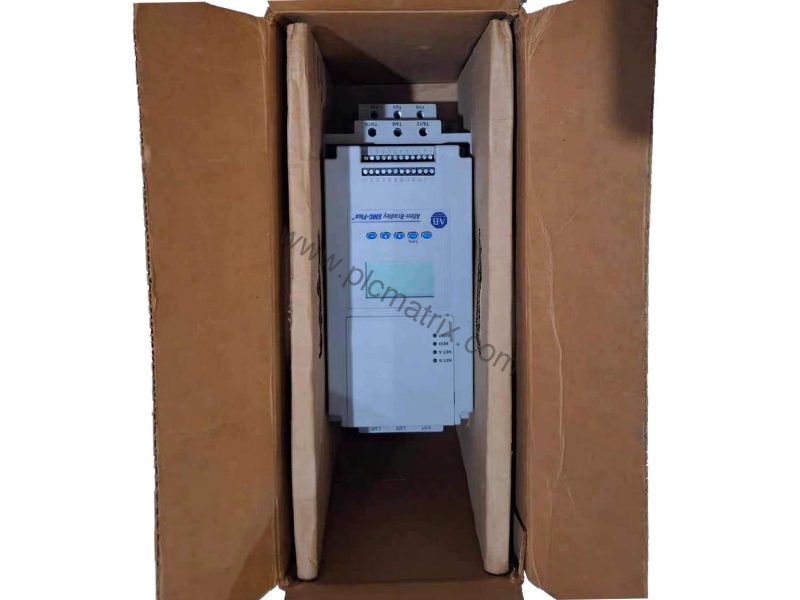

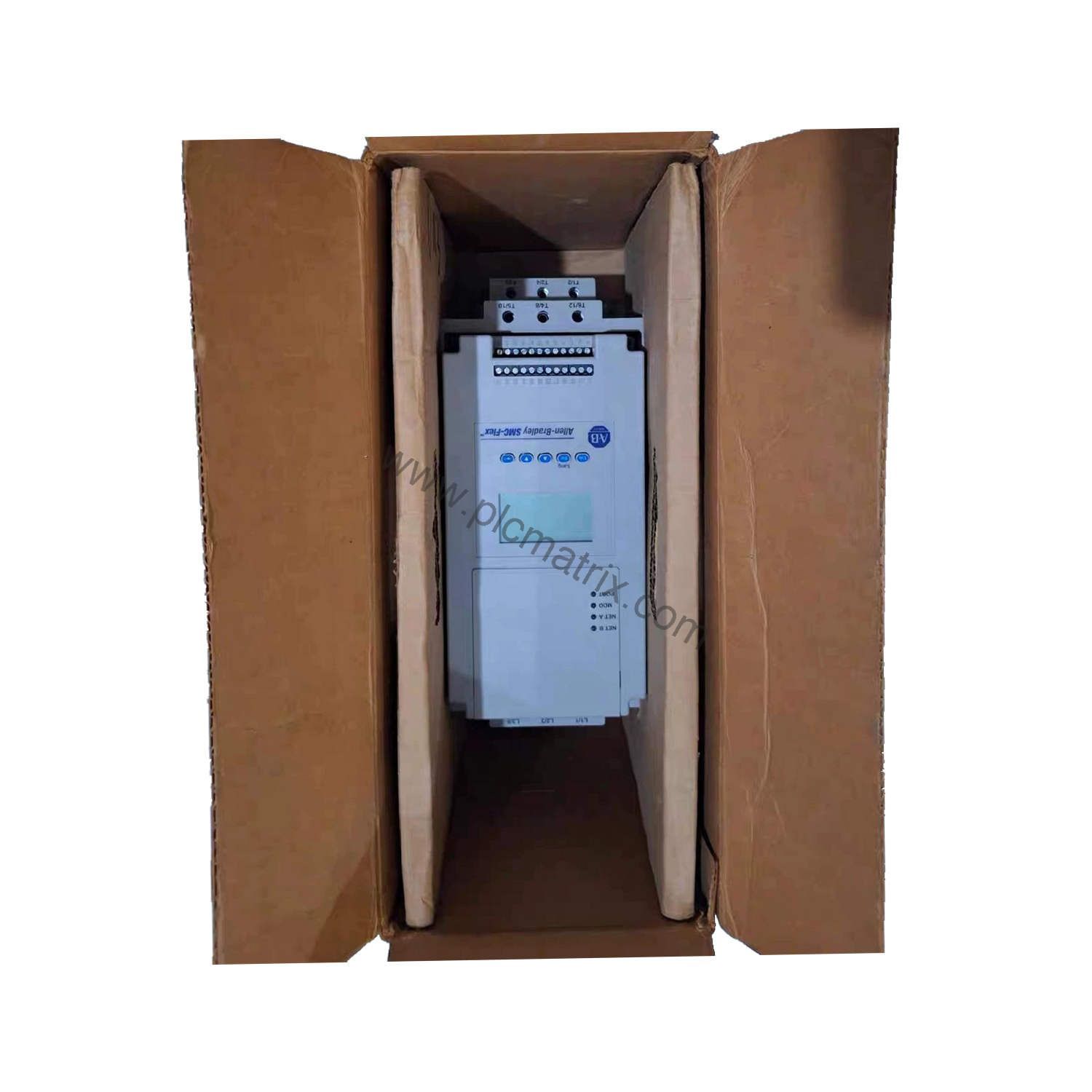

Allen-Bradley 150-F43NBDB SMC Flex Smart Motor Controller – Reliable Soft Starter

Product Overview

When your facility relies on three-phase AC motors, sudden starts and stops can cause mechanical stress, electrical surges, and costly downtime. The Allen-Bradley 150-F43NBDB SMC Flex Smart Motor Controller addresses these challenges head-on. As a solid-state soft starter, it gradually ramps up voltage and current, protecting both the motor and connected equipment. This model is part of the trusted SMC Flex family, designed for maintenance engineers who prioritize reliability and ease of service.

Technical Specifications

The 150-F43NBDB operates with an input line voltage of 200-460 VAC, three-phase, at 50/60 Hz. Its control voltage ranges from 100 to 240 VAC. For line-connected motors, the output current range is 8.6 to 43 amperes, delivering 10 to 30 HP at 60 Hz or 11 to 22 kW at 50 Hz. For delta-connected motors, the output current range expands to 14.9 to 74 amperes, providing 20 to 50 HP at 60 Hz or 22 to 37 kW at 50 Hz. These specifications ensure flexible integration with standard squirrel-cage induction motors or wye-delta six-lead motors.

Key Features for Maintenance Engineers

Built with serviceability in mind, the 150-F43NBDB includes an integrated backlit LCD and keypad for local programming and diagnostics. The controller offers multiple operating modes: Soft Start, Kickstart, Current Limit, Dual Ramp Start, Full Voltage Start, Coast, Soft Stop, and Smart Motor Braking. The built-in pump control feature includes an anti-backspin timer, reducing fluid hammer in pumping applications. Four fully programmable auxiliary contacts and one normally open plus one normally closed output contact simplify integration with existing control systems.

Industry Applications

This smart motor controller excels in environments where controlled acceleration and deceleration are critical. In water and wastewater treatment plants, the pump control function prevents pressure surges and extends pump life. In conveyor systems, the soft start reduces belt wear and product spillage. The metering function—tracking amps, volts, kW, kWh, power factor, and motor thermal capacity—provides valuable data for predictive maintenance and energy management.

Installation and Setup Guidance

The 150-F43NBDB is a panel-mounted device with an open-type enclosure. Mount it inside a protective cabinet that shields against corrosive gases, water, and airborne contaminants. Ensure adequate ventilation to manage heat dissipation. The controller uses an internal bypass contactor to minimize heat generation, allowing for a smaller enclosure. Connect line and load terminations per the provided wiring diagram. For initial setup, use the integrated keypad to configure start time (adjustable from 2 to 30 seconds) and current limit settings (150% to 450% of full load current).

Maintenance and Reliability

From a maintenance engineer's perspective, the 150-F43NBDB reduces service intervals through its solid-state design and electronic overload protection (I²t algorithm). The integrated DPI communication port allows connection to an optional HIM for remote monitoring. Regularly inspect the enclosure for dust and moisture. Verify that the alarm contacts (overload, underload, undervoltage, overvoltage, unbalance, jam, stall, ground fault) are properly configured to alert operators of potential issues. The selectable overload trip class (10, 15, or 20) lets you match protection to motor characteristics.

Selection Guide and Purchasing Advice

Before ordering, confirm your motor type (squirrel-cage or wye-delta six-lead) and verify that the voltage and current ratings align with your application. The 150-F43NBDB is rated for 43 A output current and 30 HP at 460 VAC. For complete technical specifications and current lifecycle status, please contact BluePLC Industrial. Our team can help you verify availability and recommend compatible accessories such as the optional HIM module or expansion communication modules.
