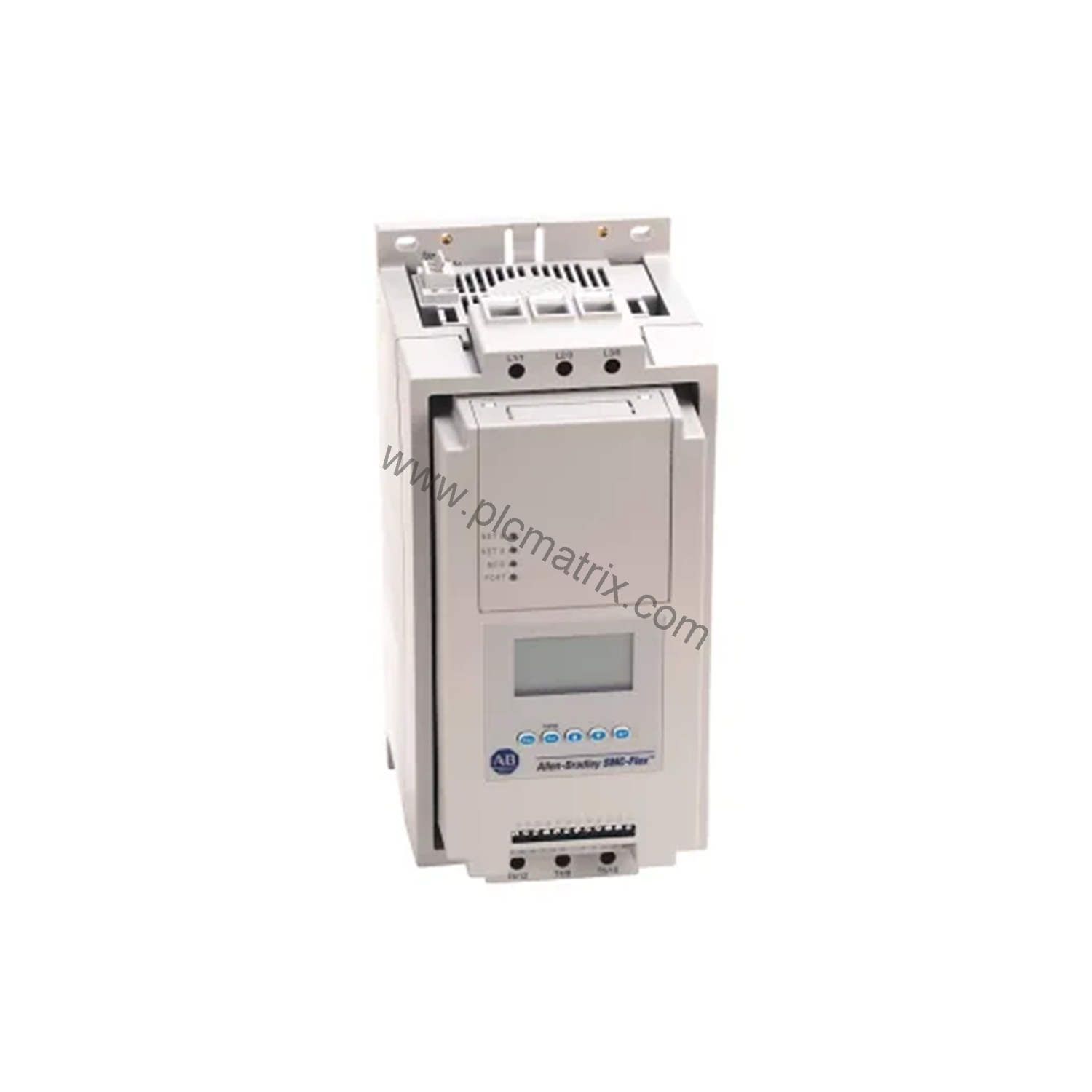

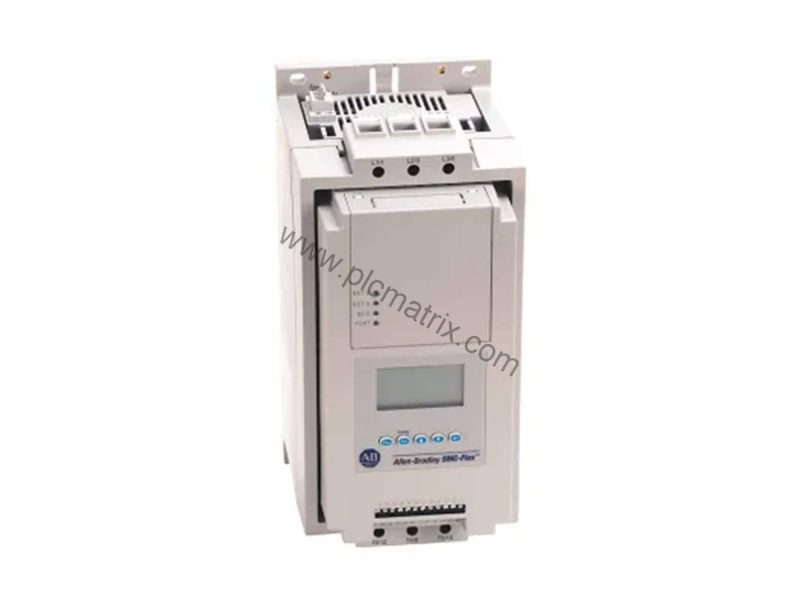

Allen-Bradley 150-F970NBEB SMC-Flex Open Smart Motor Controller, 970A

Product Overview

When a large industrial pump or fan motor requires controlled starting and stopping to prevent water hammer, mechanical stress, or electrical surges, the Allen-Bradley 150-F970NBEB SMC-Flex Open Smart Motor Controller provides a robust solution. This solid-state controller handles demanding applications with a rated current of 970 A and supports motors up to 800 HP at 460V AC, making it suitable for high-power pumping systems in water treatment, mining, and manufacturing facilities.

The 150-F970NBEB is part of the Bulletin 150 SMC-Flex family, known for reliable soft starting and stopping with advanced motor protection. Its open enclosure design allows integration into existing control panels, and the pump control option delivers optimized ramp profiles for fluid handling systems.

Technical Specifications

Key specifications for the 150-F970NBEB include:

Controller Type: Bulletin 150, Solid State Controller

Enclosure Type: Open

Input Line Voltage: 200..480V AC, 3-Phase, 50/60 Hz

Control Voltage: 100...120V AC

Control Options: Pump Control

The 200-480V AC three-phase input range allows flexible installation across global voltage standards, while the 100-120V AC control voltage simplifies integration with standard control systems. The pump control option provides tailored starting and stopping profiles to reduce pressure surges and extend equipment life.

Industry Applications

This motor controller excels in applications requiring precise control of large AC induction motors. In municipal water and wastewater plants, the 150-F970NBEB manages raw water intake pumps and effluent pumps, reducing mechanical shock during start-up and preventing pipeline damage from sudden pressure changes. In mining operations, it controls conveyor drives and slurry pumps, protecting belts and motors from excessive torque. The 800 HP rating at 460V AC makes it suitable for high-horsepower fans in cement plants and steel mills, where controlled acceleration reduces belt wear and electrical stress on the power grid.

Installation & Setup Guidance

Install the 150-F970NBEB in a clean, dry environment with adequate ventilation. Mount the open-style controller on a grounded metal backplate inside an enclosure that meets local electrical codes. Connect three-phase power to the input terminals, ensuring the line voltage matches the 200-480V AC range. Wire the control voltage (100-120V AC) to the appropriate terminals per the product manual. For pump control applications, configure the internal parameters to match the pump's starting torque requirements and desired acceleration time. Always follow the manufacturer's installation instructions and local safety regulations.

Maintenance & Reliability

Routine inspection of the 150-F970NBEB helps ensure long service life. Check for dust accumulation on heat sinks and clean with low-pressure compressed air if needed. Verify that all power and control connections remain tight, as thermal cycling can loosen terminals over time. Monitor the controller's LED indicators for fault codes and address any alarms promptly. The solid-state design eliminates moving parts, reducing wear compared to electromechanical starters. With proper installation and periodic checks, this controller delivers reliable performance in demanding industrial environments.

Selection Guide & Purchasing Advice

Before purchasing the 150-F970NBEB, verify that your motor's full-load current does not exceed 970 A and that your supply voltage falls within the 200-480V AC three-phase range. Confirm that the control system provides 100-120V AC for the control circuit. For pump applications, ensure the pump control option is selected, as this model includes it. BluePLC Industrial stocks the 150-F970NBEB and can provide current pricing and availability. Contact our team to discuss your application requirements and confirm compatibility with your existing system.
