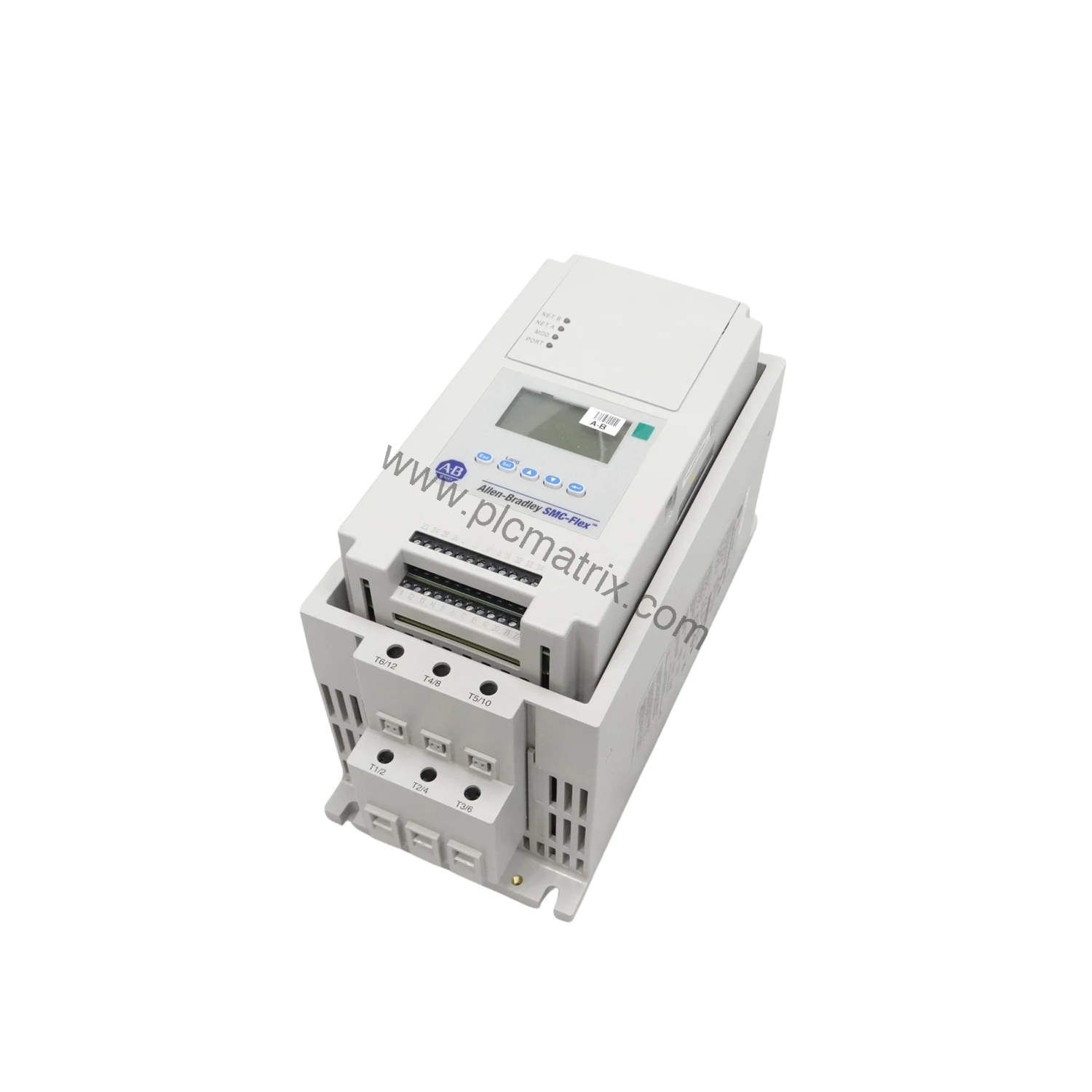

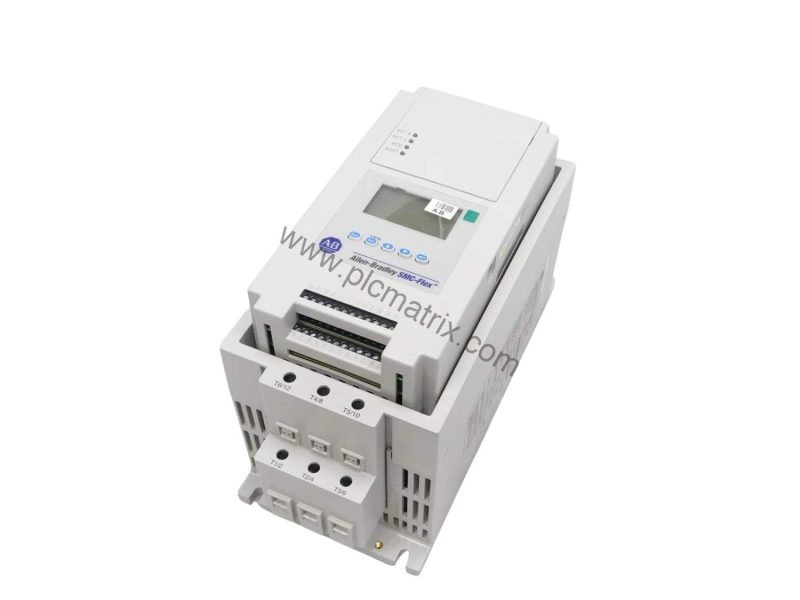

Allen-Bradley 150-F5FCD SMC-Flex Smart Motor Controller Guide

Product Introduction

When selecting a motor controller for demanding industrial environments, the Allen-Bradley 150-F5FCD SMC-Flex Smart Motor Controller offers a robust solution. Part of the Bulletin 150 SMC-Flex series, this unit provides a microprocessor-based start for three-phase induction motors. It features an IP65 (Type 4/12) enclosure, making it suitable for washdown and dusty locations. With a controller rating of 5 A and 3 Hp at 460V AC, it handles moderate loads efficiently.

Key Technical Specifications

The 150-F5FCD operates on an input line voltage of 500-575V AC, three-phase, at 50 and 60 Hz. This wide voltage range allows integration into various global power systems. The control voltage is 100-240V AC, compatible with standard control circuits for units rated 5-480 A. The controller also includes built-in electronic motor overload protection and a SCR bypass for reduced heat generation during run mode.

Industry Applications

This controller excels in applications requiring reliable starting and stopping of three-phase motors. Common uses include conveyors, pumps, and fans in manufacturing and processing plants. The IP65 enclosure protects against dust and water jets, making it ideal for food and beverage, pharmaceutical, and automotive industries. The programmable start modes—such as Soft Start and Current Limit Start—reduce mechanical stress and electrical surges, extending equipment life.

Installation & Setup Guidance

Install the 150-F5FCD in a location that allows adequate airflow for the 20VA heatsink fan. Mount the unit securely using the provided enclosure provisions. Connect the three-phase input line voltage (500-575V AC) to the power circuit, ensuring proper phase rotation. Use a 20A Class J fuse for branch circuit protection. The control voltage (100-240V AC) connects to the control terminals. Verify all connections before applying power. For detailed wiring diagrams, refer to the product manual.

Maintenance & Reliability

Regularly inspect the enclosure seals and heatsink fan for debris buildup. The IP65 rating ensures protection against contaminants, but periodic cleaning of the exterior with a damp cloth maintains thermal performance. Check the auxiliary relay contacts (rated 3A at 120V AC and 1.5A at 240V AC) for wear if used frequently. The controller's built-in diagnostics, such as voltage unbalance and jam detection, help identify issues early. Follow the manufacturer's guidelines for routine testing.

Selection Guide & Purchasing Advice

Before purchasing the 150-F5FCD, verify that your motor's full-load current does not exceed 5 A and that the supply voltage matches the 500-575V AC input range. Consider the required start modes and whether optional communication modules are needed via the DPI port. BluePLC Industrial stocks this model and can assist with compatibility checks. For complete technical specifications, contact BluePLC Industrial.
