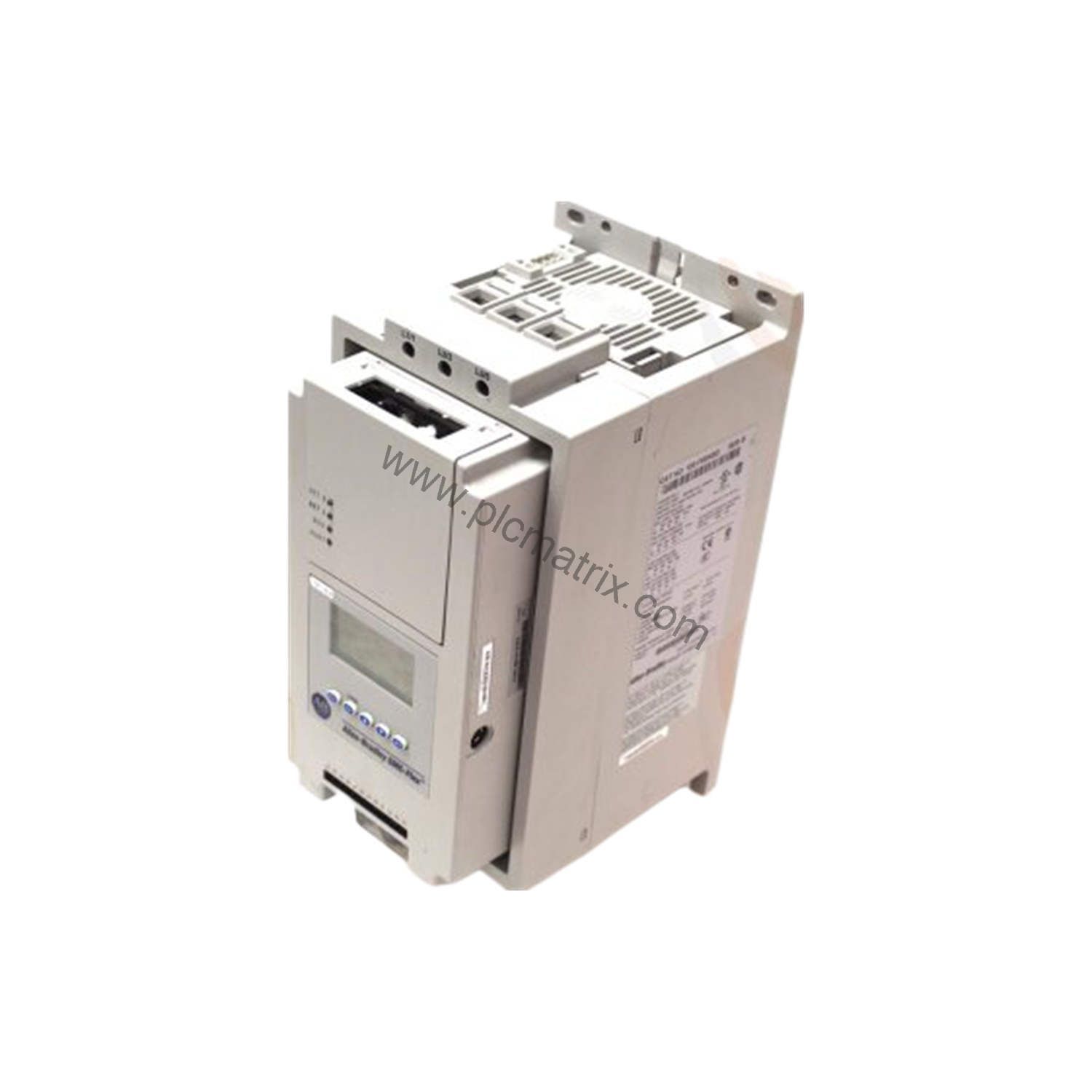

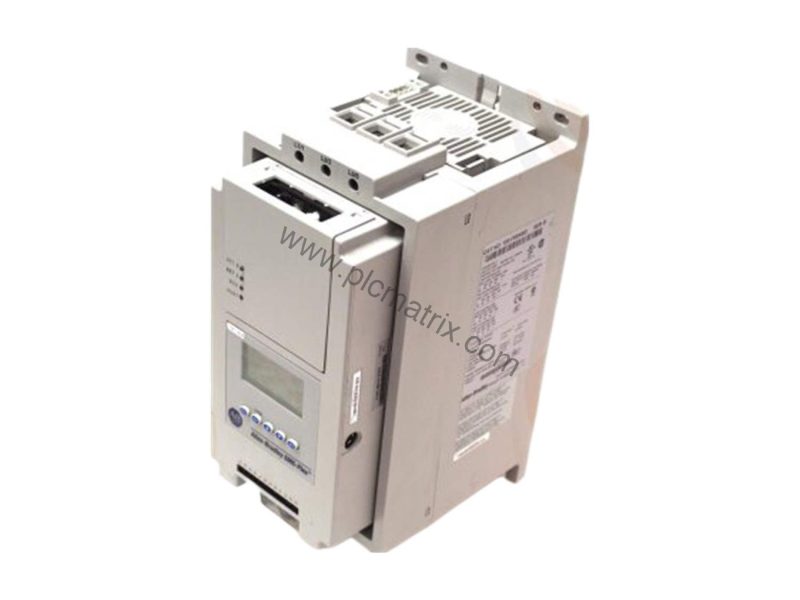

Allen-Bradley 150-F85FCD SMC-Flex Solid State Controller 85A IP65

Why Choose the Allen-Bradley 150-F85FCD SMC-Flex for Your Motor Control Needs?

When your application demands reliable starting and stopping of heavy industrial motors, the Allen-Bradley 150-F85FCD SMC-Flex solid state controller stands ready. This robust controller handles 85 A continuous current and supports 60 Hp at 460V AC, making it a powerful choice for a variety of three-phase motor loads. Its IP65 (Type 4/12) enclosure protects against dust and water jets, so you can install it in harsh environments without worry.

Technical Specifications

The 150-F85FCD operates on an input line voltage of 500-575V AC, three-phase, at 50 and 60 Hz. The control voltage is 100-240V AC (for 5-480 A units). The controller rating is 85 A, 60 Hp @ 460V AC. The enclosure is IP65 (Type 4/12), and the unit weighs 32.00 lbs (14.51 kg). These specifications ensure compatibility with standard industrial power systems and provide the durability needed for demanding environments.

Industry Applications

The 150-F85FCD is especially suited for line-connected motors, standard squirrel-cage induction motors, and Wye-Delta six-lead motors. It also controls other resistive loads. Typical applications include conveyors, pumps, fans, compressors, and mixers where controlled acceleration and deceleration reduce mechanical stress and improve process quality. The seven standard modes of operation—Soft Start, Full Voltage Start, Selectable Kickstart, Linear Speed Acceleration, Current Limit Start, Preset Slow Speed, and Dual Ramp Start—give you flexibility to match the starting profile to your load.

Installation & Setup Guidance

Mount the 150-F85FCD securely in a location that allows adequate airflow around the IP65 enclosure. Verify that the input line voltage matches your facility’s supply (500-575V AC, three-phase, 50 or 60 Hz). Connect the control voltage (100-240V AC) to the appropriate terminals. Use the LCD and backlit keypad to configure starting modes, overload protection, and other parameters. Always follow the manufacturer’s installation manual for wiring details and torque specifications.

Maintenance & Reliability

The 150-F85FCD includes adjustable overload and underload protection, overvoltage and undervoltage trip delays (programmable 0-99 seconds), ground fault protection, and stall/jam detection. An in-built SCR bypass/contactor reduces heat dissipation during full-speed operation. Periodically inspect the enclosure seals and verify that the cooling fins are clean. The built-in metering reports elapsed time, power factor, motor thermal capacity in Amps, Volts, kW, kWh, MW, and MWh, helping you monitor performance and schedule maintenance proactively.

Selection Guide & Purchasing Advice

Before ordering the 150-F85FCD, confirm your motor’s full-load current does not exceed 85 A and that your supply voltage is within 500-575V AC, three-phase. Verify the enclosure rating meets your environmental requirements (IP65/Type 4/12). For complete technical specifications for the 150-F85FCD, please contact BluePLC Industrial. Our team can help you verify compatibility and provide current availability and lifecycle status.
