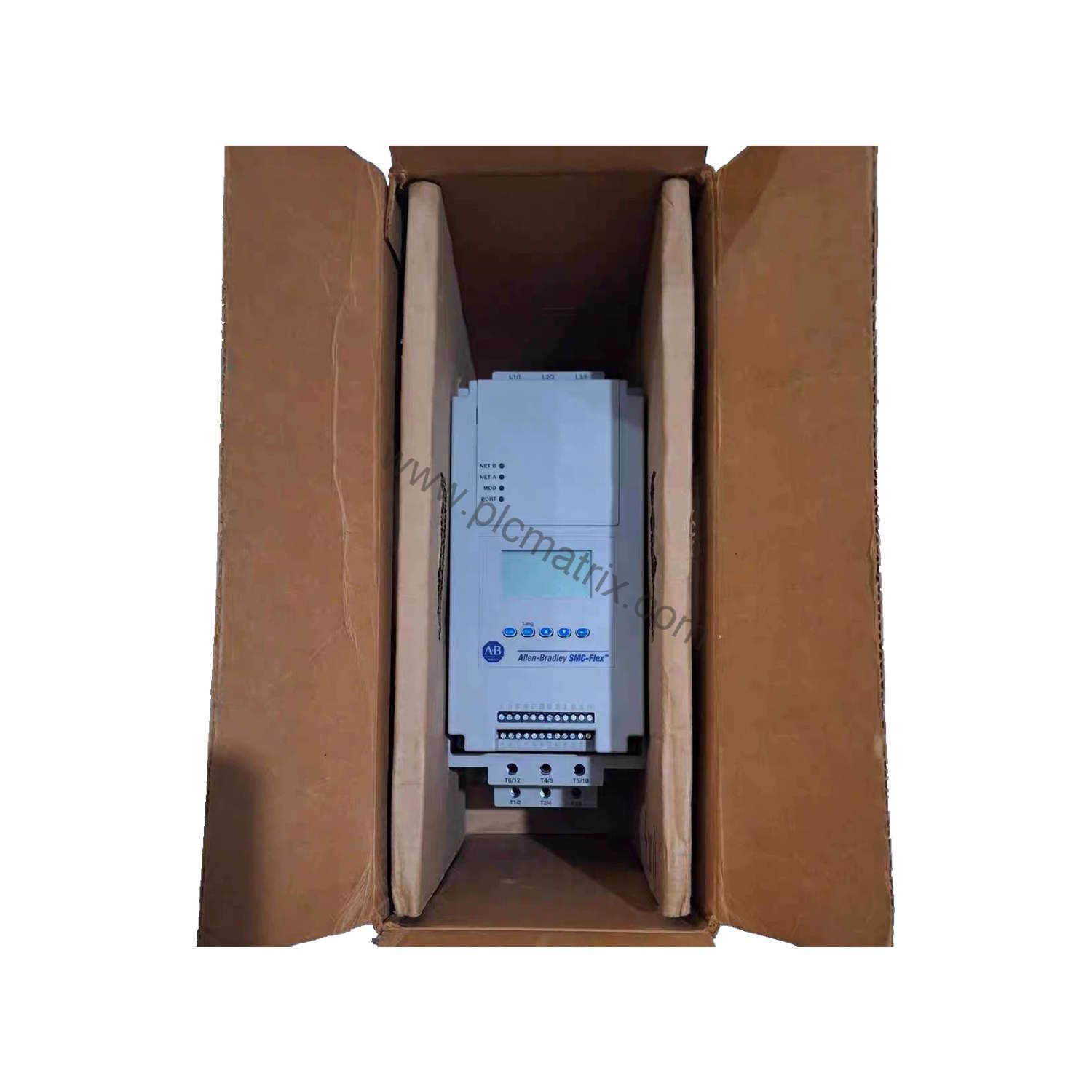

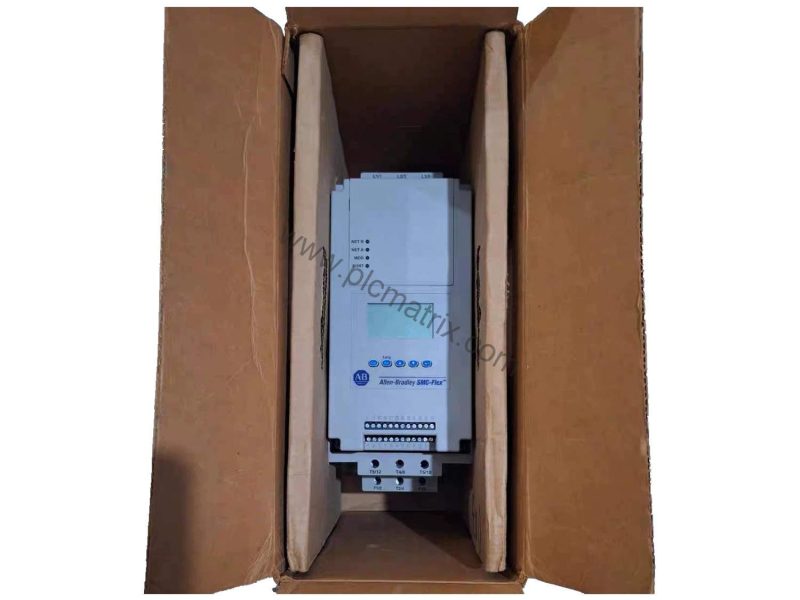

Allen-Bradley 150-F43FBD SMC-Flex Solid State Controller, 43A, IP65

Product Overview

When a facility demands robust motor control in harsh environments, the Allen-Bradley 150-F43FBD SMC-Flex Solid State Controller delivers. Designed for maintenance engineers who prioritize reliability and ease of service, this controller handles demanding applications with a 43 A rating and 30 Hp at 460V AC. Its IP65 (Type 4/12) enclosure protects against water jets, dust, and corrosive agents, reducing unplanned downtime and simplifying routine inspections.

Technical Specifications

The 150-F43FBD operates on a 400-460V AC, three-phase input line, supporting both 50 and 60 Hz frequencies. Control voltage is 100-240V AC for 5-480 A units. The controller provides a rated voltage of 400/415/460V AC. With a weight of 15.00 lbs (6.80 kg), it is manageable for panel mounting while maintaining rugged construction.

Industry Applications

This solid state controller excels in pumping stations, conveyor systems, and HVAC installations where water or dust exposure is common. The IP65 enclosure allows installation in washdown areas or outdoor locations without additional protective cabinets. For maintenance teams, the SMC-Flex series simplifies troubleshooting with diagnostic LEDs and straightforward parameter adjustments, reducing mean time to repair.

Installation & Setup Guidance

Mount the 150-F43FBD securely on a flat surface using appropriate hardware for the 15 lb unit. Ensure adequate clearance around the enclosure for heat dissipation. Connect three-phase power (400-460V AC) to the input terminals, and set the control voltage to 100-240V AC as required. Verify that the motor load does not exceed 43 A or 30 Hp at 460V AC. After wiring, perform a functional test by ramping the motor slowly to confirm correct rotation and smooth acceleration.

Maintenance & Reliability

Regularly inspect the IP65 enclosure gaskets and seals for wear or damage. Clean the exterior with a damp cloth; avoid high-pressure sprays directly at the label or vents. Check torque on all power connections annually to prevent resistive heating. The solid state design eliminates contact wear, extending service life compared to electromechanical starters. For maximum uptime, keep a spare 150-F43FBD on hand from BluePLC Industrial.

Selection Guide & Purchasing Advice

Before ordering, verify that your system voltage matches the 400-460V AC three-phase input and that the motor full-load current does not exceed 43 A. The 150-F43FBD is suitable for 30 Hp motors at 460V AC. For applications requiring higher current or different voltages, consult the SMC-Flex series catalog. BluePLC Industrial stocks this controller and can advise on compatible accessories. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
