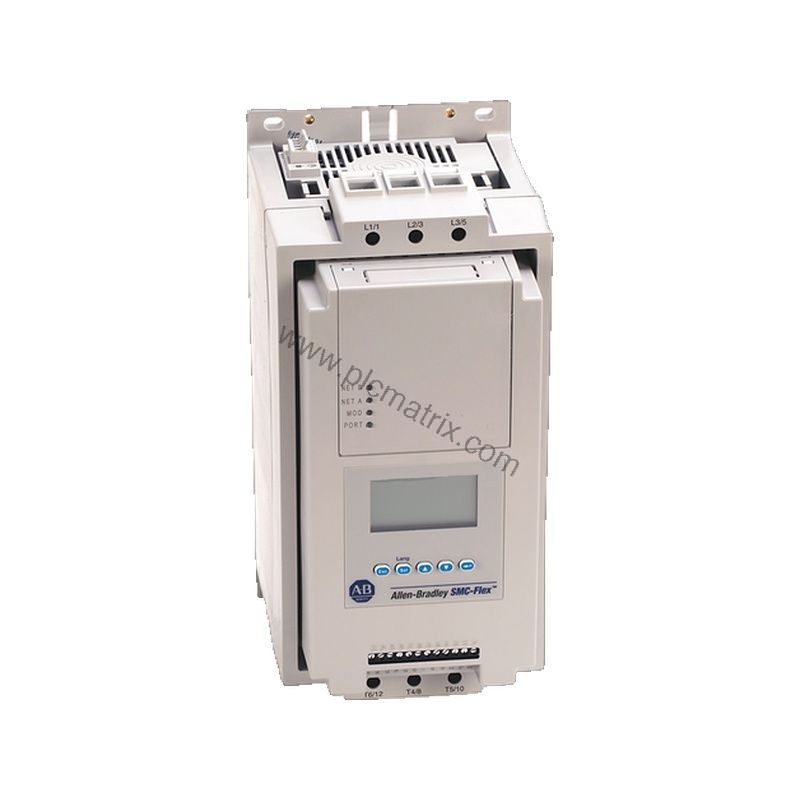

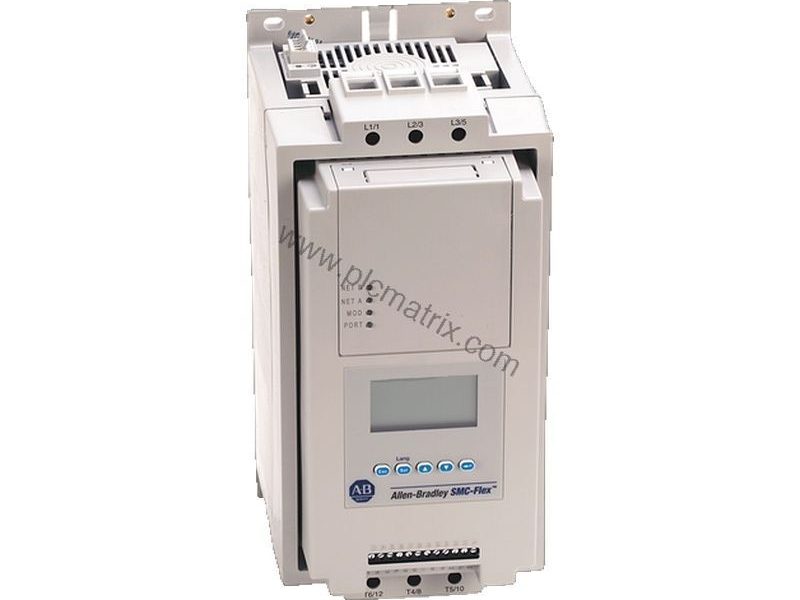

Allen-Bradley 150-F625NZA SMC-Flex Solid State Controller 625A

Product Overview

The Allen-Bradley 150-F625NZA is a solid state controller from the SMC-Flex product line. It delivers a controller rating of 625 A and 500 Hp at 460V AC, making it suitable for demanding industrial motor starting applications. The unit comes in an open enclosure, which allows integration into custom panels or existing control cabinets. This model supports an input line voltage of 230-690V AC, three-phase, at both 50 and 60 Hz, providing flexibility across global power systems.

Key Specifications

The 150-F625NZA operates with an input line voltage of 230-690V AC, three-phase, 50 and 60 Hz. Its control voltage is 230/240V AC, specifically for 625-1250 A units. The controller rating is 625 A, 500 Hp at 460V AC, and the rated voltage is 690/Y§V AC. Weighing 32.00 lbs (14.51 kg), this unit is built for robust performance in heavy-duty environments.

Industry Applications

This solid state controller excels in applications requiring smooth, controlled starting of large AC motors. Common uses include conveyors, pumps, compressors, and fans in industries such as mining, oil and gas, water treatment, and manufacturing. The wide input voltage range allows deployment in facilities with varying line conditions, reducing the need for additional transformers.

Installation Guidance

When installing the 150-F625NZA, ensure the open enclosure is mounted in a clean, dry location with adequate ventilation. Verify that the input line voltage matches the site supply (230-690V AC, three-phase, 50 or 60 Hz). Connect the control voltage per the 230/240V AC specification for 625-1250 A units. Always follow the manufacturer's wiring diagrams and local electrical codes. Use appropriately rated conductors and overcurrent protection devices.

Maintenance Tips

Regular inspection of the controller and its connections helps ensure long service life. Check for signs of overheating, loose wiring, or environmental contamination. Keep the enclosure interior free of dust and debris. Periodically verify that all parameters remain within the specified input voltage range. Following a routine maintenance schedule reduces unplanned downtime and extends equipment life.

Buying Guide

Before purchasing the 150-F625NZA, confirm that your motor's full-load current does not exceed 625 A and that the required horsepower is within the 500 Hp at 460V AC rating. Verify the available input line voltage matches the 230-690V AC, three-phase range. Ensure your control system can supply 230/240V AC control voltage. For current availability and lifecycle status, please contact BluePLC Industrial. We can also advise on compatible accessories and replacement options if needed.
