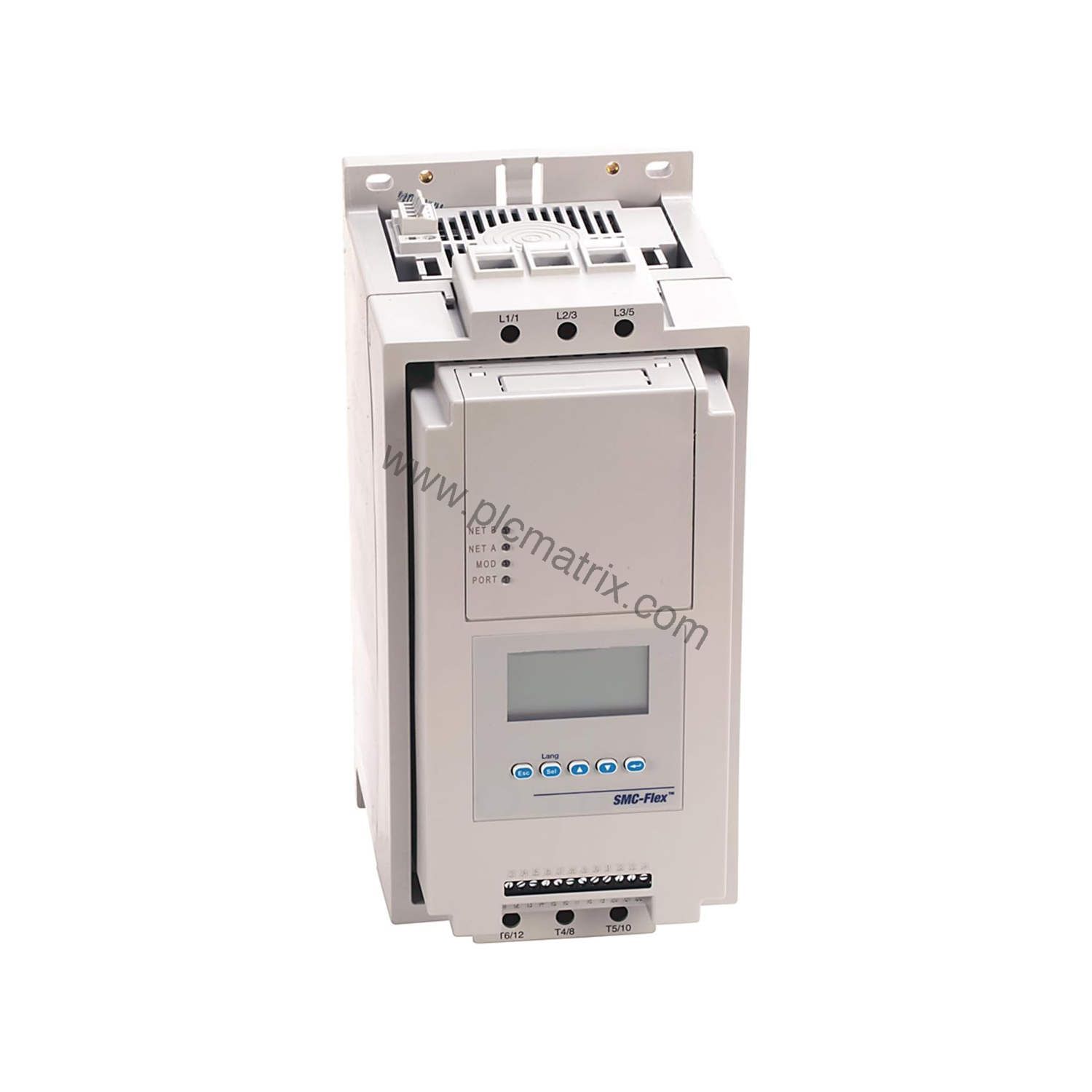

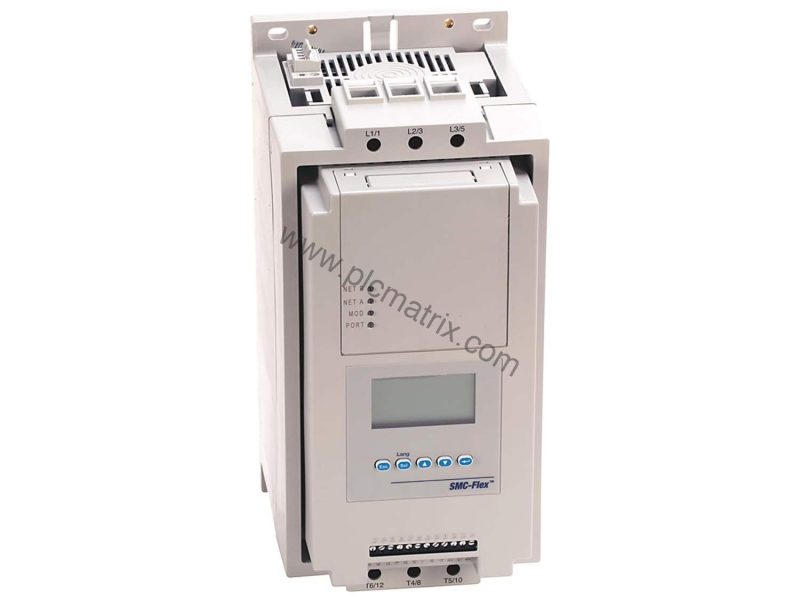

Allen-Bradley 150-F480FCD SMC-Flex Solid State Controller 480A IP65

Introduction

When harsh industrial environments demand reliable motor starting and stopping, the Allen-Bradley 150-F480FCD SMC-Flex solid state controller delivers. This robust unit combines a 480 Amp controller rating with an IP65 (Type 4/12) enclosure, making it suitable for washdown areas, dusty floors, and outdoor installations. Rated for 400 Horsepower at 460 Volts AC, the 150-F480FCD handles heavy loads without compromising performance.

Technical Specifications

The 150-F480FCD operates on an input line voltage of 500-575V AC, three-phase, at 50 or 60 Hz. Its control voltage ranges from 100 to 240V AC, applicable to all 5-480 A units. The rated voltage is 500 or 575 Volts AC, matching common global industrial power systems. Weighing 32.00 lbs (14.51 kg), this controller is built for permanent installation in demanding settings.

Industry Applications

This solid state controller excels at operating standard three-phase squirrel cage induction motors and Wye-Delta (6-lead) motors. Typical applications include conveyors, pumps, compressors, and fans where controlled acceleration reduces mechanical stress and electrical surges. The IP65 enclosure allows placement near washdown stations or in dusty material handling areas without additional protection.

Operation Modes

The 150-F480FCD features seven standard modes of operation, including linear speed acceleration, torque control start, current limit start, soft start, and selectable kickstart. The soft start mode covers most general applications, providing a user-adjustable initial torque before ramping output voltage to the motor. This reduces inrush current and mechanical shock, extending equipment life.

Protection & Reliability

Built-in electronic motor overload protection uses an algorithm to safeguard the motor and power wiring against overheating from excessive overcurrents. The SMC-Flex controllers meet applicable requirements as a motor overload protective device. For maintenance, periodic inspection of the enclosure seals and connections is recommended to ensure continued IP65 integrity. Always follow the manufacturer's safety manual for testing procedures.

Selection Guide & Purchasing Advice

Before ordering the 150-F480FCD, verify your motor's full-load current and voltage match the controller's 480A rating and 500-575V AC input. Confirm that your control power supply delivers 100-240V AC. For current lifecycle status and availability, contact BluePLC Industrial. Our team can also advise on compatible accessories and replacement options if needed.
