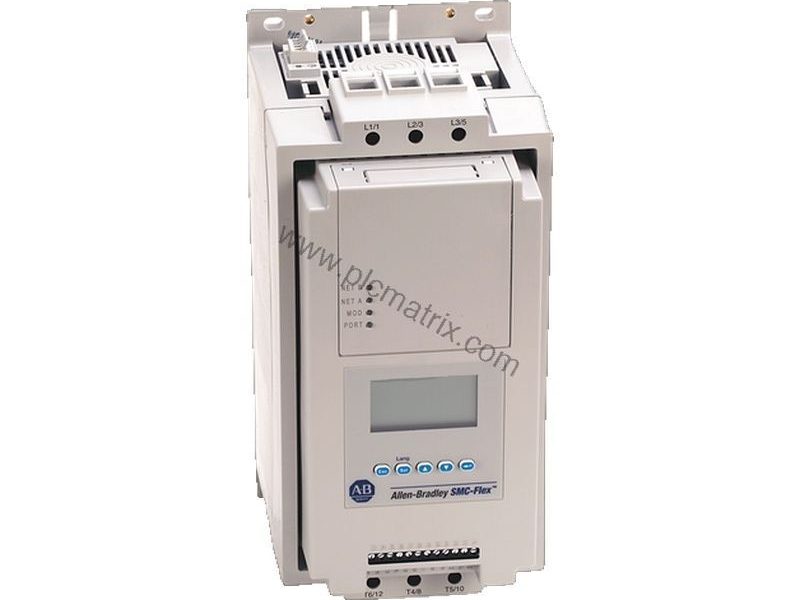

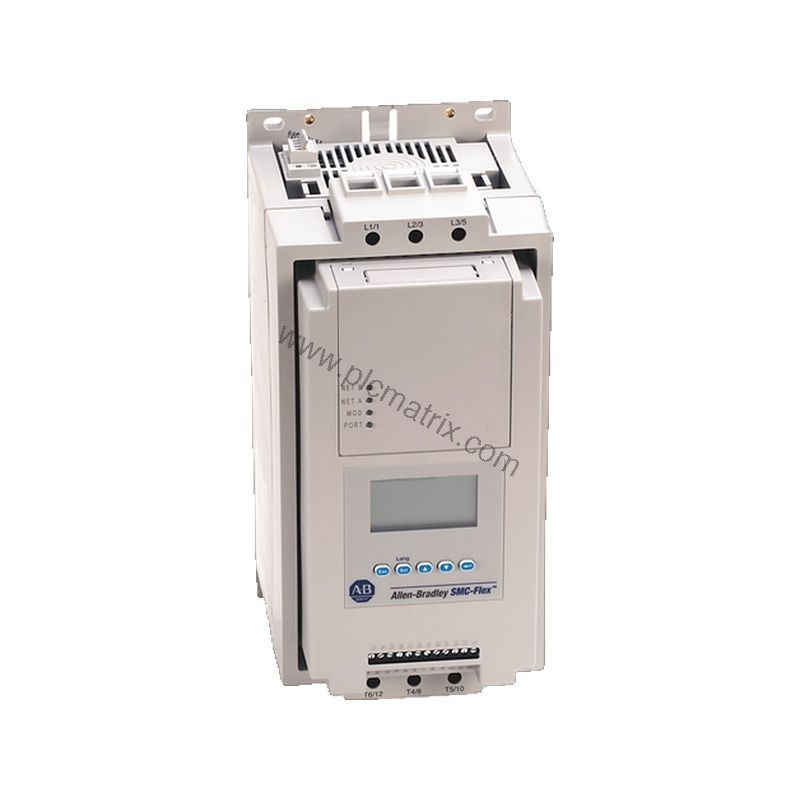

Allen-Bradley 150-F625NCA SMC-Flex Solid State Controller 625A

Product Introduction

When industrial motors require controlled acceleration and deceleration to prevent mechanical stress and electrical surges, the Allen-Bradley 150-F625NCA SMC-Flex solid state controller delivers a reliable solution. This open-type controller, part of the trusted SMC-Flex series, provides soft starting and stopping capabilities for three-phase AC motors. With a robust 625 A controller rating and support for 500 Hp at 460V AC, it handles demanding applications while protecting connected equipment from sudden torque changes.

Technical Specifications

The 150-F625NCA operates with an input line voltage of 200-575V AC, three-phase, at 50 and 60 Hz. Its control voltage is 230/240V AC, applicable for 625-1250 A units. The controller rating is 625 A, supporting 500 Hp at 460V AC. The enclosure is open type, rated IP65 (Type 4/12), protecting against dust ingress and low-pressure water jets from any direction. The ambient temperature range for operation is 0 to 50 degrees Celsius.

Industry Applications

This controller excels in applications requiring smooth motor starts and stops, such as conveyor systems, pumps, fans, and compressors. For example, in a material handling line, the 150-F625NCA eliminates jerky starts that can damage product or machinery. Its ability to work with delta and line-connected motors makes it versatile for retrofit or new installations. The open enclosure suits indoor industrial environments where controlled airflow and dust protection are maintained.

Installation Guidance

Mount the 150-F625NCA vertically to allow natural airflow for cooling, as it generates waste heat during operation. Install it in a clean, dry enclosure free from dust and liquids to avoid electric shock hazards. Ensure the enclosure temperature stays between 0 and 50 degrees Celsius. The controller does not include control options, so plan external control wiring accordingly.

Maintenance and Reliability

Regularly inspect the enclosure and verify that airflow paths remain unobstructed. Check for dust accumulation on the heat sink and clean with dry compressed air if needed. Periodically test the soft start and stop functions to ensure proper operation. Following these simple steps extends service life and maintains reliable performance.

Selection and Purchasing Advice

Before ordering, confirm that your motor's full-load current does not exceed 625 A and that the line voltage matches the 200-575V AC range. Verify control voltage requirements for your system. For complete technical specifications for the 150-F625NCA, please contact BluePLC Industrial. Our team can help you verify compatibility and availability.
