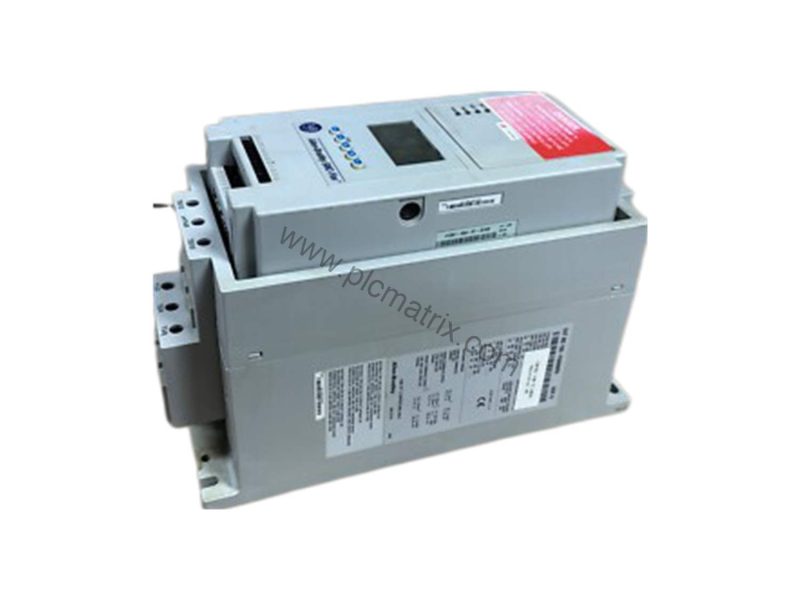

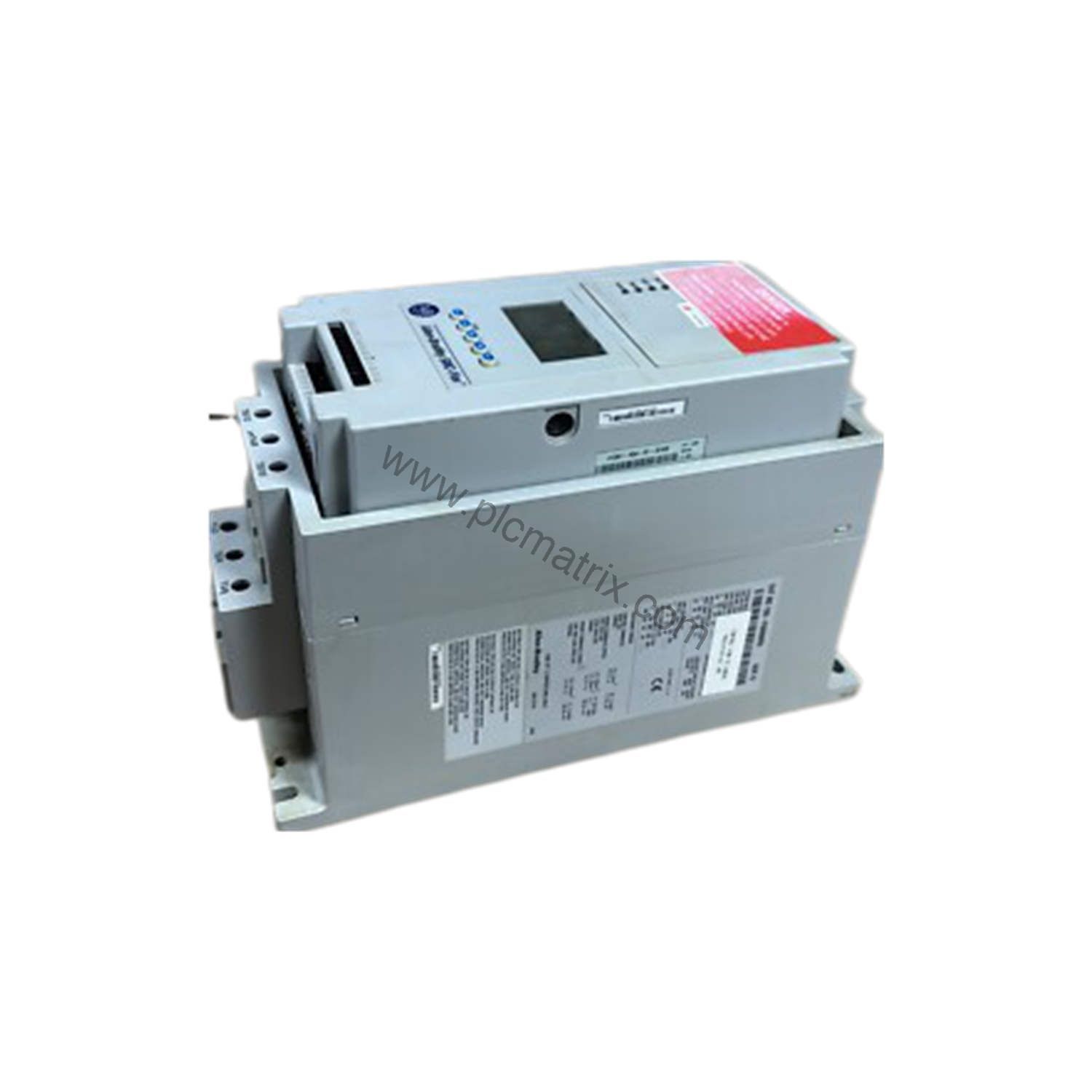

Allen-Bradley 150-F60FBD SMC-Flex Solid State Controller 60A IP65

Product Introduction

When harsh environments demand reliable motor starting and stopping, the Allen-Bradley 150-F60FBD SMC-Flex solid state controller delivers robust performance. This controller combines a rugged IP65 (Type 4/12) enclosure with a 60 A rating and 40 Hp @ 460V AC capability, making it ideal for applications where dust, water, or washdown conditions exist. Part of the SMC-Flex family, the 150-F60FBD provides smooth acceleration and deceleration while protecting both motor and driven equipment.

Technical Specifications

The 150-F60FBD operates on an input line voltage of 400-460V AC, 3-phase, 50 and 60 Hz. It requires a control voltage of 100-240V AC (5-480 A units). The controller rating is 60 A, 40 Hp @ 460V AC, with a rated voltage of 400/415/460V AC. The IP65 (Type 4/12) enclosure protects against dust ingress and low-pressure water jets, making it suitable for industrial environments without additional enclosures. Weighing 15.00 lbs (6.80 kg), this unit is designed for panel or wall mounting.

Industry Applications

In water and wastewater treatment facilities, the 150-F60FBD controls large pumps with smooth starts to reduce mechanical stress and water hammer. The IP65 enclosure withstands humidity and splash exposure common in these plants. For food and beverage processing, the controller manages conveyors and mixers in washdown areas, where its sealed housing prevents contamination. The 60 A rating supports motors up to 40 Hp at 460V AC, covering a wide range of industrial machinery. By using this solid state controller, engineers reduce maintenance on mechanical contactors and extend motor life through controlled acceleration.

Installation & Setup Guidance

Before installation, verify that your facility supplies 400-460V AC, 3-phase, 50 or 60 Hz to match the input line voltage. The control voltage must be 100-240V AC. Mount the controller in a location that allows adequate airflow around the IP65 enclosure. Use appropriately rated conductors for 60 A continuous current. Follow the wiring diagram provided in the user manual for proper connection of line and load terminals. Ensure the enclosure cover seals correctly after wiring to maintain the IP65 rating.

Maintenance & Reliability

Periodically inspect the enclosure for damage to seals or gaskets that could compromise the IP65 protection. Keep the exterior clean and free of debris to allow heat dissipation. The solid state design eliminates moving parts and contact wear, reducing maintenance intervals compared to electromechanical starters. Verify that the control voltage remains within the specified 100-240V AC range to prevent erratic operation. For long-term reliability, operate within the rated 60 A and 40 Hp limits.

Selection Guide & Purchasing Advice

When selecting the 150-F60FBD, confirm that your motor full-load current does not exceed 60 A and that your system voltage matches 400-460V AC, 3-phase. This controller is suitable for new installations or as a direct replacement for existing SMC-Flex units. BluePLC Industrial stocks the Allen-Bradley 150-F60FBD and can advise on compatibility with your application. Contact our team for current availability and pricing. For complete technical specifications, please contact BluePLC Industrial.
