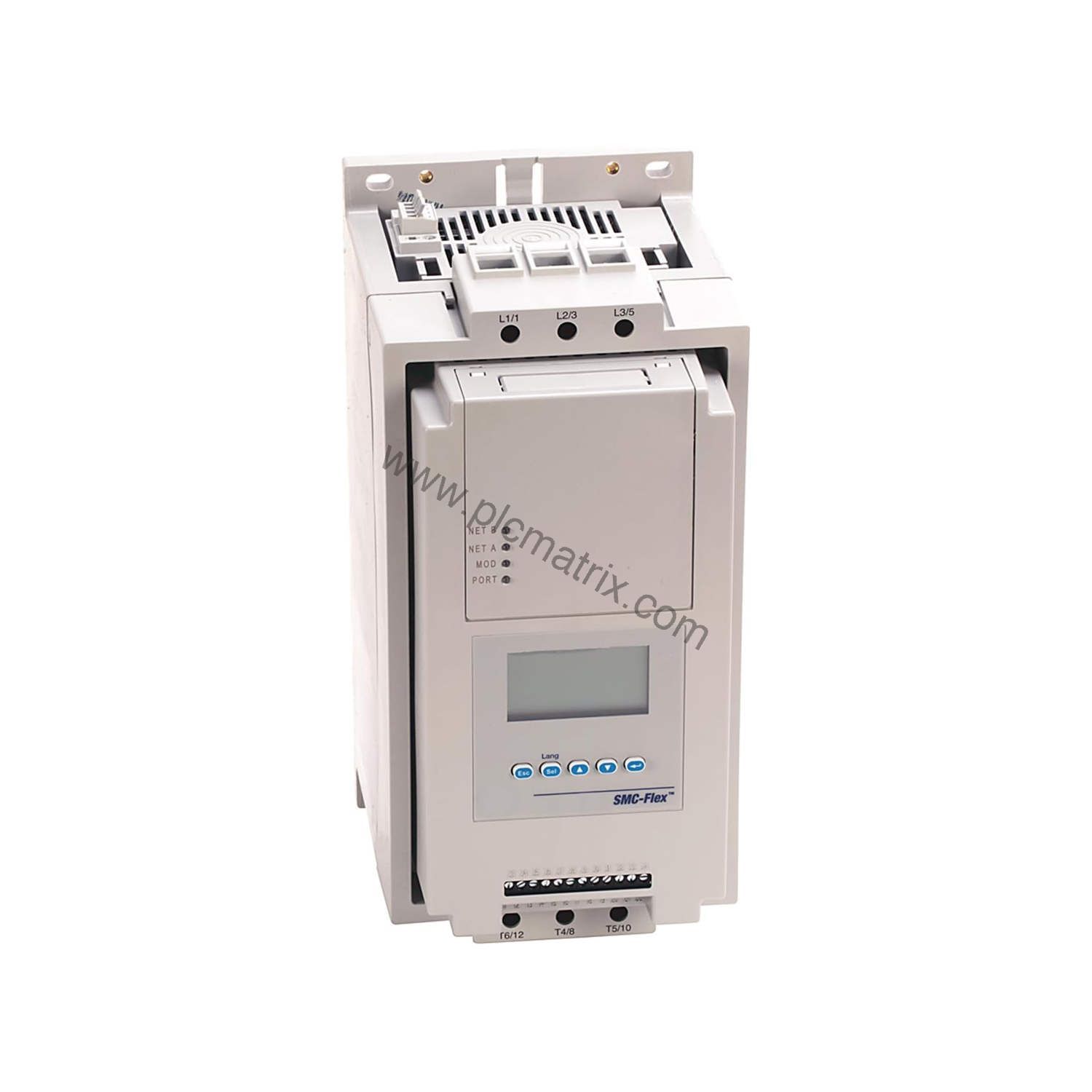

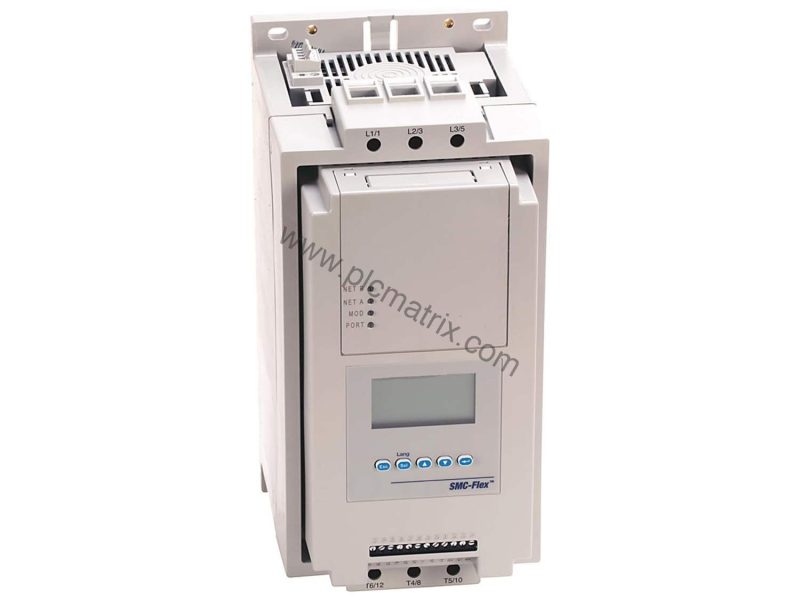

Allen-Bradley 150-F480NBDD SMC-Flex Open Smart Motor Controller

Product Overview

When industrial processes demand precise motor starting and stopping, the Allen-Bradley 150-F480NBDD provides a reliable solution. This SMC-Flex solid state controller delivers smooth acceleration and deceleration for three-phase AC motors. With a 480A rating and support for 200 to 400 HP motors at 460V AC, it handles heavy-duty applications across manufacturing, pumping, and material handling systems.

Technical Specifications

The 150-F480NBDD operates on an input line voltage of 200 to 480V AC, three-phase, at 50 or 60 Hz. Its control voltage accepts 100 to 240V AC, simplifying integration with standard control systems. The open enclosure type allows flexible mounting in industrial panels. A key option is the braking control feature, which enables controlled stopping for applications requiring reduced mechanical wear.

Industry Applications

This controller excels in conveyor systems where soft starting prevents belt slippage and product damage. In pumping stations, it reduces water hammer by gradually ramping pump motors. The braking control option makes it ideal for centrifuges and mixers that need precise deceleration. Compared to across-the-line starters, the 150-F480NBDD minimizes electrical stress on motors and mechanical shock on driven equipment.

Installation & Setup Guidance

Mount the controller in a clean, dry enclosure with adequate ventilation. Ensure the input line voltage matches the 200 to 480V AC, three-phase supply. Connect the control voltage to a 100 to 240V AC source. Follow the manufacturer's wiring diagram for power and control connections. Verify that the motor's full-load current does not exceed the 480A rating. Commission the unit by setting the starting and stopping parameters via the built-in interface.

Maintenance & Reliability

Periodically inspect the controller for dust buildup on heat sinks and ensure cooling fans operate freely. Check all power and control connections for tightness. The solid-state design reduces wear compared to electromechanical starters, extending service life. For braking applications, verify that the braking control option functions correctly during routine testing.

Selection Guide & Purchasing Advice

Before ordering, confirm that the 150-F480NBDD matches your motor's horsepower and voltage. For motors rated 200 to 400 HP at 460V AC, this controller is a direct fit. Verify the enclosure type meets your site requirements. For complete technical specifications, please contact BluePLC Industrial. Our team can confirm lifecycle status and availability.
