Allen-Bradley 150-F480NBDB SMC Flex Smart Motor Controller Overview

Product Introduction

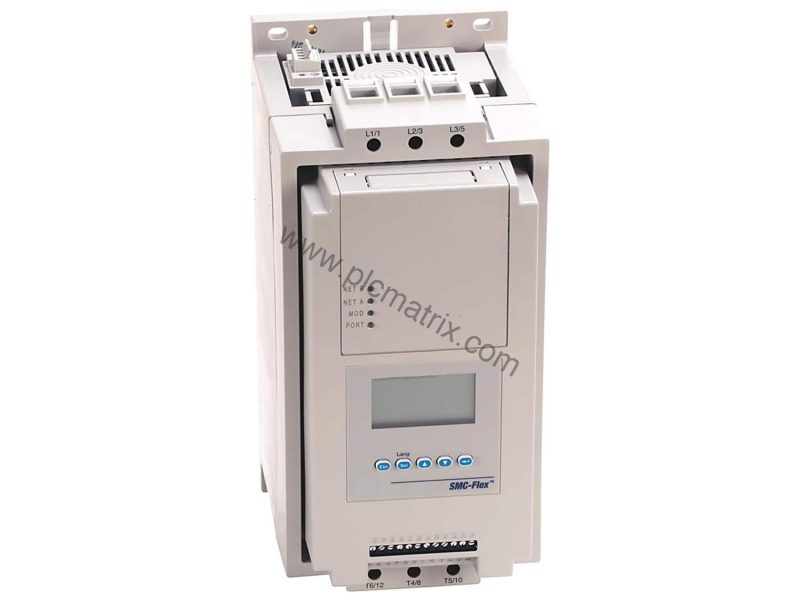

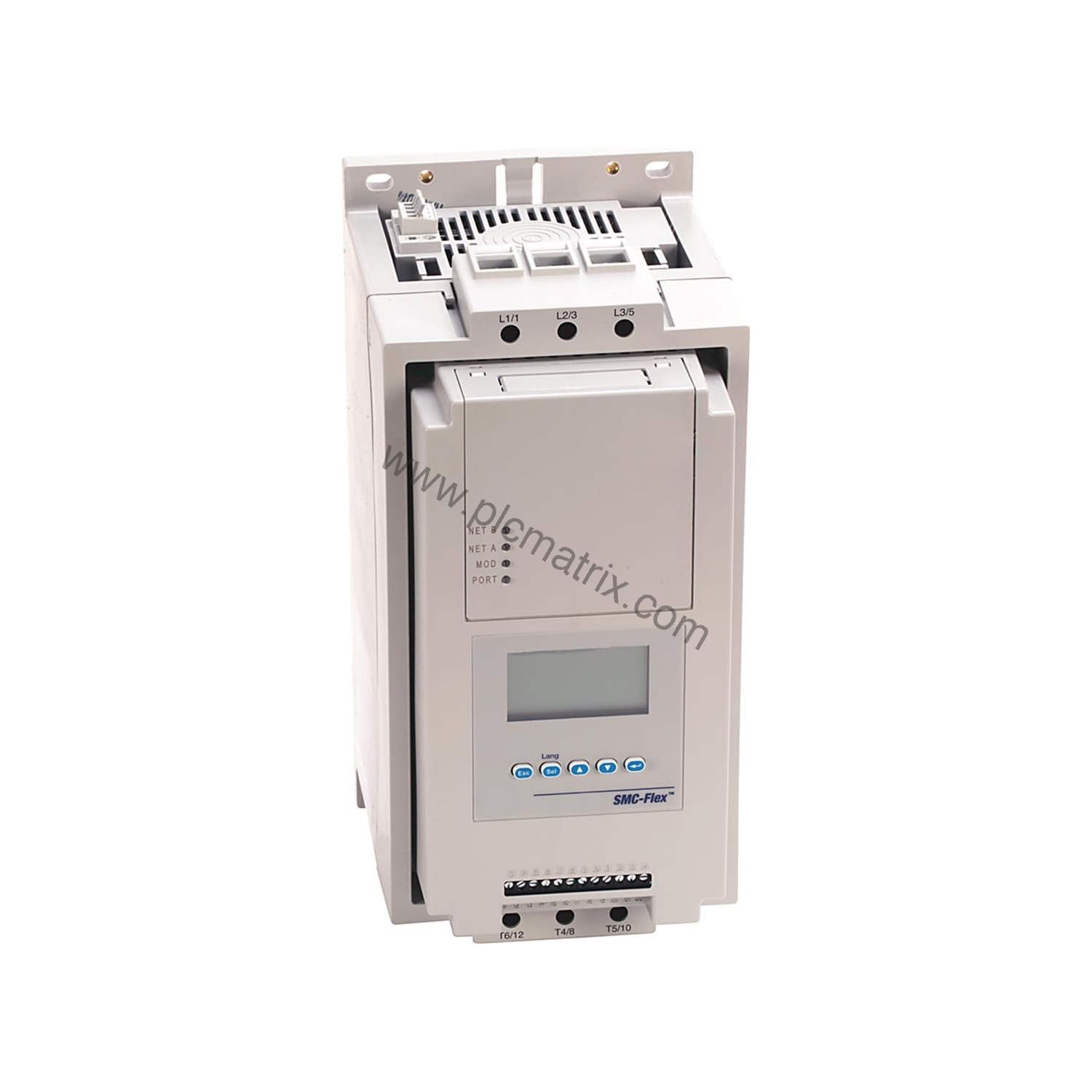

When industrial processes demand reliable motor starting and stopping, the Allen-Bradley 150-F480NBDB SMC Flex Open and Non-Combination Smart Motor Controller provides a robust solution. Part of the SMC-Flex family, this solid-state controller handles heavy loads with a contact rating of 480 A and supports motors up to 400 HP at 460V AC. Its open enclosure type suits panel-mount installations where space and ventilation are key.

Technical Specifications

The 150-F480NBDB operates with an input line voltage of 200-480V AC, 3-phase, 50/60 Hz, and a control voltage of 100-240V AC. The voltage rating is 200-460V AC. Physical dimensions are 11.42 inches wide, 23.62 inches high, and 10.89 inches deep, with a weight of 105.00 lbs (47.63 kg). The ambient temperature rating ranges from -5 to 50 degrees Celsius, while storage temperature should be maintained at -25 to 75 degrees Celsius with 5-95% non-condensing humidity.

Industry Applications

This controller excels in pumping applications thanks to its pump control option, which reduces pressure surges during start and stop cycles. It also supports braking control for applications requiring rapid deceleration. Starting modes include soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed, and soft stop, making it versatile for conveyors, fans, and compressors.

Protections and Diagnostics

The SMC-Flex provides comprehensive monitoring and protection. It detects power loss, line faults, voltage unbalance, excessive starts per hour, phase reversal, and more. Alarm contacts cover overload, underload, undervoltage, overvoltage, unbalance, jams, stalls, and ground faults. Metering includes amps, volts, kW, kWh, MW, MWh, elapsed time, power factor, and motor thermal capacity usage. Four fully programmable contacts can be configured as normal, up-to-speed, fault, alarm, network, or external bypass.

Compatibility and Integration

The 150-F480NBDB works with standard squirrel-cage induction motors or Wye-Delta six-lead motors. Control wiring supports 2-wire and 3-wire configurations for broad application flexibility. Status indications include stop, start, stopping, at speed, alarm, and fault, simplifying integration into existing control systems.

Selection Guide and Purchasing Advice

Before ordering, verify that your motor's full-load current does not exceed 480 A and that your supply voltage matches the 200-480V AC range. The open enclosure requires proper panel mounting with adequate cooling. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help confirm lifecycle status and recommend compatible accessories.
