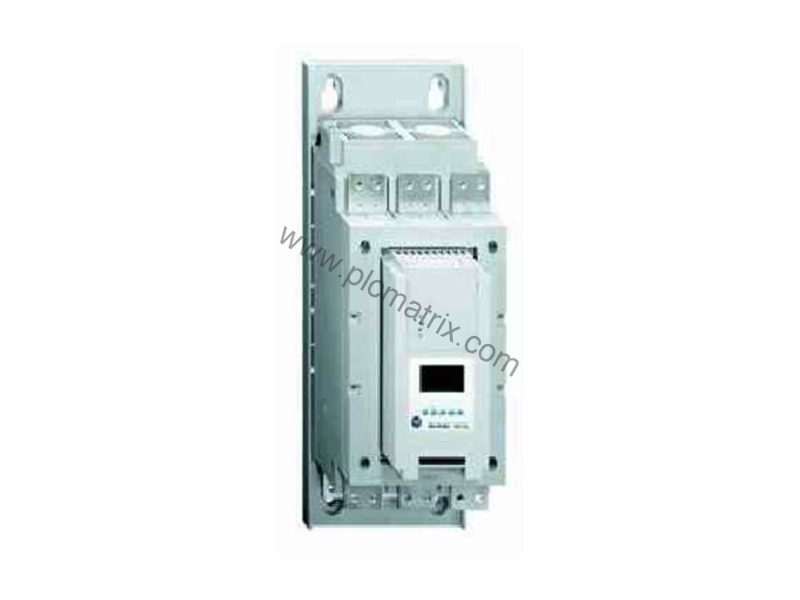

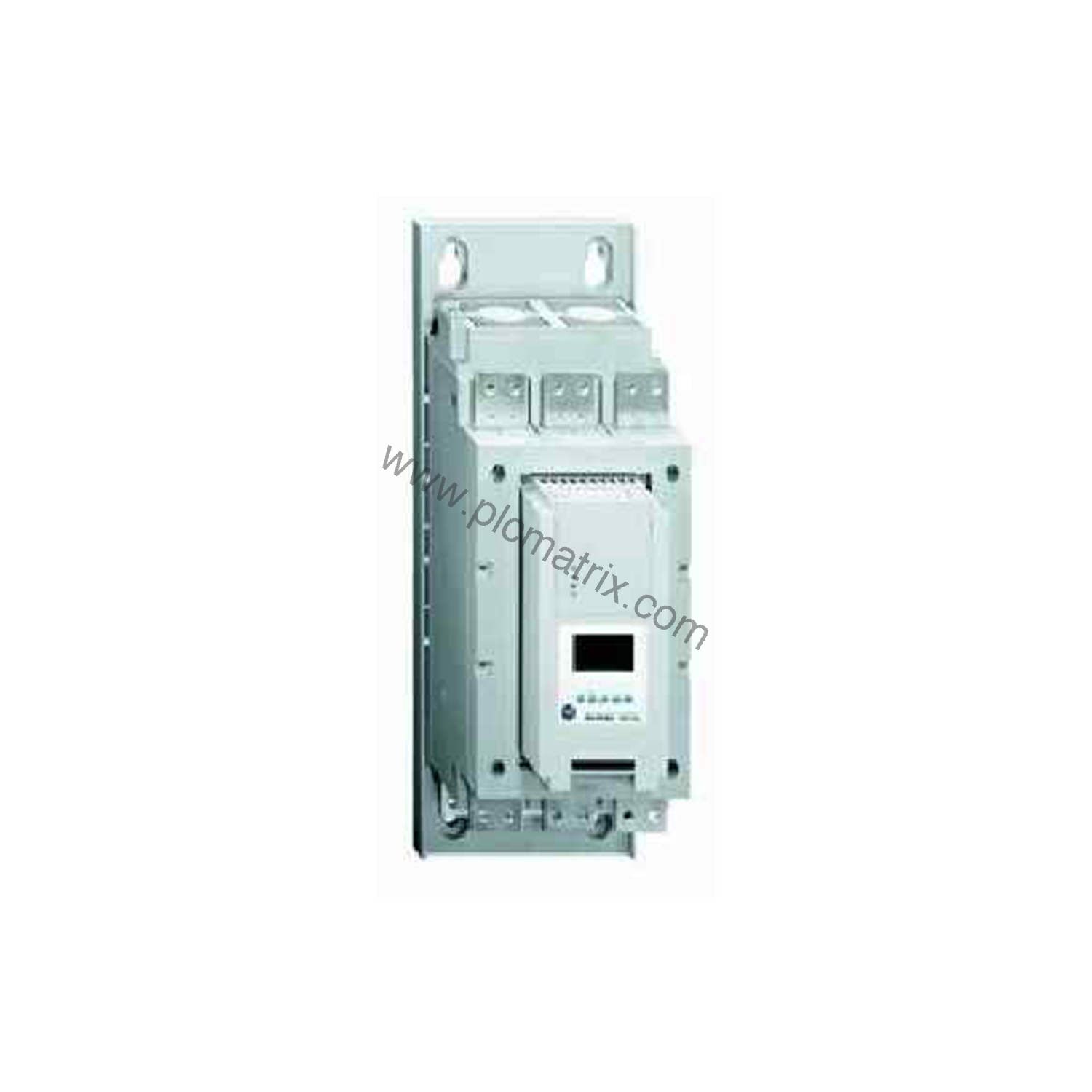

Allen-Bradley 150-F43NCD SMC-Flex Solid State Controller 43A

Product Overview

When your industrial process demands precise motor control and reliable soft starting, the Allen-Bradley 150-F43NCD delivers. This solid state controller from the SMC-Flex series combines advanced diagnostics with a modular design to reduce energy costs and extend equipment life. With a 43 A controller rating and support for 30 Hp at 460V AC, it handles demanding applications while minimizing mechanical stress.

Technical Specifications

The 150-F43NCD operates on a 200-575V AC, three-phase input line at 50 and 60 Hz. Its control voltage ranges from 100-240V AC, compatible with 5-480 A units. The controller is rated for 43 A and 30 Hp at 460V AC, with a rated voltage of 500/575V AC. This open enclosure design allows for flexible integration into existing panels.

Industry Applications

This controller excels in applications such as bandsaws, where it minimizes starting peaks and can stop the motor within two minutes. It also works effectively with compressors, pumps, and centrifuges, providing diagnostic jam and stall protection to prevent damage. The built-in LCD display and keypad enable operators to visualize process data and adjust variables in real time.

Key Features

The 150-F43NCD includes an integrated bypass, nine start/stop modes, and three slow-speed modes. Its fully programmable nature allows you to set pump control and braking control options. The metering and diagnostic mechanism helps reduce torque and start current, ensuring smooth operation.

Installation and Setup

Mount the open-enclosure controller in a clean, dry cabinet with adequate ventilation. Verify that the input line voltage matches your facility's 200-575V AC three-phase supply. Connect control wiring to the 100-240V AC terminals, ensuring proper grounding per local codes. Use the keypad and LCD to configure start modes and protection parameters.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. The solid-state design reduces wear compared to electromechanical starters, lowering maintenance frequency. Monitor the LCD for diagnostic alerts to address issues before they cause downtime. For complete technical specifications, please contact BluePLC Industrial.

Selection Guide

Before purchasing the 150-F43NCD, verify your motor's full-load current and horsepower ratings. This unit suits 43 A applications with up to 30 Hp at 460V AC. Ensure your facility provides 200-575V AC three-phase power. BluePLC Industrial offers this controller with fast shipping and expert support to help you select the right model for your system.
