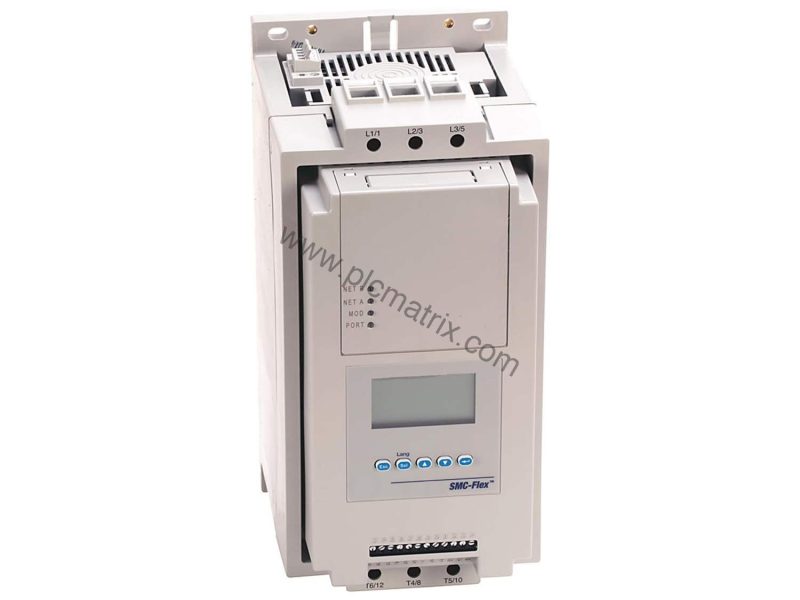

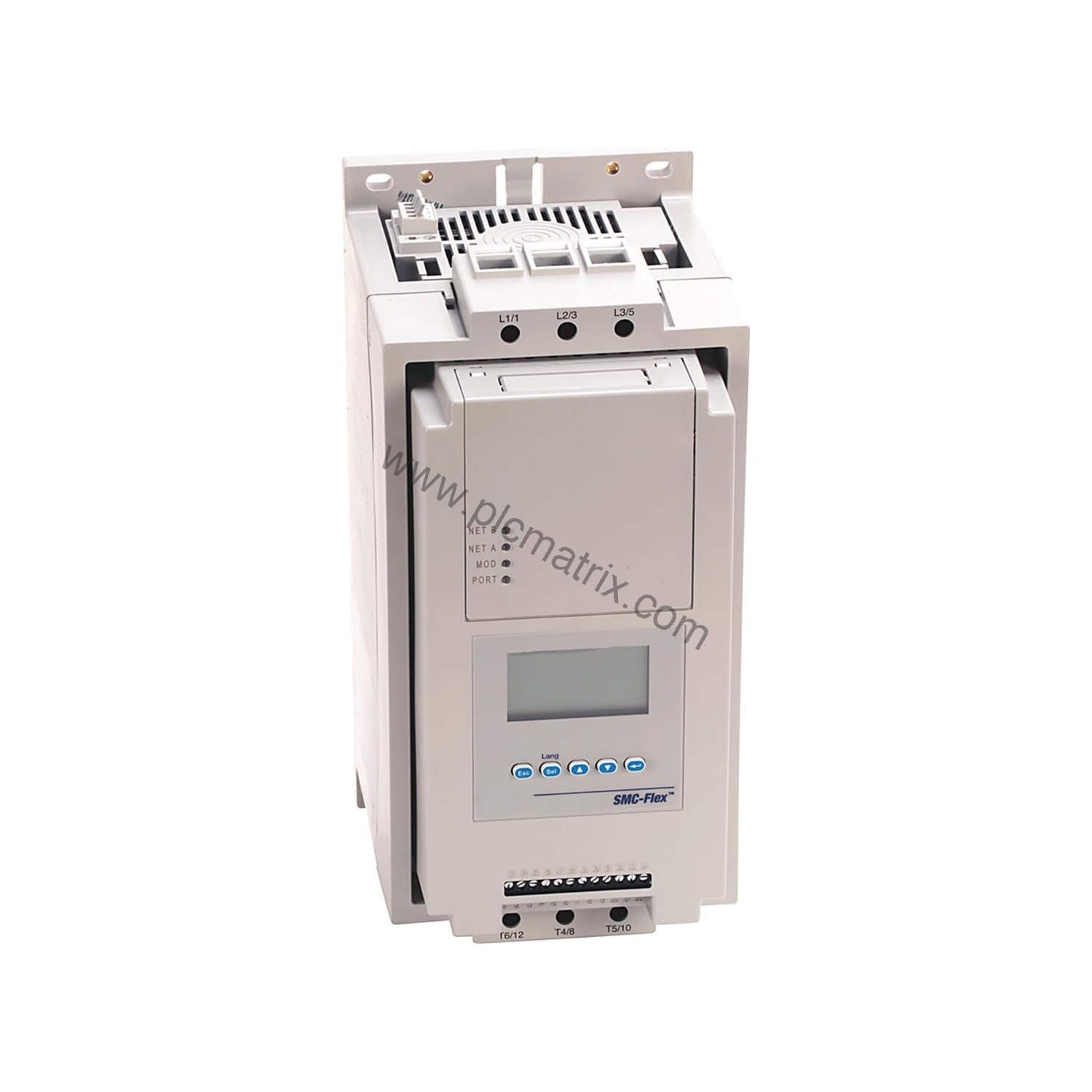

Allen-Bradley 150-F480FBD SMC-Flex Solid State Controller 480A IP65

Product Overview: The 150-F480FBD Solid State Controller

When industrial facilities face harsh environments and demanding motor loads, the Allen-Bradley 150-F480FBD SMC-Flex Solid State Controller provides a robust solution. This high-current controller handles up to 480 A and 400 Hp at 460V AC, making it suitable for large pumps, compressors, and conveyors. Its IP65 (Type 4/12) enclosure protects against dust and water spills, ensuring reliable operation indoors or outdoors.

Technical Specifications Breakdown

The 150-F480FBD operates on a 400-460V AC, 3-phase input line at 50 and 60 Hz. This wide voltage range allows flexibility across global power systems. The control voltage ranges from 100-240V AC, compatible with standard control circuits for units rated 5-480 A. The controller rating of 480 A and 400 Hp at 460V AC ensures it can start and stop large induction motors smoothly, reducing mechanical stress and electrical surges.

Industry Applications: Solving Real-World Problems

In mining operations, the 150-F480FBD controls high-horsepower crushers and conveyors, where dust and moisture are constant threats. Its IP65 enclosure eliminates the need for additional protective cabinets, saving space and cost. In water treatment plants, the controller manages large pumps with adjustable current settings from 5 to 480 A, matching motor requirements precisely. The adjustable input frequency (50 or 60 Hz) makes it suitable for global installations.

Installation & Setup Guidance

Before installation, confirm that your facility's input power is 3-phase, 50 or 60 Hz, within 400-460V AC. Mount the controller in a location that allows airflow around the IP65 enclosure. Connect the control voltage (100-240V AC) to the designated terminals. Use appropriately rated cables for 480 A continuous current. Always follow the manufacturer's wiring diagram for safe and compliant installation.

Maintenance & Reliability

The 150-F480FBD requires minimal routine maintenance due to its solid-state design and sealed enclosure. Inspect the enclosure gasket and external connections periodically for signs of wear or corrosion. Clean the exterior with a dry cloth; do not use solvents or open the enclosure. Regular inspection according to the manufacturer's guidelines ensures long service life and prevents unplanned downtime.

Selection Guide & Purchasing Advice

When selecting the 150-F480FBD, verify that your motor's full-load current does not exceed 480 A and that the voltage matches your supply (400-460V AC, 3-phase). Confirm the control voltage available in your panel (100-240V AC). For complete technical specifications, please contact BluePLC Industrial. Our team can help confirm compatibility and availability for your application.
