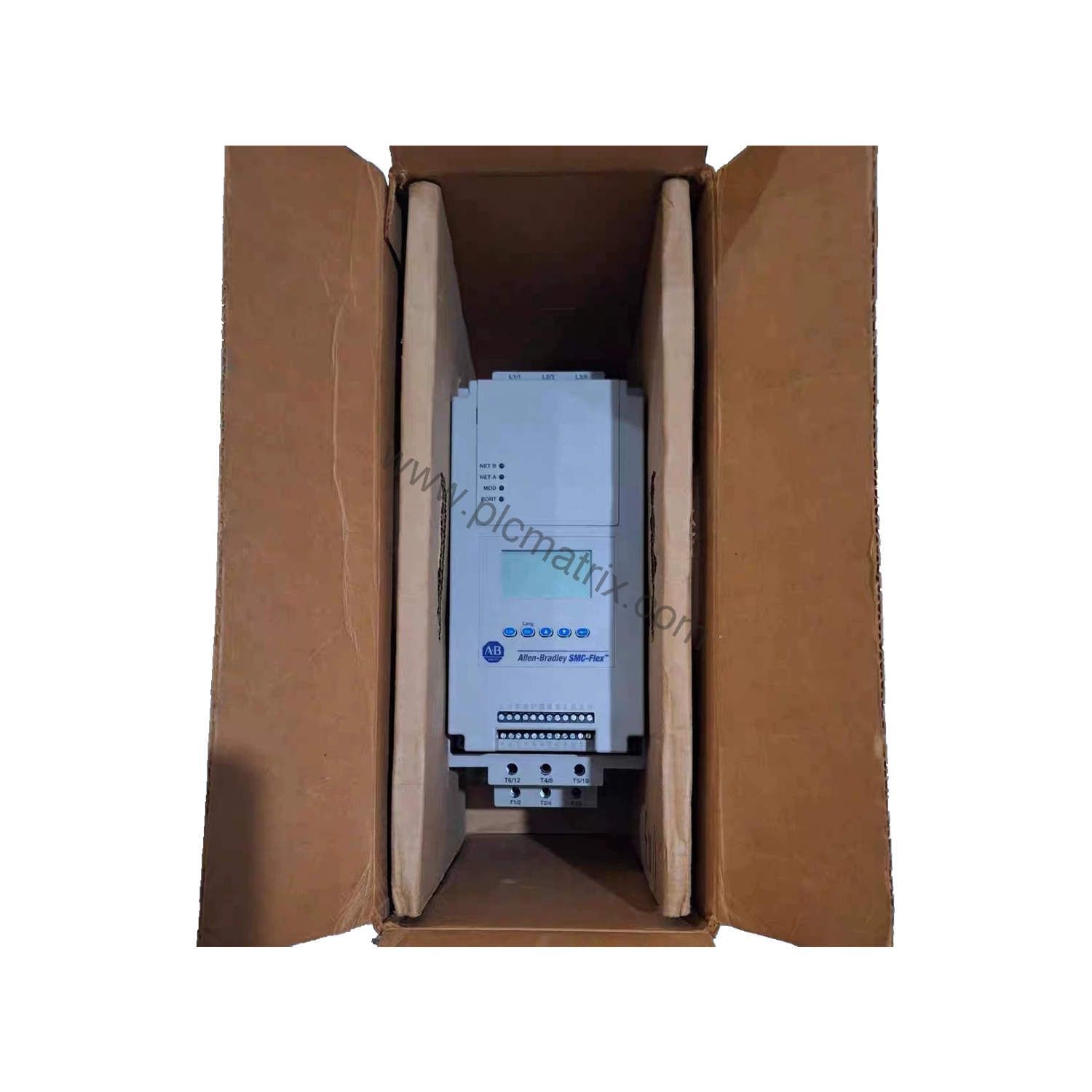

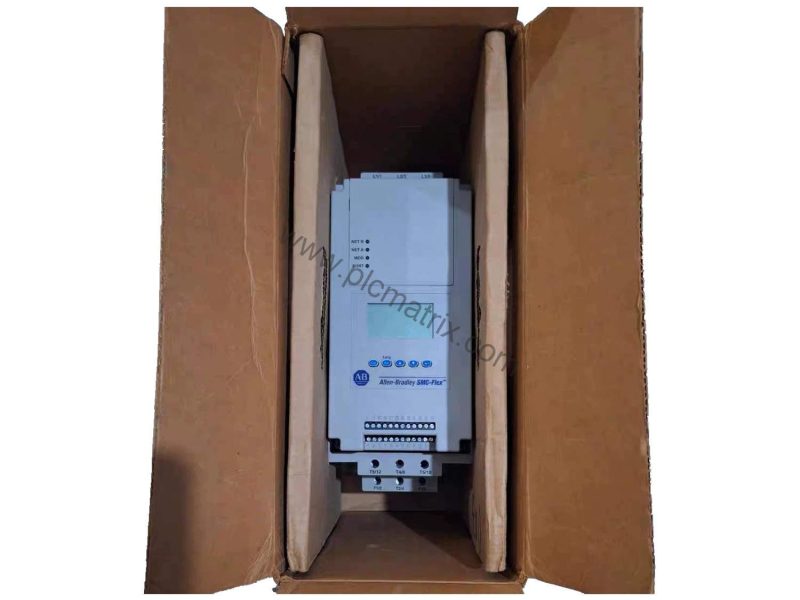

Allen-Bradley 150-F43FAD SMC-Flex Solid State Controller 43A IP65

Product Overview: Solving Motor Start Challenges with the Allen-Bradley 150-F43FAD

When industrial motors start abruptly, they cause mechanical stress, voltage dips, and equipment wear. The Allen-Bradley 150-F43FAD SMC-Flex solid state controller addresses these pain points directly. As a soft starter, it ramps motor voltage smoothly, reducing inrush current and extending the life of both the motor and driven machinery.

This controller is part of the SMC-Flex family, engineered for standard three-phase squirrel cage induction motors and Wye-Delta motors. Its IP65 (Type 4/12) enclosure protects against dust and water jets, making it suitable for washdown environments, outdoor installations, and demanding factory floors.

Technical Specifications Breakdown

Controller Rating: 43 A, 30 Hp @ 460V AC – This means the 150-F43FAD can handle motors up to 30 horsepower at 460V AC, with a continuous current rating of 43 amps. It ensures reliable starting and running for medium-sized industrial motors.

Input Line Voltage: 230V AC, 3-phase, 50 and 60 Hz – The controller accepts standard three-phase power at 230V AC, operating at both 50 Hz and 60 Hz frequencies, offering flexibility for global installations.

Enclosure Type: IP65 (Type 4/12) – The rugged enclosure protects against dust ingress and low-pressure water jets, making it ideal for wet, dusty, or corrosive environments.

Control Voltage: 100-240V AC (for 5-480 A units) – The control circuit accepts a wide range of AC voltages, simplifying integration with existing control systems.

Weight: 15.00 lbs (6.80 kg) – Compact and manageable for installation.

Industry Applications: Where the 150-F43FAD Excels

Pumping Systems: In water treatment plants, soft starting prevents pressure surges and water hammer. The 150-F43FAD’s undervoltage protection halts the motor if line voltage drops, safeguarding pumps from damage during brownouts.

Conveyor Lines: Material handling systems benefit from smooth acceleration, reducing belt wear and product spillage. The seven programmable start modes allow operators to fine-tune the starting torque for different load types.

HVAC Equipment: Large fans and compressors in commercial buildings require controlled starts to avoid mechanical shock. The built-in electronic motor overload protection and thermal memory help maintain safe operating temperatures.

Installation & Setup Guidance

Mount the 150-F43FAD in a location that allows adequate airflow around the IP65 enclosure. Use appropriately rated copper conductors for the 43 A rating. Connect the three-phase input line to the L1, L2, and L3 terminals, and the motor leads to T1, T2, and T3. Apply control voltage (100-240V AC) to the control terminals as per the wiring diagram provided with the unit.

Programming is accomplished via the five-button keypad on the front panel. Use the up and down arrows to navigate menus and select the desired start mode. The LCD display provides clear feedback during setup. For initial commissioning, verify all parameter settings match your motor nameplate data.

Maintenance & Reliability

Routine inspection should focus on the enclosure seals and terminal connections. Check for signs of overheating or corrosion, especially in harsh environments. The 150-F43FAD includes thermal memory to track motor temperature, which helps prevent nuisance trips and extends motor life. Because this is a solid-state device, there are no moving contacts to wear out, reducing maintenance intervals compared to electromechanical starters.

Selection Guide & Purchasing Advice

Before ordering the Allen-Bradley 150-F43FAD, verify that your motor’s full-load current does not exceed 43 A and that your supply voltage matches the 230V AC, 3-phase input. Confirm that the IP65 enclosure meets your environmental requirements. The controller supports up to two inputs and four outputs via the communication network, so plan your control wiring accordingly.

For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help you confirm lifecycle status and recommend compatible accessories if needed.

Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
