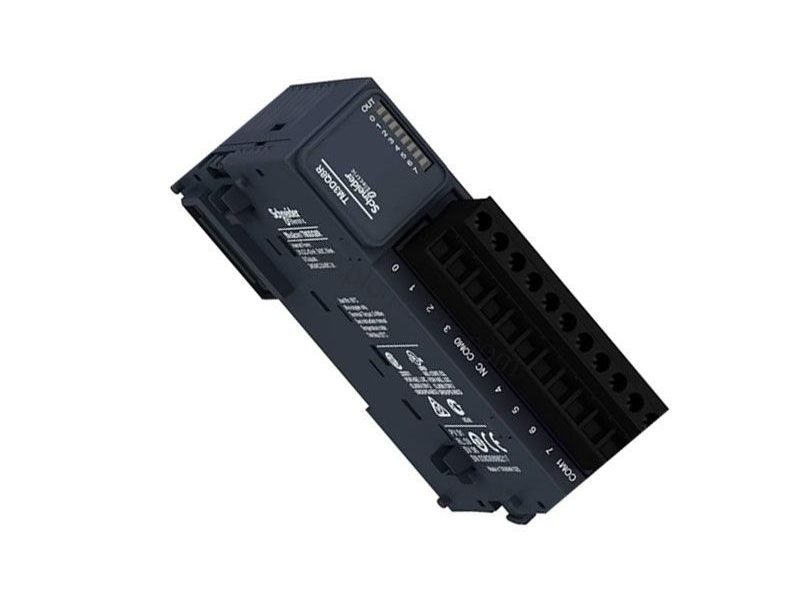

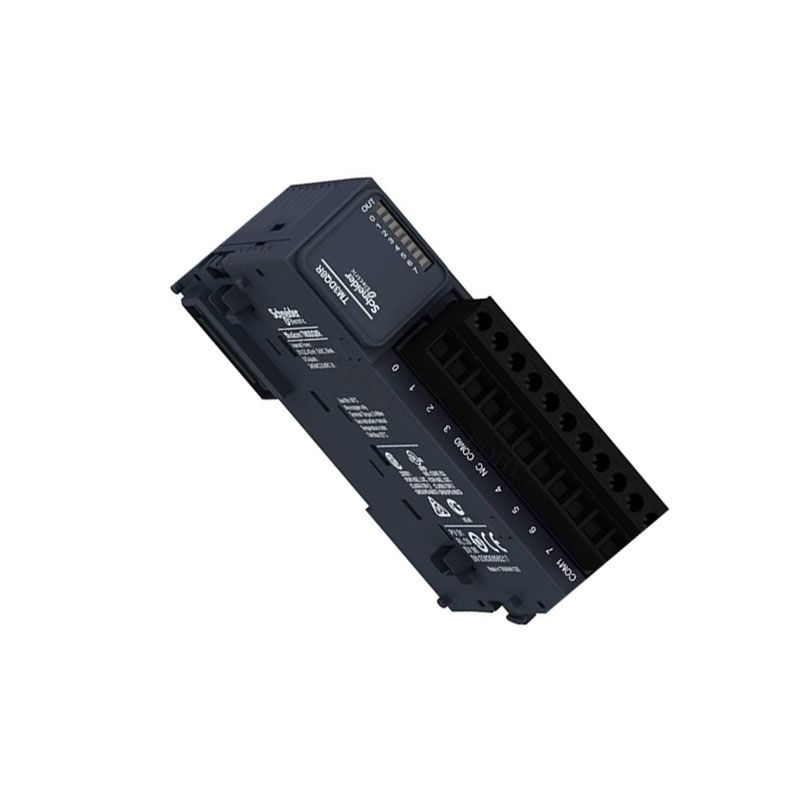

Schneider TWDPTO220DT TM2 PTO Module for Stepper Motor Control

Product Overview

When precise stepper motor control is required without feedback, the Schneider TWDPTO220DT TM2 PTO extension module delivers reliable open-loop positioning. This module generates square wave pulse trains for specified pulse counts and cycle times, enabling simple ramp-up, run, and ramp-down sequences or more complex profiles. As part of the Modicon TM2 family, the TWDPTO220DT integrates seamlessly into Schneider Electric automation systems.

Technical Specifications

The TWDPTO220DT offers 2 pulse output channels running at 200K Hz per channel (100K Hz for A/B phase). It includes 4 digital inputs supporting source or sink wiring, with a normal input voltage of 24 VDC and closing input voltage from +15 V to +30 VDC. The 2 digital outputs provide drive enabling (DRV_ENB) and counter clearance (DRV_CLR) signals, rated at 24 VDC and 0.1 A with overload protection below 200 mA. Power supply voltage is 24 V with a permissible range of 18 V to 31.2 V.

Industry Applications

In packaging machinery, the TWDPTO220DT controls stepper motors for precise label placement or filling operations. For material handling systems, it manages conveyor indexing with programmable acceleration and deceleration profiles. The open-loop control approach eliminates the need for position feedback, simplifying system design and reducing component count.

Installation & Setup

Use shielded cables for digital inputs, outputs, and pulse outputs, keeping cable lengths under 3 meters to maintain signal integrity. For the power supply, unshielded cable is acceptable but shielded cable is recommended. Connect the external 24 V supply within 19.2 V to 30 V. The module supports source or sink input wiring, offering flexibility for various sensor types.

Compatibility & Integration

The TWDPTO220DT works with Modicon TM2 programmable logic controllers. Its RS422 standard pulse outputs (7 mA/pulse) are compatible with stepper drives accepting CW/CCW signals. The open-collector digital outputs can drive source inputs from 5 V to 24 V up to 0.1 A.

Maintenance & Reliability

With built-in reversed polarity prevention and overload protection on outputs, the TWDPTO220DT ensures robust operation. The module operates without derating from 0 to 55 °C. Regular inspection of cable connections and verification of supply voltage within the permissible range help maintain long-term reliability.

Selection Guide

Before ordering, confirm that your stepper drive accepts RS422 differential signals or open-collector inputs. Verify the external 24 V supply meets the 19.2 V to 30 V range. For current availability and lifecycle status, contact BluePLC Industrial.
