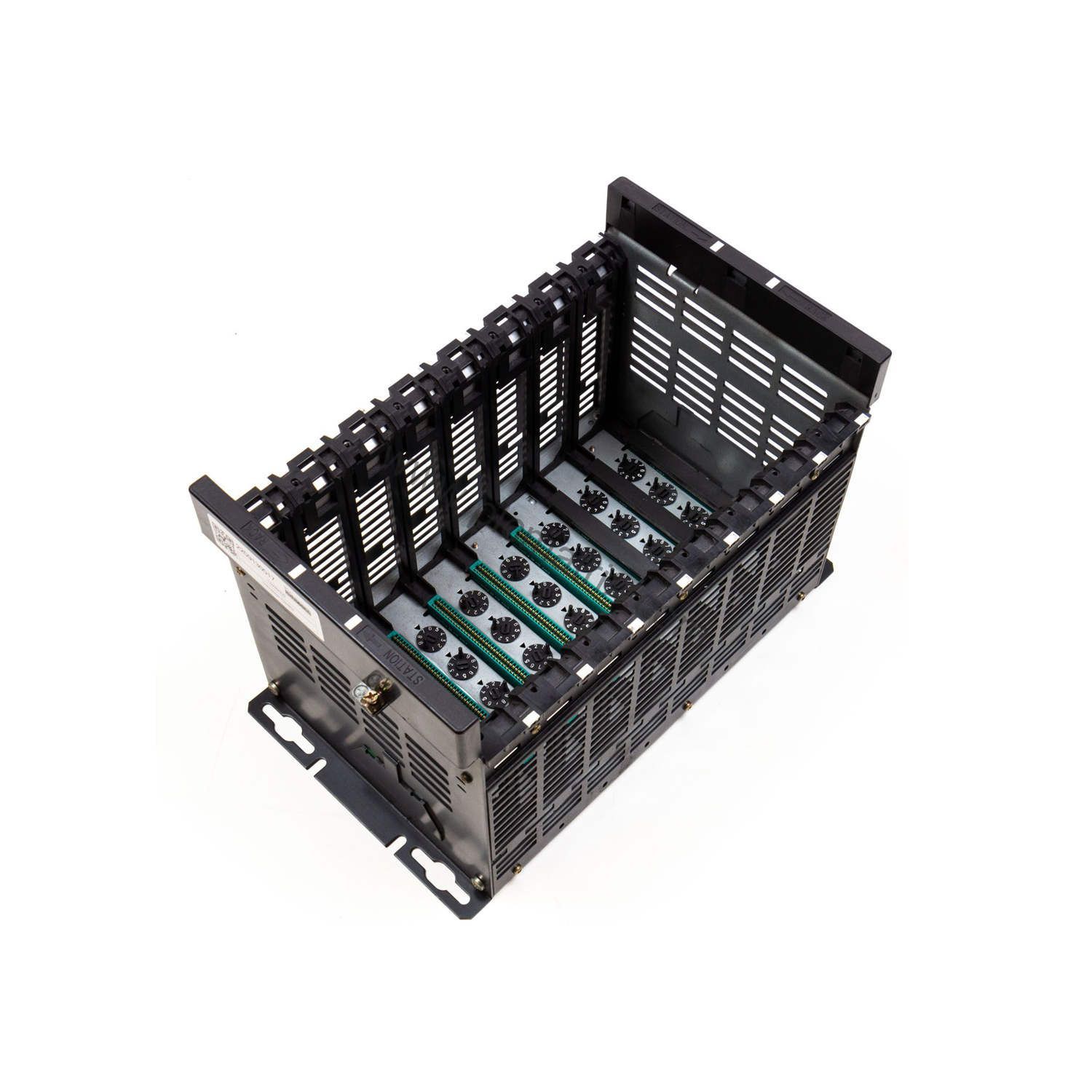

Schneider TSXRKY12 Modicon Premium Non-Extendable Rack, 12 Slots

Product Overview

When building a compact yet robust control system, engineers often face the challenge of limited expansion options without sacrificing reliability. The Schneider Electric TSXRKY12 non-extendable rack addresses this need by providing a dedicated platform for single rack configurations within the Modicon Premium automation platform. With twelve available slots, this rack offers ample space for power supplies, processors, and I/O modules, ensuring a structured and efficient setup for industrial applications.

Technical Specifications Breakdown

The TSXRKY12 supports an ambient operating temperature range of 0 to 60 °C and can be stored between -25 and 70 °C, making it suitable for various industrial environments. It operates reliably in relative humidity from 5 to 95% without condensation and at altitudes up to 2000 meters. The rack carries an IP20 degree of protection and a pollution degree rating of 2, indicating resistance to solid objects and dust. Weighing 2.31 kg (5.1 lbs), it is easy to handle during installation.

Industry Applications

In manufacturing facilities, the TSXRKY12 serves as the backbone for machine control systems, where its non-extendable design ensures a fixed, predictable architecture. For process automation in industries like water treatment or packaging, the rack's compatibility with TSXPSY power supplies and TSXP57 processors allows for seamless integration. Its robust environmental ratings make it ideal for factory floors where temperature and humidity fluctuations occur.

Installation & Setup Guidance

Mounting the TSXRKY12 is straightforward with two options: panel mounting using four M6 screws or DIN rail mounting with clips for a 35 mm symmetrical rail. Ensure the rack is securely fastened to avoid vibration issues. Position it within the specified temperature and humidity ranges for optimal performance. No special tools are required beyond standard screwdrivers for the M6 screws.

Compatibility & Integration

The TSXRKY12 is designed exclusively for Modicon Premium systems and is compatible with TSXPSY power supplies, TSXP57 processors, specific application modules, and I/O modules. This rack is not extendable, so plan your slot allocation carefully. It carries CE marking and certifications including UL 508 and IEC 61131-2, ensuring compliance with international standards.

Selection Guide & Purchasing Advice

Before ordering, verify that your system requires a single rack configuration and that twelve slots meet your I/O count. The TSXRKY12 is available through plcmatrix.com, a trusted supplier of industrial automation components. Contact their team to confirm current availability and lifecycle status, as this model may be subject to obsolescence. Ensure you have the correct mounting hardware and environmental conditions for deployment.
