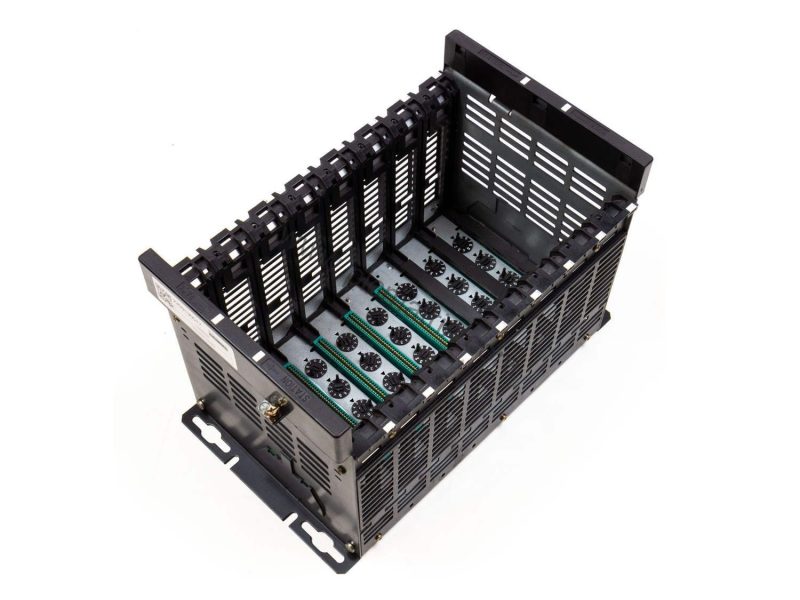

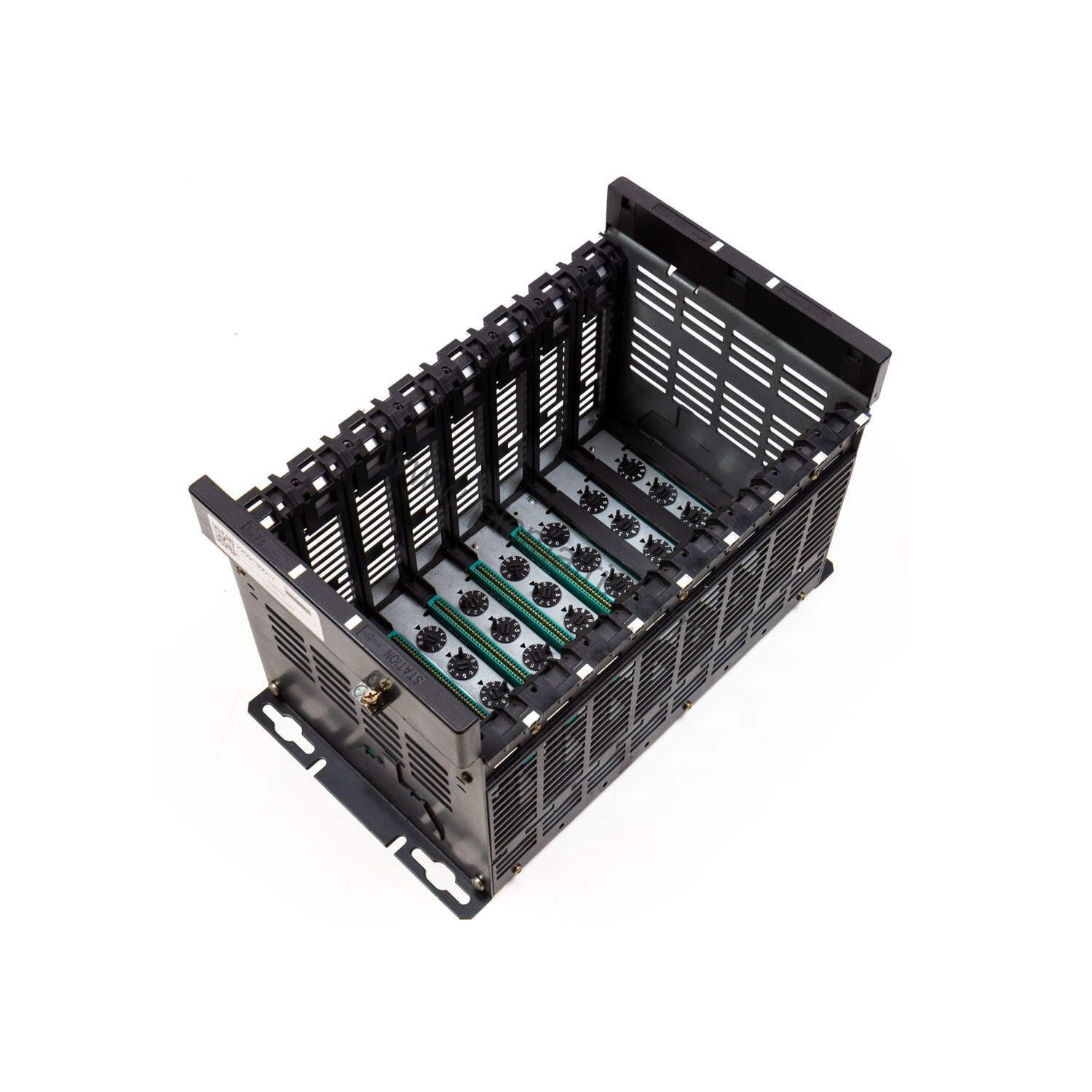

Schneider TSXRKY12 Modicon Premium Non-Extendable Rack 12 Slots

Product Introduction

When building a structured control system, the rack forms the backbone of your automation architecture. The Schneider Electric TSXRKY12 non-extendable rack provides a reliable foundation for single rack configurations within the Modicon Premium platform. With twelve available slots, this rack accommodates TSXPSY power supplies, TSXP57 processors, specific application modules, and I/O modules, enabling you to create a tailored control solution. Its compact design and straightforward mounting options reduce installation time and labor costs, making it a cost-effective choice for industrial applications.

Technical Specifications Breakdown

The TSXRKY12 offers key specifications that directly impact system reliability and installation efficiency. Operating within an ambient temperature range of 0 to 60 °C and storage from -25 to 70 °C, this rack performs consistently in demanding industrial environments. The relative humidity tolerance of 5 to 95% without condensation ensures dependable operation even in humid conditions. With an IP20 degree of protection, the rack resists solid objects and dust ingress, reducing maintenance needs and extending service life. The pollution degree 2 rating further enhances durability in typical industrial settings. These specifications translate to lower total cost of ownership by minimizing downtime and replacement frequency.

Installation & Setup Guidance

Mounting the TSXRKY12 is straightforward, supporting both panel and DIN rail methods. For panel mounting, use four M6 screws to secure the rack firmly. Alternatively, attach it to a 35 mm symmetrical DIN rail using the integrated clips. This flexibility allows you to choose the most cost-effective mounting approach for your cabinet layout. Ensure the rack is installed in a location with adequate ventilation and within the specified altitude range of 0 to 2000 meters to maintain optimal performance. Proper installation reduces labor costs and prevents future alignment issues.

Maintenance & Reliability

The TSXRKY12 requires minimal maintenance due to its robust design and IP20 protection. Regularly inspect the rack for dust accumulation and ensure the mounting screws or DIN rail clips remain tight. The non-extendable design eliminates expansion-related failures, enhancing long-term reliability. By following a simple inspection schedule, you can maximize uptime and avoid costly replacements. This reliability directly supports a lower total cost of ownership over the system's lifecycle.

Compatibility & Integration

The TSXRKY12 is fully compatible with the Modicon Premium automation platform. It supports TSXPSY power supplies, TSXP57 processors, specific application modules, and I/O modules, allowing seamless integration into existing systems. This broad compatibility reduces engineering time and spare parts inventory costs. When planning your system, verify that all modules are rated for the same environmental conditions to ensure consistent performance.

Buying Guide & Purchasing Advice

Before purchasing the TSXRKY12, confirm that your application requires a single rack configuration, as this rack is non-extendable. Verify the number of slots needed and ensure compatibility with your chosen modules. BluePLC Industrial offers this rack with fast shipping and competitive pricing, helping you maintain project budgets. Contact BluePLC Industrial to verify current lifecycle status and availability before ordering.
