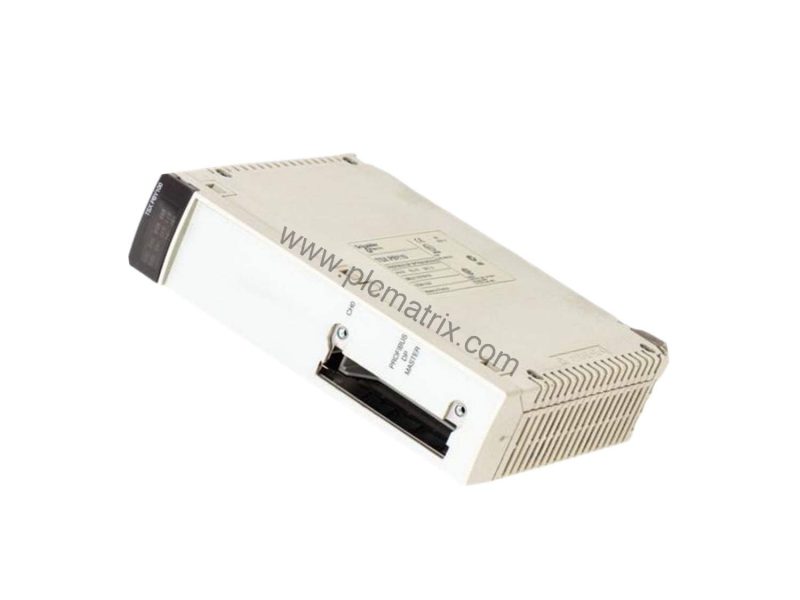

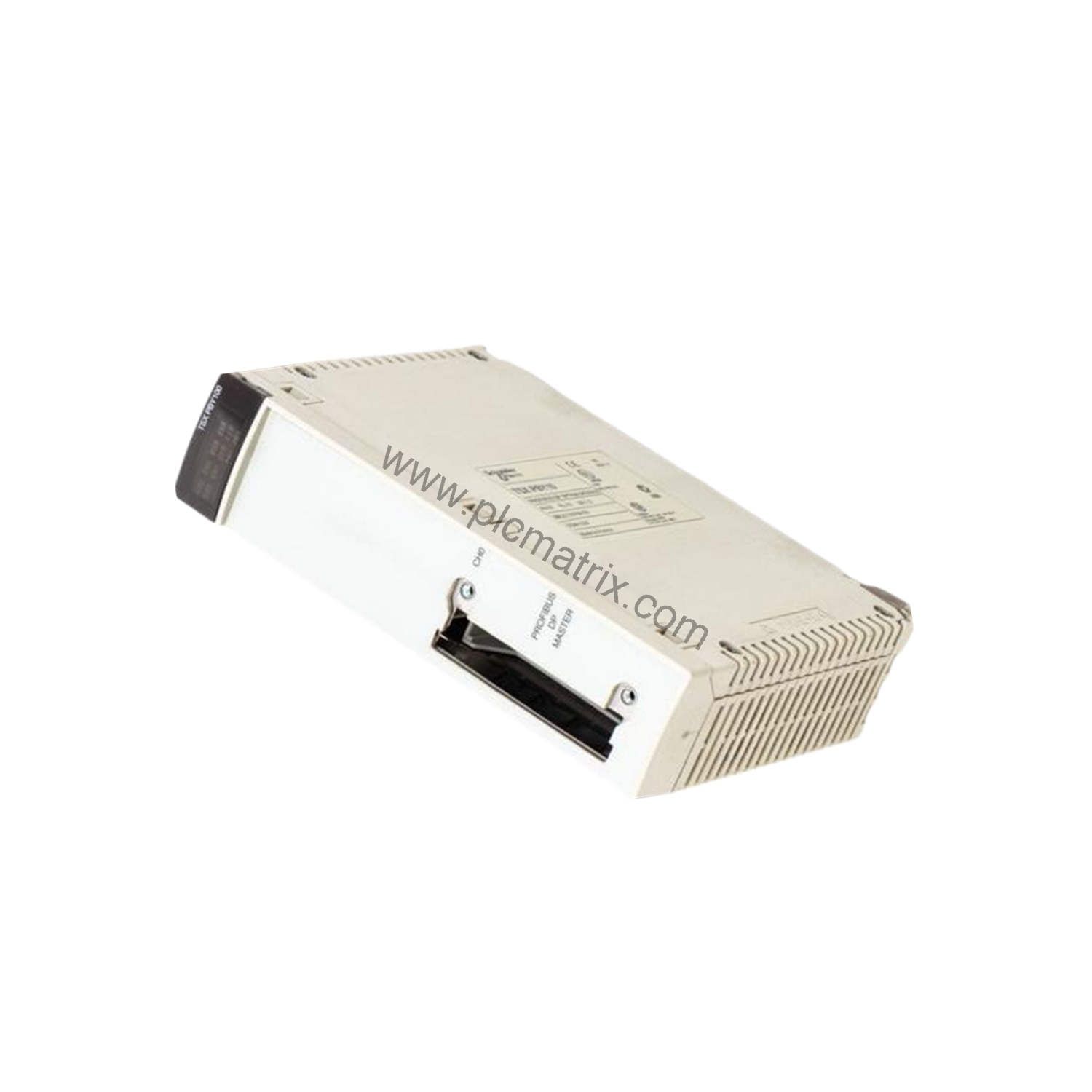

Schneider TSXPBY10 Profibus-DP Option Module for Modicon Premium PLCs

Product Introduction

When expanding a Modicon Premium PLC network requires reliable fieldbus communication, the Schneider Electric TSXPBY10 delivers a dedicated Profibus-DP solution. This option module integrates seamlessly into existing Premium racks, providing a versatile interface for distributed automation systems. As part of the TSX Micro PLCs product line, the TSXPBY10 is engineered for high-speed data exchange and robust performance in industrial environments.

Technical Specifications Breakdown

The TSXPBY10 supports transmission rates from 9.6 Kbit/s to 12 Mbit/s, enabling flexible network configuration based on distance and device requirements. At the lower rate of 9.6 Kbit/s, the maximum segment length reaches 1200 meters, allowing wide-area installations. With repeaters, the module can manage up to 124 slave devices, offering extensive scalability for complex processes. The input/output data size is 4096 inputs and 4096 outputs, ensuring ample capacity for large data sets. Power is supplied by the rack at 5 V DC, with a current consumption of 400 mA, simplifying integration without additional power sources.

Industry Applications

In manufacturing lines requiring synchronized motion control, the TSXPBY10 connects drives, sensors, and actuators to a Premium PLC over Profibus-DP. Its high transmission rate of 12 Mbit/s supports fast data updates, critical for real-time quality checks. For building automation systems spanning long distances, the 1200-meter segment length at 9.6 Kbit/s reduces the need for additional infrastructure. The module's compliance with IEC 68-2-6 vibration and IEC 68-2-27 shock standards ensures reliable operation in heavy machinery environments.

Installation & Setup Guidance

Mount the TSXPBY10 directly into an available slot on the Modicon Premium rack. Connect the Profibus-DP cable to the front D-sub connector, ensuring proper termination at both ends of the segment. Configure the module's address and baud rate using the PLC programming software, matching the network master settings. Verify that the 5 V DC supply from the rack meets the 400 mA current requirement to avoid power issues. For segments exceeding 1200 meters, install repeaters as needed to maintain signal integrity.

Maintenance & Reliability

Regularly inspect cable connections and termination resistors to prevent communication dropouts. The TSXPBY10 operates reliably in temperatures from 0 °C to +60 °C and can be stored between -25 °C and +70 °C, making it suitable for varied climates. With humidity tolerance from 30% to 95% non-condensing, the module withstands damp conditions without performance degradation. Its compliance with IEC 1000-4-2 electrostatic discharge immunity adds protection against static events common in industrial settings.

Compatibility & Integration

The TSXPBY10 is specifically designed for Modicon Premium PLCs, ensuring straightforward integration without additional adapters. It communicates over the Profibus-DP protocol, a widely adopted fieldbus standard for factory automation. The module supports up to 124 slaves when repeaters are used, allowing connection of multiple remote I/O stations, drives, and valve islands. For systems requiring high data throughput, the 12 Mbit/s transmission rate handles large data exchanges efficiently.

Selection Guide & Purchasing Advice

Before ordering the TSXPBY10, confirm that your Modicon Premium rack has an available slot and can supply the required 5 V DC power. Verify that your network master supports Profibus-DP and that the baud rate matches your application needs. For extended networks, plan for repeaters if the segment length exceeds 1200 meters. BluePLC Industrial stocks the TSXPBY10 and can provide availability and lead time information. Contact our team to ensure this module meets your specific automation requirements.
