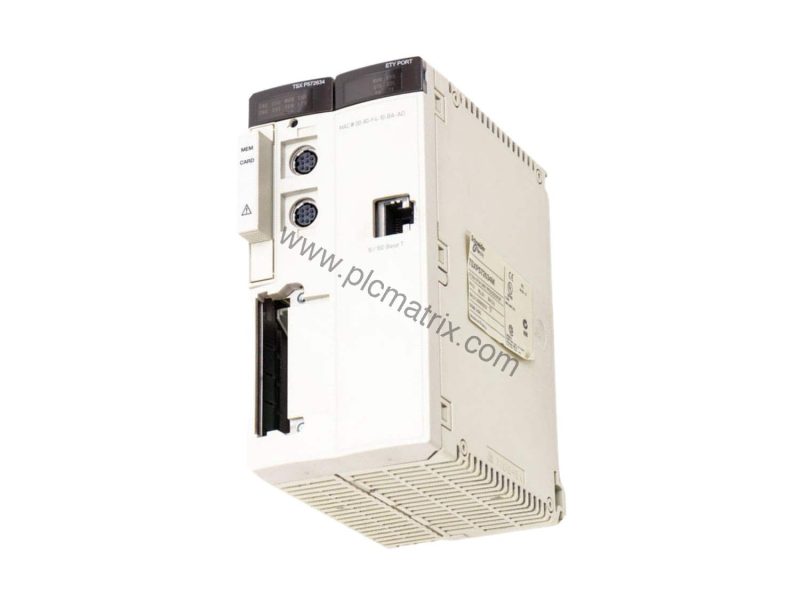

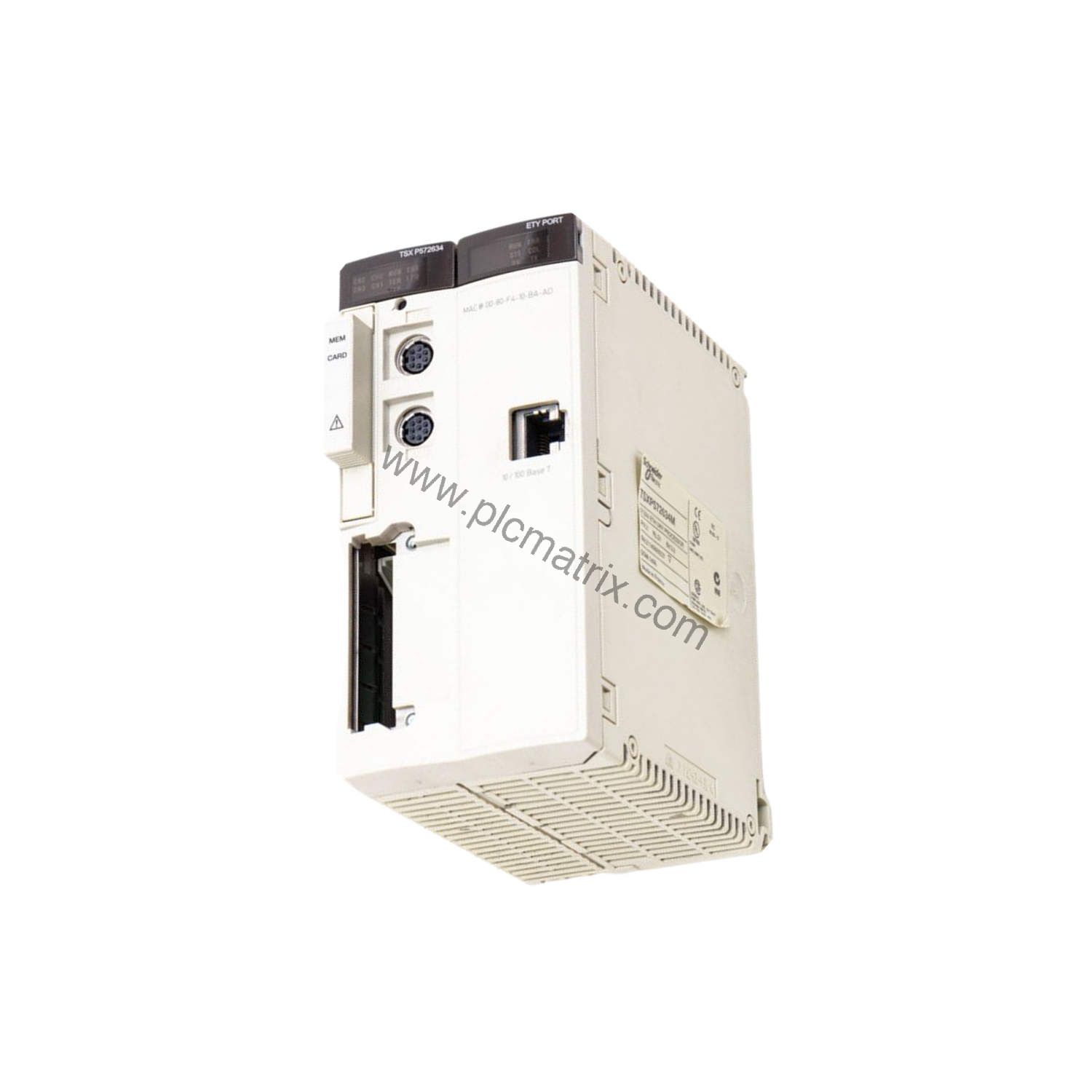

Schneider TSXP572634M TSX Micro PLC Processor for Advanced Automation

Product Overview

Industrial automation has evolved from simple relay logic to sophisticated networked control systems. The Schneider Electric TSXP572634M processor exemplifies this progression, serving as a powerful Unity processor within the Modicon Premium automation platform. Designed for complex control tasks, it manages both analog and discrete I/O with a capacity of up to 80 analog inputs and outputs and 1024 discrete I/O points. This processor enables a wide range of automation solutions, from manufacturing lines to process control applications.

Technical Specifications

The TSXP572634M delivers robust performance with an execution time of 0.19 µs for Boolean operations without a PCMCIA card and 0.21 µs with one installed. It supports up to 16 racks and includes integrated connection types: a non-isolated serial link with two female mini DIN connectors operating at 19.2 kbit/s and Ethernet TCP/IP via RJ45 at 10/100 Mbit/s. The processor features 48 Kwords of internal RAM for program and data without a PCMCIA card, expandable with optional cards offering up to 160 Kwords for program and 2688 Kwords for additional data storage. The application structure includes one master task, one fast task, and 64 event tasks, providing flexibility for diverse automation needs.

Industry Applications

This processor excels in mid-sized automation projects requiring high I/O counts and fast processing. In manufacturing, it controls assembly lines with 1024 discrete I/O points, managing sensors and actuators efficiently. For process industries, the 80 analog I/O channels handle temperature, pressure, and flow control loops. The Ethernet TCP/IP connectivity allows seamless integration into plant-wide networks, enabling data exchange with SCADA systems and other controllers. The TSXP572634M is particularly suited for applications needing multiple communication protocols, supporting one fieldbus module, four AS-Interface bus modules, and one CANopen interface.

Compatibility and Integration

The TSXP572634M integrates with the Modicon Premium automation platform and is programmed using Unity Pro software. It supports up to 16 racks with 4/6/8 or 8/12 slot configurations, allowing flexible I/O expansion. The two PCMCIA slots accept memory extension cards and communication cards, enhancing functionality. The processor works with a wide range of discrete and analog I/O modules from the TSX Micro series, making it a versatile choice for system upgrades or new installations. For reliable operation, ensure compatibility with existing hardware and software versions before deployment.

Maintenance and Reliability

The TSXP572634M is designed for long-term reliability in industrial environments. It operates in ambient air temperatures from 32 to 140 °F (0 to 60 °C) and can be stored from -13 to 158 °F (-25 to 70 °C). The IP20 degree of protection suits clean, controlled environments. Regular inspection of the five front-panel LEDs—indicating processor run, Ethernet status, and system faults—helps monitor performance. The RESET button triggers a cold start when pressed, useful for recovery after faults. Follow manufacturer guidelines for periodic testing and ensure firmware updates are applied as needed.

Selection Guide and Purchasing Advice

When selecting the TSXP572634M, verify that your system uses the Modicon Premium platform and Unity Pro software. Confirm the required I/O count—up to 80 analog and 1024 discrete—and ensure the rack configuration supports your expansion needs. Consider optional PCMCIA cards for additional memory or communication capabilities. For current availability and lifecycle status, contact plcmatrix.com, a trusted supplier of industrial automation components. They offer new, surplus, and obsolete parts from leading brands, ensuring you find the right solution for your application.
