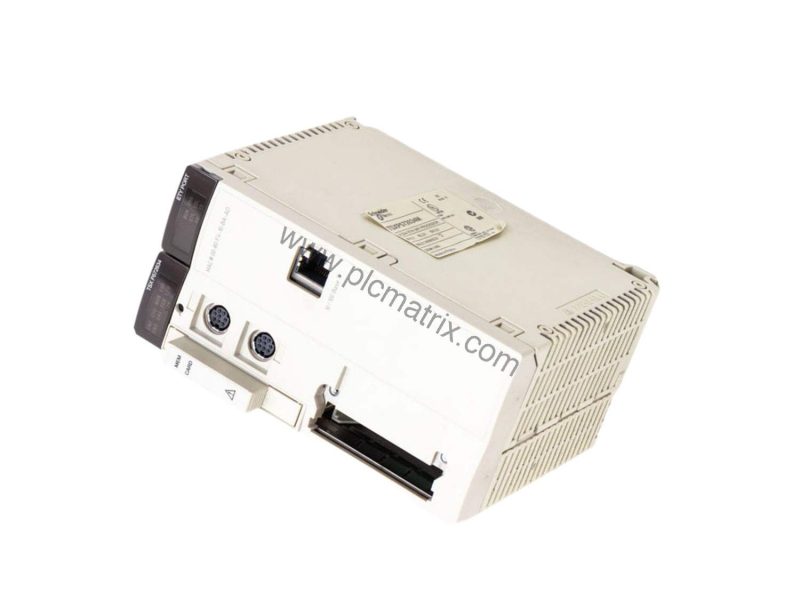

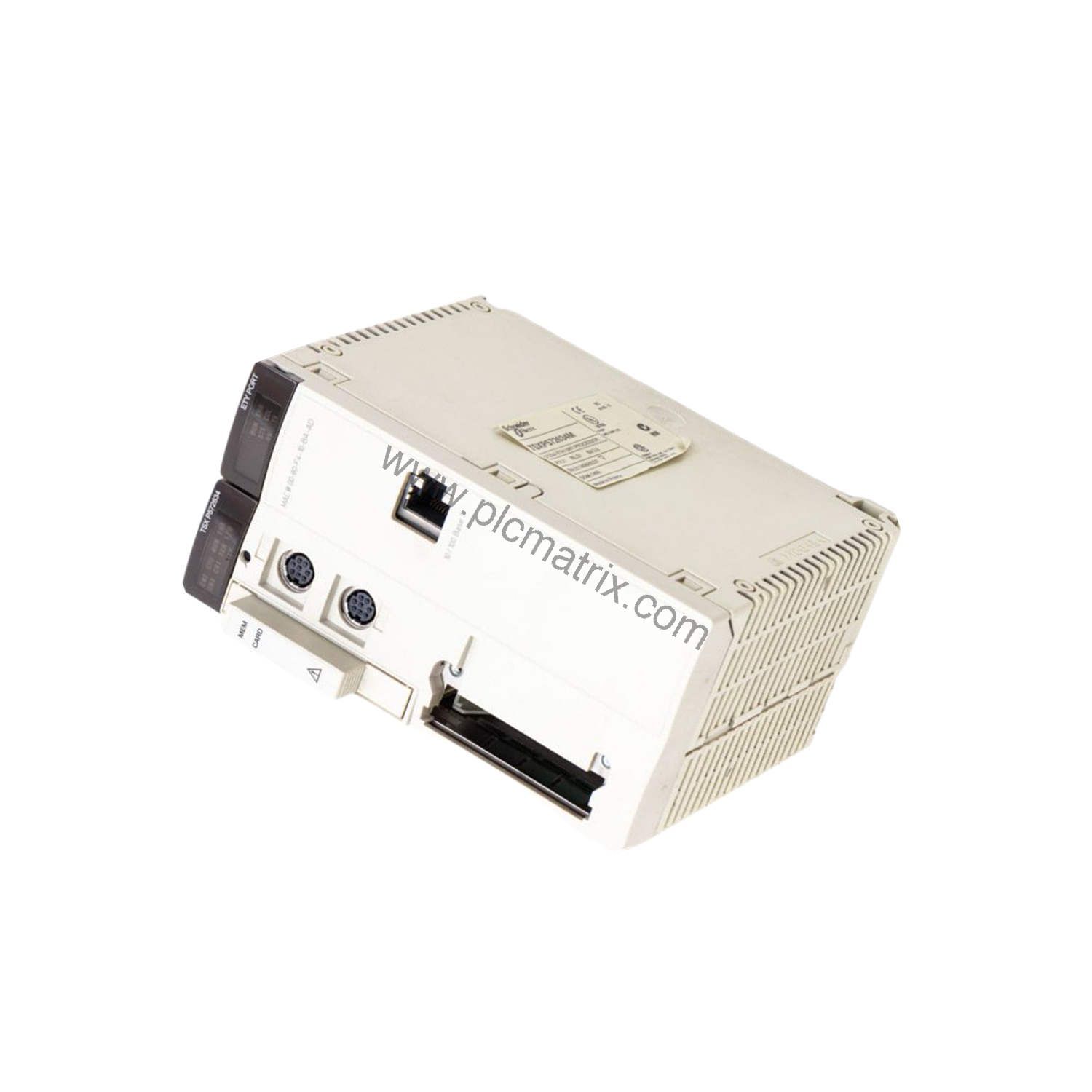

Schneider TSXP572634M TSX Micro PLC Processor for Advanced Automation

Product Overview

When complex automation tasks demand reliable processing and flexible I/O handling, the Schneider TSXP572634M delivers. Part of the TSX Micro PLCs family, this processor is engineered for sophisticated control applications requiring both analog and discrete signal management. With capacity for up to 80 analog inputs and outputs and 1024 discrete I/O points, it provides a versatile platform for a wide range of industrial automation solutions.

Technical Specifications Breakdown

The TSXP572634M excels in processing speed and memory management. Execution time for Boolean operations reaches 0.19 µs without a PCMCIA card and 0.21 µs with one installed, ensuring rapid logic handling. The application structure includes one master task, one fast task, and 64 event tasks, allowing precise control of time-critical processes. Memory is robust: internal RAM provides 48 Kwords for program and data without a PCMCIA card, while with a card, data storage expands to 48 Kwords plus 160 Kwords for program and 2688 Kwords for additional data. The processor also supports up to 16 racks, enabling scalable system architectures.

Industry Applications

In manufacturing lines requiring precise analog control—such as temperature regulation or flow monitoring—the TSXP572634M handles up to 30 simple process control loops. Its 24 application-specific channels further extend functionality for specialized tasks like high-speed counting or positioning. The integrated Ethernet TCP/IP (RJ45, 10/100 Mbit/s) and non-isolated serial link (19.2 kbit/s) ensure seamless integration into existing plant networks, making it ideal for both discrete manufacturing and process industries.

Installation & Setup Guidance

Mount the TSXP572634M in a suitable enclosure with adequate ventilation, as it operates within an ambient temperature range of 32 to 140 °F (0 to 60 °C). The module format is double-width, requiring two slot positions in the rack. Connect the power supply providing 1650 mA at 5 V DC. Use the two PCMCIA slots for memory extension or communication cards as needed. The front panel features five LEDs for status monitoring: RUN, ERR, I/O fault, and Ethernet diagnostics. Press the RESET button to trigger a cold start of the PLC.

Compatibility & Integration

The TSXP572634M integrates with Schneider's TSX Micro racks and supports up to 16 racks. Communication options include one fieldbus module (not used if CANopen is active), four AS-Interface bus modules, and one CANopen interface. The processor is compatible with Unity Pro software and supports Concept programming. It also features Transparent Ready technology for easy network integration.

Maintenance & Reliability

Routine inspection of the front panel LEDs helps verify operational status. Ensure the ambient temperature remains within 32 to 140 °F and relative humidity between 10 and 95% without condensation. The IP20 protection degree requires installation in a clean, dry environment. Periodically check PCMCIA card connections and ensure firmware is up to date. For extended reliability, follow the manufacturer's guidelines for periodic system testing.

Buying Guide

Before purchasing the TSXP572634M, verify compatibility with your existing rack system and power supply. Confirm the required number of PCMCIA cards for your memory and communication needs. BluePLC Industrial offers this processor with fast shipping and expert support to help you select the right configuration for your application. Contact our team for current lifecycle status and availability.
