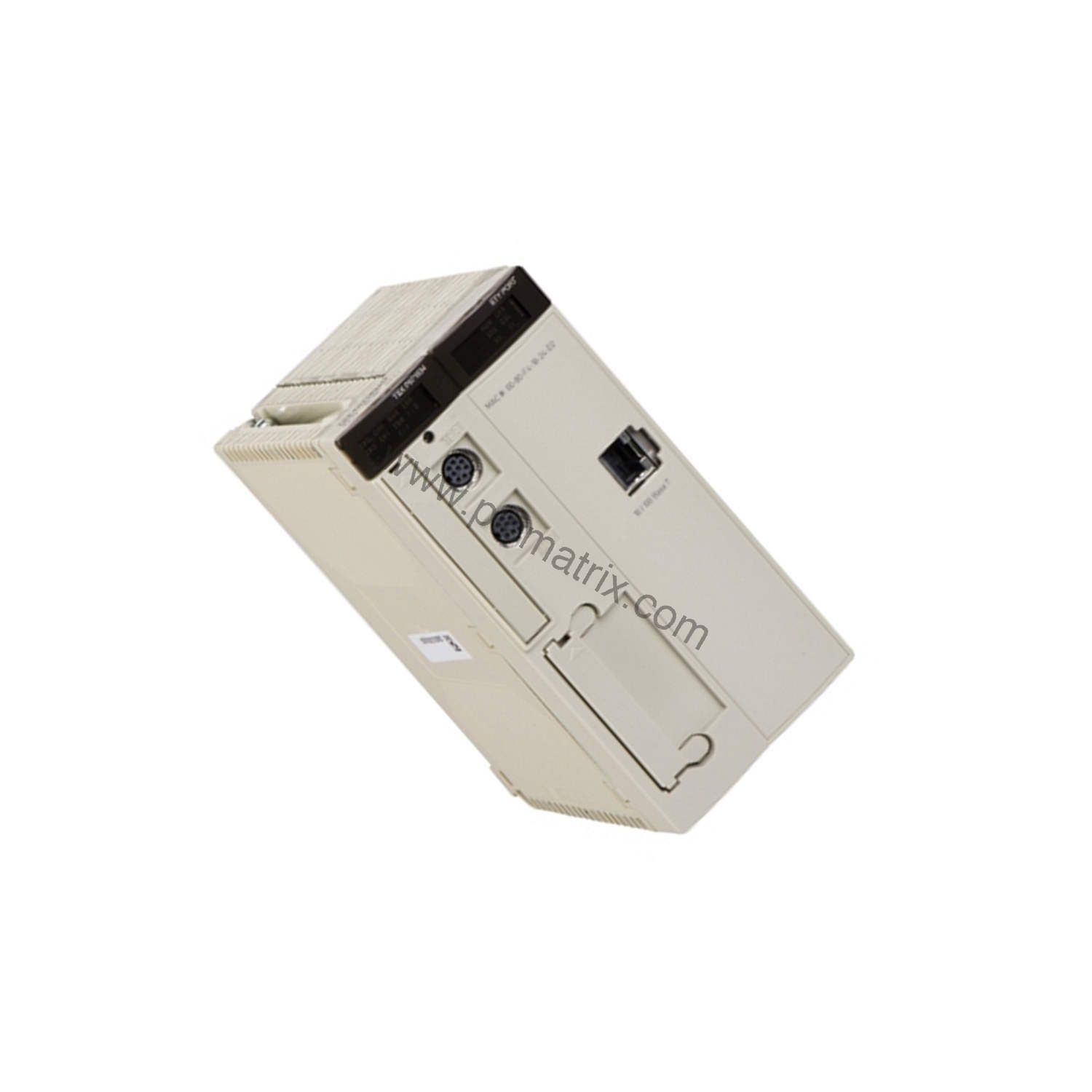

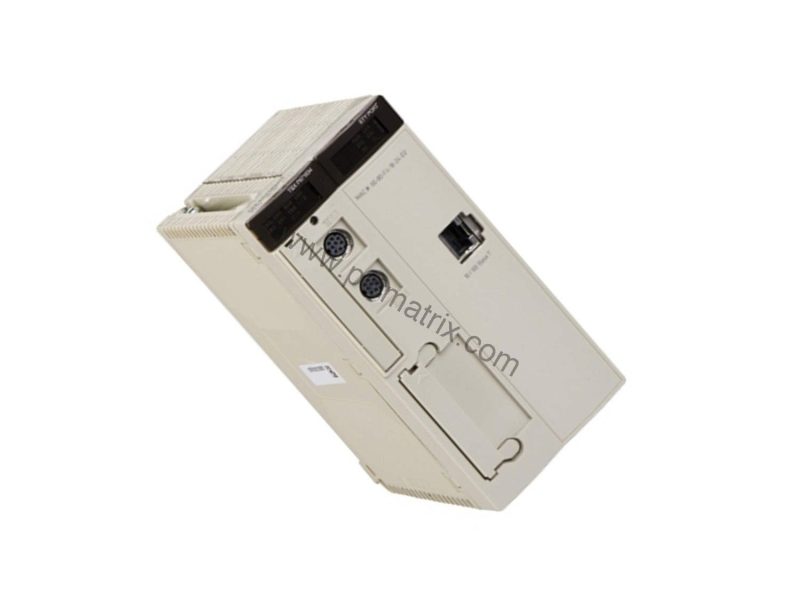

Schneider TSXP57203M PLC Processor for Cost-Efficient Automation

Product Introduction

When industrial automation demands both speed and cost efficiency, the Schneider TSXP57203M from the TSX Micro PLC series provides a balanced solution. This double-format PL7 processor handles complex control tasks with a fast task overhead of 0.3 ms and a master task overhead of 1 ms, reducing cycle times and improving throughput. By integrating Ethernet TCP/IP and RS485 serial links, it simplifies network integration and lowers installation costs. The TSXP57203M is designed for applications requiring up to 512 discrete I/O and 24 analog I/O, offering scalability without unnecessary expense.

Technical Specifications Breakdown

The TSXP57203M features a memory capacity of 224 KB program and 96 KB data when using a PCMCIA card, with an additional 256 KB storage option. This enables efficient program execution for mid-sized applications, minimizing the need for external memory upgrades. Execution time per Boolean instruction is 0.19 µs without a PCMCIA card and 0.25 µs with it, supporting fast logic processing that reduces machine cycle time. The system overhead of 0.3 ms for fast tasks and 1 ms for master tasks ensures rapid response to critical events, directly impacting productivity. Current consumption is 1650 mA at 5 V DC, indicating moderate power usage that keeps operational costs low. The processor supports up to 2 communication modules, allowing flexible networking without over-investing in hardware.

Industry Applications

In packaging lines, the TSXP57203M's fast task overhead of 0.3 ms enables precise timing for labeling and sealing stations, reducing waste and improving output quality. For material handling systems, its 512 discrete I/O capacity manages multiple sensors and actuators efficiently, lowering per-point costs. In water treatment plants, the 24 analog I/O channels handle flow and level monitoring, while the Ethernet TCP/IP connection integrates with SCADA systems for centralized control, reducing downtime and maintenance expenses.

Installation & Setup Guidance

Mount the TSXP57203M in a standard rack configuration, supporting up to 2 racks with 12 slots or 4 racks with 4/6/8 slots. Ensure the 5 V DC power supply delivers at least 1650 mA to meet current consumption requirements. Connect the Ethernet TCP/IP via RJ45 for network integration, and use the female mini DIN RS485 serial link at 19.2 kbit/s for legacy device communication. Verify that the PCMCIA card is properly inserted if additional memory is needed. Follow standard wiring practices for discrete and analog I/O modules to avoid signal interference.

Maintenance & Reliability

Regular inspection of the TSXP57203M's LED indicators—RUN (green), I/O fault (red), ERR (red), and TER (yellow)—helps identify issues early, preventing costly downtime. Operate within the ambient temperature range of 32 to 140 °F (0 to 60 °C) and relative humidity of 10 to 95% without condensation to ensure reliable performance. The IP20 protection degree requires installation in a clean, dry enclosure. Periodic checks of the PCMCIA card connection and communication module seating can extend service life and reduce replacement costs.

Compatibility & Integration

The TSXP57203M integrates with Schneider's TSX Micro PLC ecosystem, supporting up to 2 communication modules for Ethernet TCP/IP and RS485 serial links. It is compatible with PL7 Junior/Pro software for programming and configuration. The processor works with up to 512 discrete I/O and 24 analog I/O modules, allowing seamless expansion. For network integration, the Ethernet TCP/IP port connects to higher-level control systems, while the RS485 link supports Modbus-based devices. This compatibility reduces integration effort and associated costs.

Buying Guide & Purchasing Advice

Before purchasing the TSXP57203M, verify that your application requires the 224 KB program memory and 512 discrete I/O capacity. Confirm that your power supply can deliver 1650 mA at 5 V DC. Ensure compatibility with existing TSX Micro racks and I/O modules. BluePLC Industrial offers this processor with reliable availability and support. Contact our team to confirm current lifecycle status and ensure the TSXP57203M meets your automation needs for cost-effective operation.
