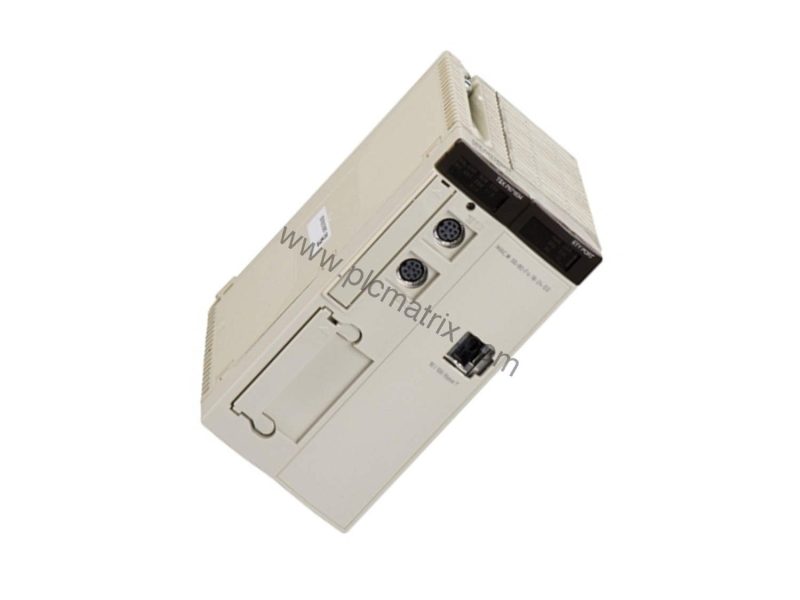

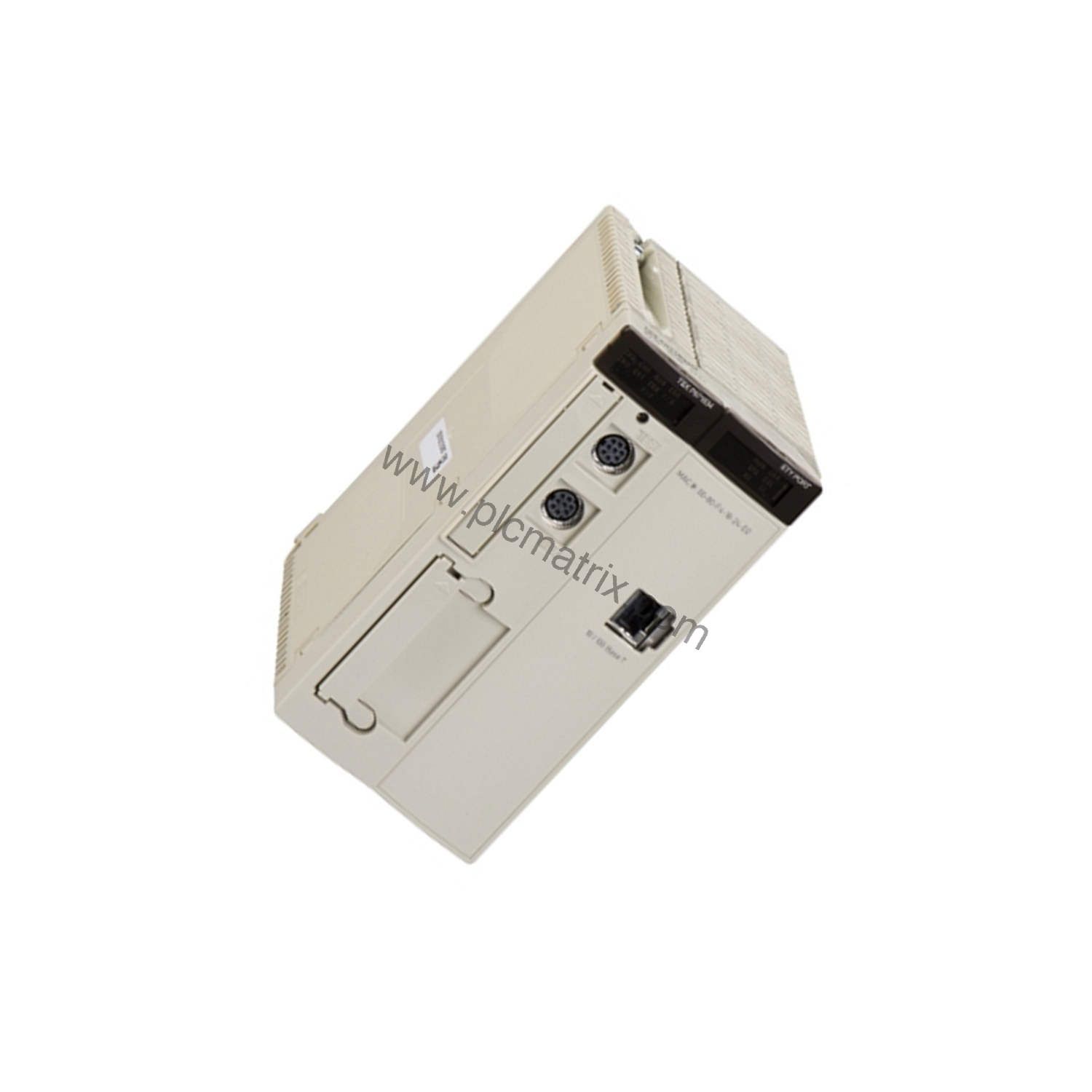

Schneider TSXP571634 Unity Processor for Modicon Automation

Product Overview

When your automation system demands reliable processing for extensive I/O handling, the Schneider TSXP571634 Unity Processor delivers. This Modicon series controller supports up to 512 discrete I/O points and 24 analogue I/O channels, making it a solid choice for medium-to-large control applications. With eight application-specific channels, it handles targeted tasks without extra hardware. The TSXP571634 operates on a 5 VDC supply with a current draw of 1650 mA, balancing performance with energy efficiency. Its IP20 protection suits clean industrial environments, and it works reliably at altitudes up to 2000 meters and ambient temperatures from 0 to 60 degrees Celsius. Storage range extends from -25 to 70 degrees Celsius. Whether you are upgrading an existing Modicon system or building a new line, this processor provides the processing backbone you need.

Technical Specifications Breakdown

The TSXP571634 offers a discrete I/O capacity of 512 points, allowing connection to numerous sensors, actuators, and pushbuttons. Its analogue I/O capacity of 24 channels supports analog signals like 4-20 mA or 0-10 V for precise process control. Eight application-specific channels enable dedicated functions such as high-speed counting or motion control without extra modules. Memory is split: with a PCMCIA card, you get 224 kB for program storage and 96 kB for data; without the card, 96 kB serves both program and data. This flexibility lets you scale memory based on application complexity. The processor draws 1650 mA from a 5 VDC supply, which is moderate for its capability. Operating temperature range of 0 to 60 degrees Celsius covers most factory floor conditions, while storage tolerance of -25 to 70 degrees Celsius protects during transport or downtime.

Industry Applications

The TSXP571634 fits well in manufacturing lines requiring centralized control of many discrete devices. For example, in a packaging plant, it can manage hundreds of sensors and actuators across multiple stations, using its 512 discrete I/O capacity. The 24 analogue channels handle temperature or pressure transmitters for quality monitoring. In material handling systems, the eight application-specific channels can manage encoder feedback for conveyor speed synchronization. This processor also suits water treatment facilities where discrete I/O controls pumps and valves, while analogue inputs monitor flow and level. By choosing the TSXP571634, engineers reduce the need for multiple smaller controllers, simplifying programming and maintenance.

Installation & Setup Guidance

Mount the TSXP571634 in a clean, dry enclosure with adequate ventilation. Ensure the backplane or rack provides a stable 5 VDC supply capable of delivering 1650 mA. Connect I/O modules according to the Modicon wiring guidelines, using proper fusing and surge protection. For memory expansion, insert a compatible PCMCIA card before powering up. Configure the processor using Unity Pro software, defining I/O maps and application-specific channel parameters. Verify all connections before applying power, and check LED indicators for normal operation. If using the processor without a PCMCIA card, note that program and data share 96 kB, so plan memory usage accordingly.

Maintenance & Reliability

Regular inspection of the TSXP571634 ensures long service life. Check ambient temperature stays within 0 to 60 degrees Celsius and that airflow around the unit is unobstructed. Periodically verify the 5 VDC supply voltage and current draw to detect power supply degradation. Keep the IP20 enclosure free of dust and debris. Since the processor has no user-serviceable internal parts, avoid opening the housing. If the unit fails, replace it with a known-good spare and return the faulty one for professional repair. Following these practices maximizes uptime and reduces unexpected downtime costs.

Compatibility & Integration

The TSXP571634 integrates with Schneider Modicon automation platforms using Unity Pro software. It works with standard Modicon discrete and analogue I/O modules, as well as specialty modules for communication or motion control. The processor communicates over the backplane with other rack modules. For network integration, use a communication adapter module to connect to Ethernet, Modbus, or other fieldbuses. The eight application-specific channels allow direct connection to incremental encoders or pulse trains without extra modules. When upgrading from older Modicon processors, verify backplane compatibility and power supply capacity to support the TSXP571634's 1650 mA draw.

Buying Guide & Purchasing Advice

Before ordering the TSXP571634, confirm your system's power supply can deliver 5 VDC at 1650 mA. Decide whether you need a PCMCIA card for expanded memory (224 kB program / 96 kB data) or if 96 kB shared memory suffices. Check that your I/O count does not exceed 512 discrete or 24 analogue points. BluePLC Industrial stocks the TSXP571634 and can advise on compatible accessories. Contact our team to verify current lifecycle status and availability before placing your order. We offer fast shipping and expert support to keep your project on schedule.
