Schneider TSXP57104M Unity Processor for TSX Micro PLCs - High-Performance Control

Product Overview

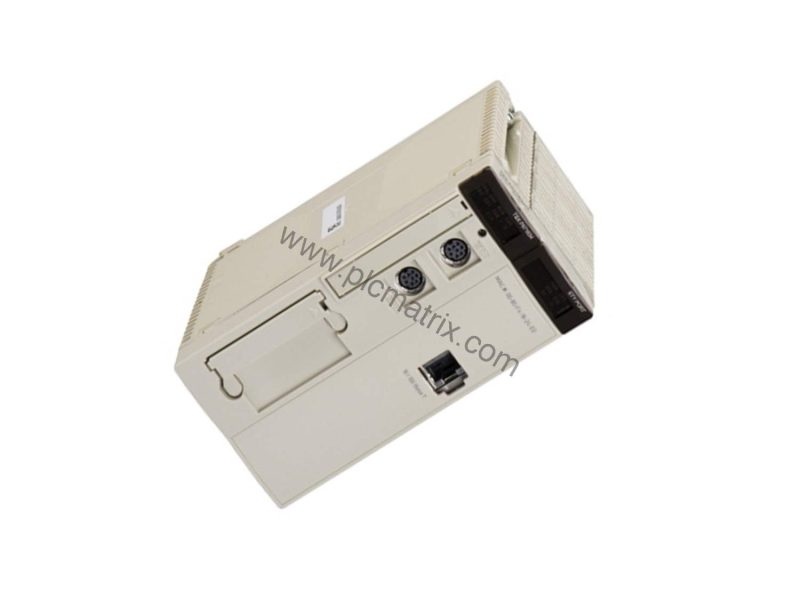

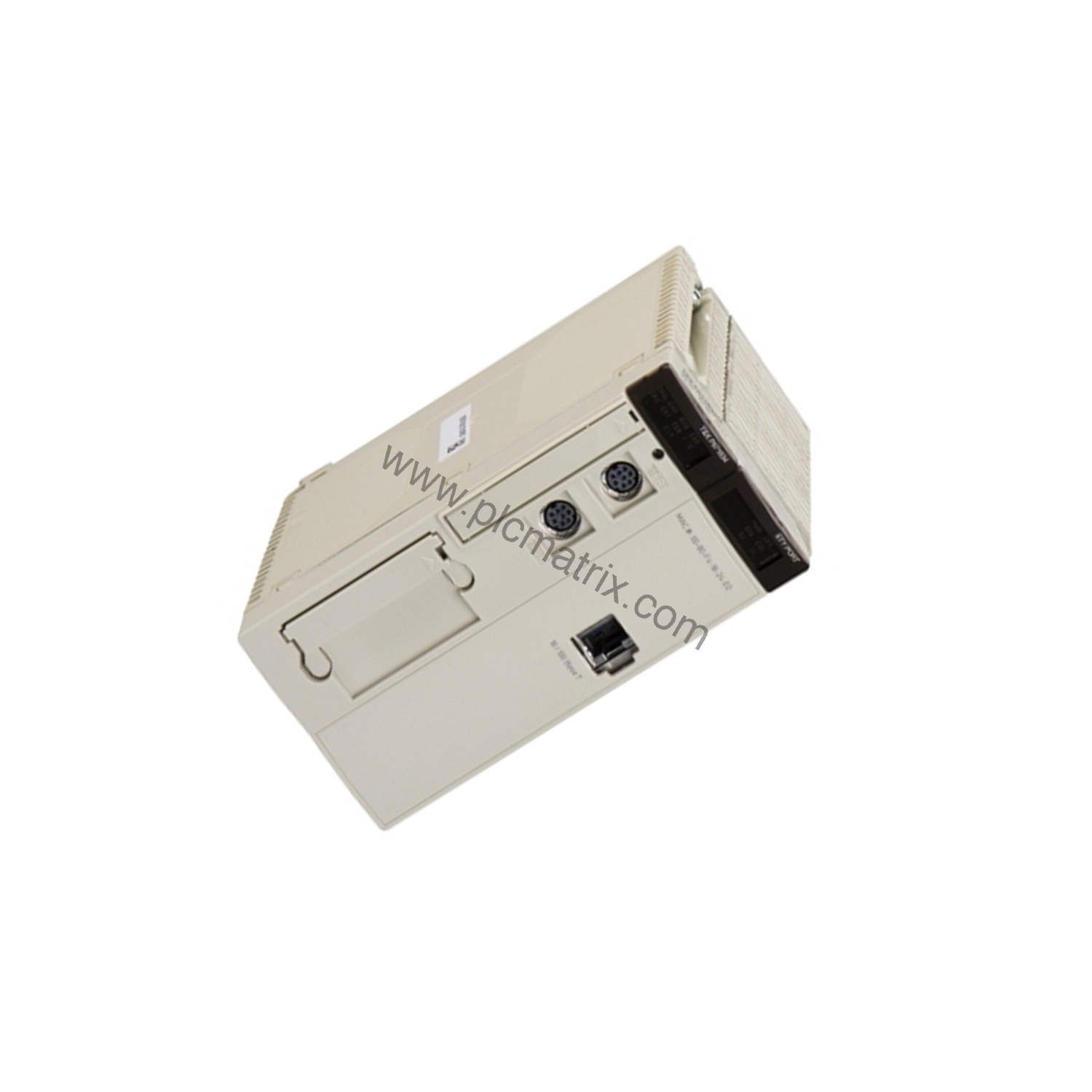

When your automation system demands reliable processing and flexible memory expansion, the Schneider TSXP57104M Unity processor delivers. This compact controller from the TSX Micro PLCs family is designed to handle complex logic and data management in industrial environments. With internal RAM of 96 KB for data and the ability to expand program memory to 224 KB using a PCMCIA card, it offers scalable storage for evolving applications. The processor supports up to 512 discrete I/O and 24 analog I/O, making it suitable for mid-sized control systems. Its execution time of 0.19 µs for Boolean instructions (without PCMCIA card) ensures fast response to field events.

Technical Specifications Breakdown

The TSXP57104M excels in processing efficiency. It executes Boolean instructions in 0.19 µs without a PCMCIA card and 0.25 µs with one installed. For word or fixed-point arithmetic, it takes 0.25 µs without the card and 0.5 µs with it. Floating-point operations complete in 1.75 to 2.6 µs regardless of card presence. This translates to a throughput of 3.71 Kinst/ms (65% Boolean, 35% fixed arithmetic) without the card and 2.1 Kinst/ms with the card. The processor consumes 850 mA at 5 V DC, fitting a standard module format. It supports up to 4 racks with 4, 6, or 8 slots each, or 2 racks with 12 slots, providing configuration flexibility.

Industry Applications

In manufacturing lines requiring precise sequencing and data logging, the TSXP57104M handles 512 discrete I/O and 24 analog I/O efficiently. For example, in a packaging plant, it can manage multiple conveyor zones, sensors, and actuators while logging production data to the PCMCIA card for analysis. In water treatment facilities, its 24 analog I/O capacity allows monitoring of flow, pressure, and level transmitters, while the fast Boolean execution controls valve and pump sequences. The processor's 32 event tasks and master/fast task structure enable time-critical responses in these scenarios.

Installation & Setup Guidance

Mount the TSXP57104M in a standard TSX Micro rack, ensuring proper grounding and ventilation. Connect the 5 V DC power supply to the backplane; the module draws 850 mA. For programming, use Unity Pro software via the non-isolated serial link (RS485, 19.2 kbit/s) on the two female mini-DIN connectors. Configure the rack layout according to your I/O requirements—up to 2 racks of 12 slots or 4 racks of 4/6/8 slots. Insert the PCMCIA card (256 KB additional storage) if needed for extended program memory. Verify LED status: green RUN for operation, red I/O for module faults, red ERR for processor faults, and yellow TER for terminal activity.

Maintenance & Reliability

Regular inspection of the TSXP57104M ensures long-term reliability. Check the ambient temperature stays within 32 to 140 °F (0 to 60 °C) and relative humidity between 10% and 95% non-condensing. The IP20 protection rating requires installation in a clean, dry enclosure. Periodically verify that the PCMCIA card connection is secure and that the backup battery (if used) maintains data integrity. The processor's CE marking and compliance with standards like UL 508 and IEC 61131-2 confirm its robustness for industrial environments. Following these practices minimizes downtime and extends service life.

Compatibility & Integration

The TSXP57104M integrates seamlessly with the Modicon Premium automation platform and is programmed using Unity Pro software. It supports up to two communication modules, broadening connectivity options for networks like Modbus or Ethernet via add-on modules. The non-isolated serial link (RS485) at 19.2 kbit/s allows connection to HMI panels or other controllers. Its compatibility with TSX Micro racks and I/O modules makes it a drop-in upgrade for existing systems. For new installations, the processor works with a range of discrete and analog I/O modules to match specific application needs.

Selection Guide & Purchasing Advice

Before purchasing the TSXP57104M, verify your rack configuration and I/O count requirements. The processor supports up to 512 discrete I/O and 24 analog I/O, with 8 application-specific channels. Ensure your power supply can deliver 850 mA at 5 V DC. If you need extended program memory, order a compatible PCMCIA card (256 KB). BluePLC Industrial offers this processor with reliable availability and fast shipping. Contact our team to confirm current lifecycle status and to discuss any compatibility questions for your specific system.
