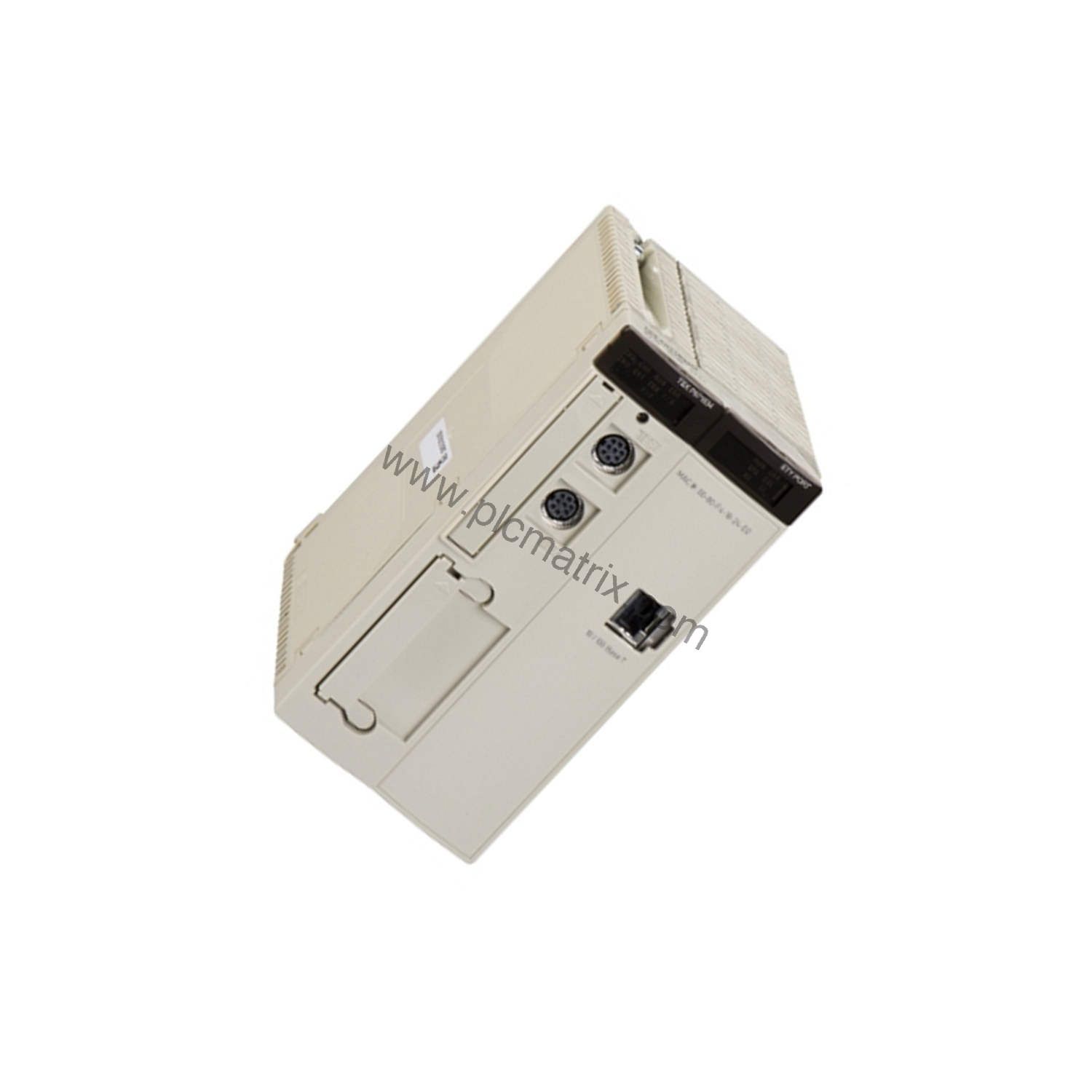

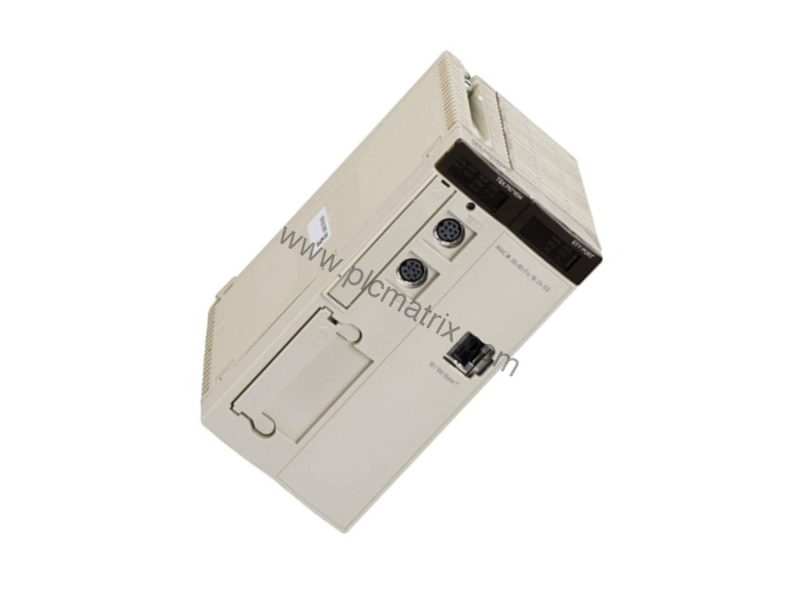

Schneider TSXP57104M Unity Processor for TSX Micro PLCs – High-Performance Automation

Product Overview

When your automation system demands reliable control in a compact footprint, the Schneider Electric TSXP57104M delivers. This Unity processor from the Modicon Premium automation platform is designed for TSX Micro PLCs, providing a powerful yet space-saving solution for mid-range industrial applications. With internal RAM of 96 KB for program and data (expandable to 224 KB program with a PCMCIA card), it handles complex logic without sacrificing performance.

Technical Specifications Breakdown

The TSXP57104M excels in processing speed and memory management. Key parameters include:

Execution Time: 0.19 µs per Boolean instruction without PCMCIA card, 0.25 µs with card.

Instruction Throughput: Up to 4.76 Kinst/ms (100% Boolean) without card, 3.1 Kinst/ms with card.

Memory: 96 KB internal RAM (program and data) without card; 224 KB program plus 96 KB data with PCMCIA card; additional 256 KB storage via PCMCIA.

I/O Capacity: 512 discrete I/O and 24 analog I/O, supporting up to 4 racks (4/6/8 slots) or 2 racks (12 slots).

Current Consumption: 850 mA at 5 V DC, ensuring efficient power usage.

Communication: Non-isolated serial link with 2 female mini DIN connectors (RS485) at 19.2 kbit/s; supports up to 2 communication modules.

These specs make the TSXP57104M ideal for applications requiring fast Boolean logic and moderate data handling, such as packaging lines or conveyor control.

Industry Applications

The TSXP57104M fits seamlessly into several automation scenarios:

Material Handling: With 512 discrete I/O points, it can manage multiple sensors and actuators in sorting or palletizing systems. The fast execution time (0.19 µs) ensures real-time response.

Process Control: The 24 analog I/O channels allow precise monitoring of temperature, pressure, or flow. Combined with the 32 KB object area for data, it supports complex PID loops.

Machine Automation: Its modular rack configuration (up to 32 slots) enables flexible expansion, making it suitable for custom machinery with mixed I/O requirements.

Installation & Setup Guidance

Mount the TSXP57104M in a standard TSX Micro rack. Ensure the power supply provides 5 V DC at 850 mA minimum. Connect the serial link via the two female mini DIN ports for programming or HMI communication. Configure the processor using Unity Pro software, selecting the appropriate task structure (1 master, 1 fast, up to 32 event tasks). Verify that the PCMCIA card (if used) is inserted before power-up. The module format is standard, fitting into any TSX Micro slot.

Maintenance & Reliability

The TSXP57104M operates reliably in temperatures from 32 to 140 °F (0 to 60 °C) and can be stored from -13 to 158 °F (-25 to 70 °C). Its IP20 protection suits clean, dry environments. For long-term reliability, inspect the LED indicators (RUN, I/O, ERR, TER) periodically. The processor supports up to 2 communication modules, reducing the need for external hardware. Regular firmware updates via Unity Pro help maintain performance.

Compatibility & Integration

This processor integrates with the Modicon Premium platform and TSX Micro I/O modules. It communicates via the non-isolated RS485 serial link at 19.2 kbit/s, compatible with many HMI and SCADA systems. The TSXP57104M supports up to 2 communication modules for additional protocols. It is certified to UL 508, CSA C22.2 No. 142, and IEC 61131-2, ensuring broad industrial acceptance.

Selection Guide & Purchasing Advice

Before ordering, verify your rack configuration: the TSXP57104M supports 2 racks of 12 slots or 4 racks of 4/6/8 slots. Confirm your I/O count (512 discrete, 24 analog) and whether you need the PCMCIA card for additional memory. For current availability and lifecycle status, contact plcmatrix.com — a trusted supplier of Schneider Electric automation parts. They can confirm stock, recommend compatible accessories, and help with replacement options if needed.
