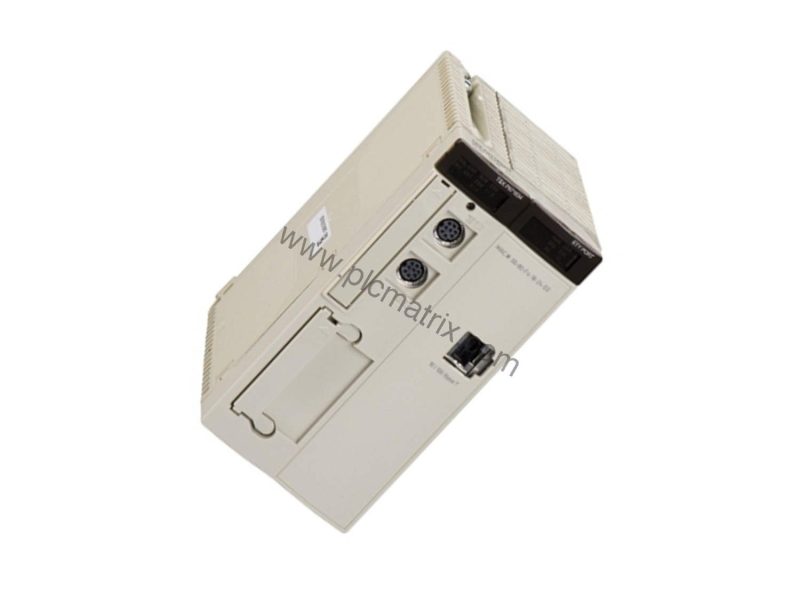

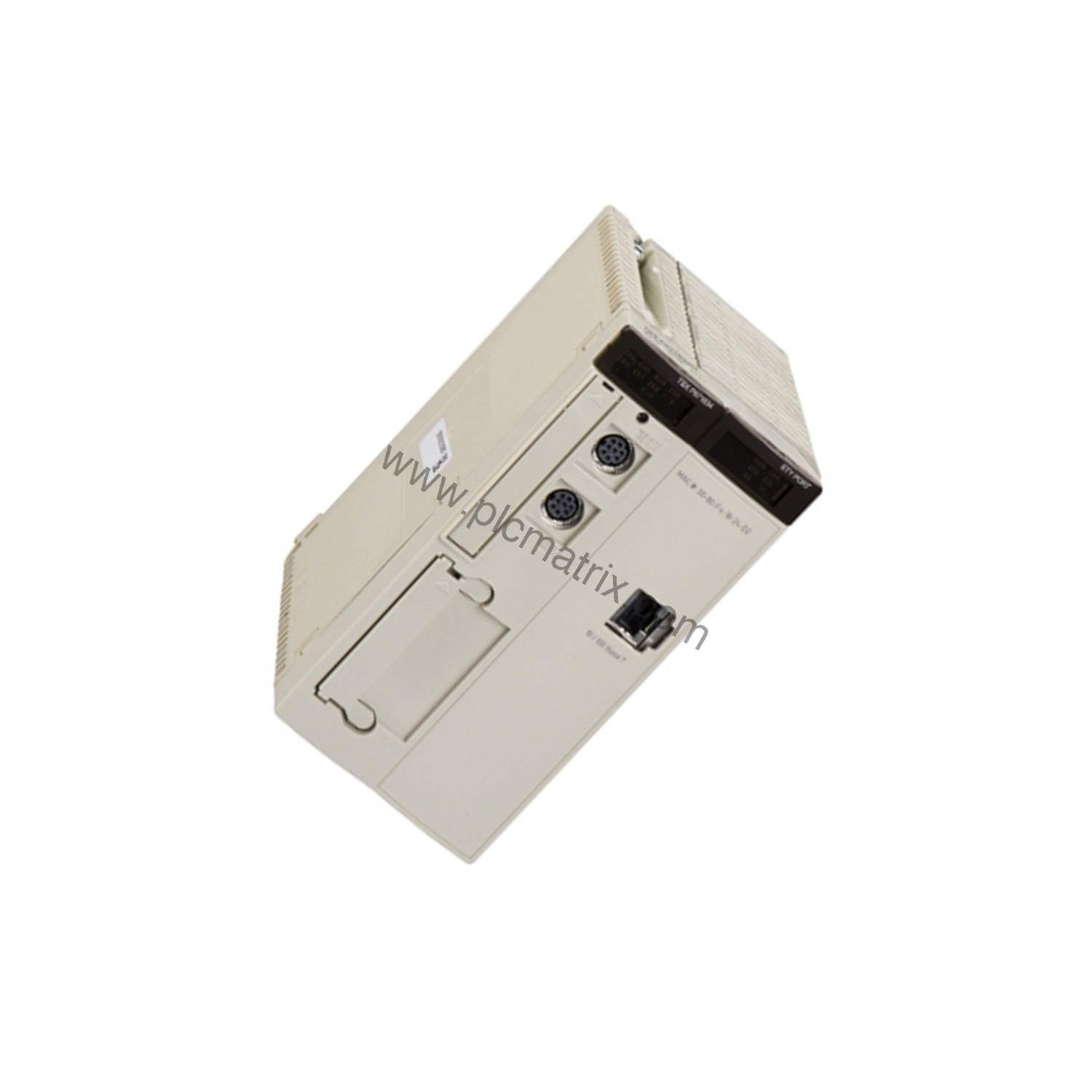

Schneider TSXP57103M Micro PLC: Reliable 32 Kword Processor for Automation

Product Overview

When your control system demands a compact yet powerful processor, the Schneider TSXP57103M micro PLC delivers reliable performance. Part of the Modicon Premium automation platform, this single-format PL7 processor integrates 32 Kwords of internal RAM dedicated to data processing. It handles inrush currents up to 38 A at both 240 V and 100 V, ensuring stable startup under demanding conditions. With support for up to two racks of 12 slots or four racks of 4/6/8 slots, you can scale your I/O configuration to match application needs.

Technical Specifications Breakdown

The TSXP57103M provides a discrete I/O processor capacity of 512 I/O and an analogue I/O processor capacity of 24 I/O. Its execution time per Boolean instruction is 0.5 µs without a PCMCIA card and 0.6 µs with one, enabling fast logic processing. The memory structure includes 32 Kwords for program and data without a PCMCIA card, expandable to 128 Kwords additional data storage and 64 Kwords program with the card. Current consumption is 440 mA at 5 V DC, and the module weighs 0.84 lb (0.38 kg). These specs make it a balanced choice for mid-range automation tasks.

Industry Applications

In manufacturing environments, the TSXP57103M excels at controlling conveyor systems, packaging machinery, and material handling. Its 512 discrete I/O capacity handles numerous sensors and actuators, while the 24 analogue I/O channels manage analog feedback from temperature or pressure transducers. The non-isolated serial link at 19.2 kbit/s supports straightforward communication with HMIs or SCADA systems. For facilities upgrading from older PLCs, this processor offers a reliable migration path within the Modicon ecosystem.

Installation & Setup Guidance

Mount the TSXP57103M in a standard IP20 enclosure, ensuring ambient air temperature stays between 32…140 °F (0…60 °C). Connect the 5 V DC power supply, noting the 440 mA current draw. Use the two female mini-DIN connectors for the serial link, and configure the PL7 Junior/Pro software for programming. Verify rack slot assignments: up to 12 slots per rack for two-rack systems, or 4/6/8 slots per rack for four-rack setups. Always follow the manufacturer's guidelines for wiring and grounding to maintain reliability.

Maintenance & Reliability

From a maintenance engineer's perspective, the TSXP57103M offers straightforward serviceability. The four front-panel LEDs—RUN (green), I/O fault (red), ERR (red), and TER activity (yellow)—provide immediate status feedback. Inspect the module periodically for dust accumulation, as the IP20 rating requires clean environments. The 32 Kwords internal RAM retains data without a battery, reducing routine checks. For long-term reliability, operate within the 10…95% non-condensing humidity range and avoid altitudes above 2000 m. These practices minimize downtime and extend service life.

Compatibility & Integration

The TSXP57103M integrates with one network module, two AS-Interface bus modules, and one CANopen module, offering flexible networking. It supports up to 32 event tasks, one fast task, and one master task, enabling responsive control. The non-isolated serial link communicates at 19.2 kbit/s with compatible devices. For expanded memory, use a PCMCIA card for additional 128 Kwords data or 64 Kwords program storage. This processor works seamlessly within the Modicon Premium platform, making it a reliable choice for system upgrades.

Selection Guide & Purchasing Advice

Before ordering, verify your rack configuration and I/O count requirements. The TSXP57103M suits applications needing up to 512 discrete I/O and 24 analogue I/O. Confirm your power supply can deliver 440 mA at 5 V DC. For programming, ensure you have PL7 Junior/Pro software. BluePLC Industrial stocks this module and can confirm current lifecycle status and availability. Contact our team for assistance with compatibility or to discuss replacement options for older systems.
