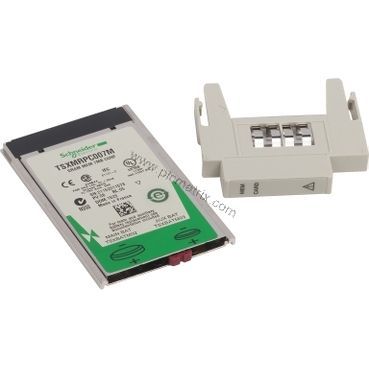

Schneider TSXMRPC007M 512KB Flash Memory Module for TSX Micro PLCs

Product Introduction

When automation systems require reliable program and data storage, the Schneider TSXMRPC007M flash memory module delivers a cost-effective solution. Designed for the TSX Micro PLC family, this compact module provides 512 KB of flash memory, ensuring your critical automation tasks run without interruption. With a low power consumption of just 0.5 W, it minimizes operational costs while maximizing uptime. The TSXMRPC007M retains data for up to 10 years, reducing the need for frequent replacements and lowering total cost of ownership. Whether you are upgrading an existing system or building a new control panel, this memory module offers proven reliability from a trusted brand.

Technical Specifications Breakdown

The TSXMRPC007M features a flash memory capacity of 512 KB, which is ideal for storing application programs and configuration data in mid-sized automation projects. Its write endurance of 100,000 cycles means you can update logic or parameters repeatedly without wearing out the memory—a key factor in reducing long-term maintenance expenses. The module operates reliably across a temperature range of 0°C to 60°C and can be stored from -25°C to 70°C, ensuring stable performance in typical industrial environments. With shock resistance of 15 g for 11 ms and vibration tolerance of 1.5 mm peak-to-peak from 3 Hz to 13 Hz, it withstands mechanical stress common in manufacturing floors. These rugged specs translate to fewer failures and lower replacement costs over the product's lifespan.

Industry Applications

In material handling systems, the TSXMRPC007M stores conveyor control programs that must be updated frequently as product lines change. The 100,000 write cycles allow for thousands of revisions without memory degradation, saving costs on module replacements. For packaging machinery, the module's 10-year data retention ensures that critical production parameters remain intact even after extended power-downs, reducing downtime and reprogramming labor. In building automation, the low power consumption of 0.5 W contributes to energy savings across multiple PLC installations, directly improving the facility's operational efficiency.

Installation & Setup Guidance

Mount the TSXMRPC007M on a DIN rail inside your control panel—a straightforward process that requires no special tools. Ensure the ambient temperature stays between 0°C and 60°C for optimal performance. The module is compatible with Schneider Electric TSX Micro PLCs, so simply insert it into the designated slot and power up the system. No additional wiring or configuration is needed for basic operation. Always verify that the PLC firmware supports this memory module to avoid compatibility issues. For best results, handle the module by its edges to prevent electrostatic discharge damage.

Maintenance & Reliability

Routine inspection of the TSXMRPC007M involves checking for secure mounting and clean connections. With a humidity tolerance of 5% to 95% non-condensing, the module operates reliably in damp environments, but avoid direct exposure to liquids. The flash memory technology requires no battery backup, eliminating periodic battery replacement costs. Given its 10-year data retention and 100,000 write cycles, this module offers a long service life with minimal intervention. Regularly verify that the module's firmware is up to date to maintain compatibility with evolving PLC software. These low-maintenance characteristics directly reduce your total cost of ownership.

Compatibility & Integration

The TSXMRPC007M is designed exclusively for Schneider Electric TSX Micro PLCs, ensuring seamless integration into existing automation architectures. It works with all TSX Micro CPU models that support memory expansion. The module uses a standard DIN rail mounting, making it easy to retrofit into current control panels without additional hardware. Its flash memory type is compatible with Schneider's programming software, allowing straightforward data transfer and backup. Before purchasing, confirm that your specific TSX Micro PLC model supports this memory module to avoid compatibility surprises.

Selection Guide & Purchasing Advice

When selecting the TSXMRPC007M, verify that your PLC model is part of the TSX Micro family and that the memory capacity meets your application requirements. For larger programs, consider if 512 KB is sufficient or if a higher-capacity module is needed. BluePLC Industrial stocks this module with fast shipping and competitive pricing. Contact our team to confirm availability and to discuss any compatibility questions. We recommend ordering a spare unit for critical systems to minimize downtime in case of unexpected failure. Ensure your purchase includes the original packaging to protect the module during transit.
