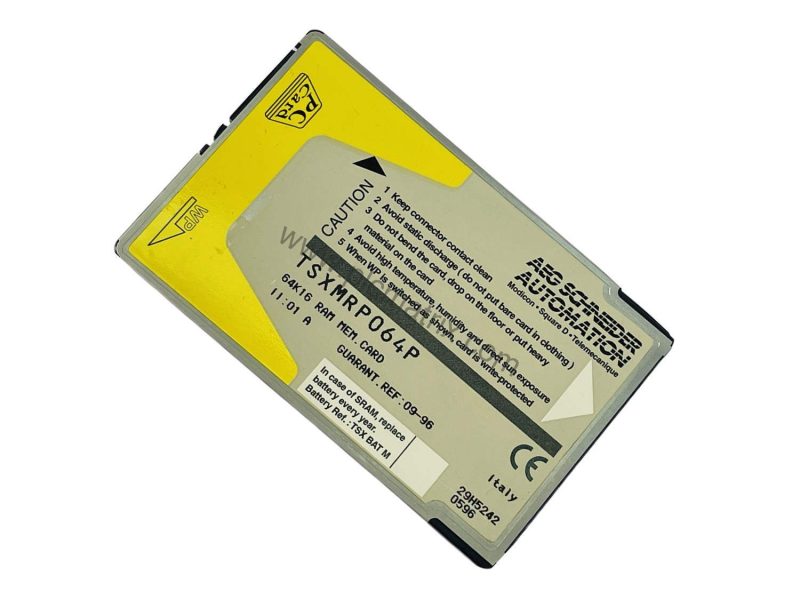

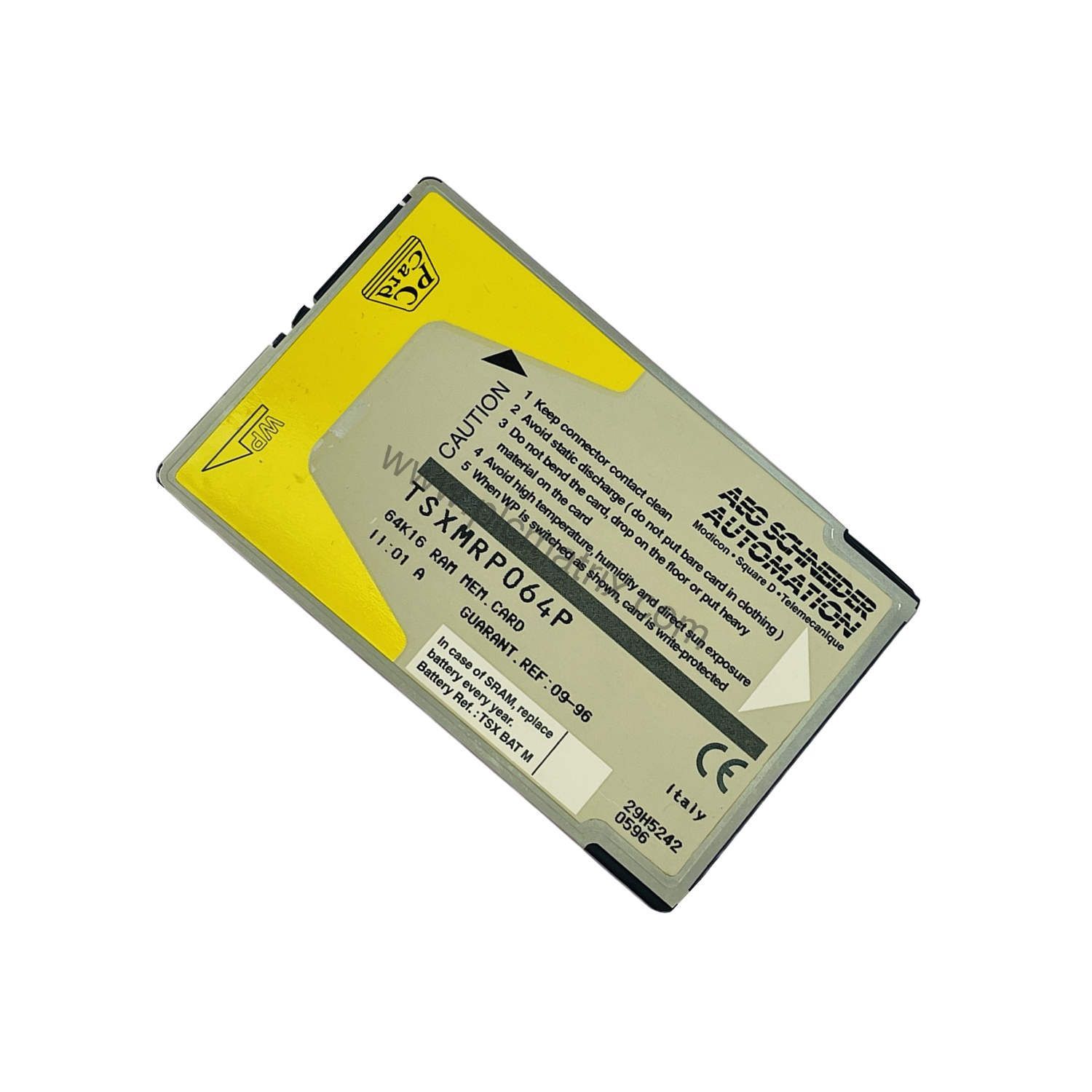

Schneider TSXMRP064P Flash Memory Module for TSX Micro PLCs

Product Introduction

When memory limitations hinder your TSX Micro PLC system, the Schneider TSXMRP064P flash memory module provides a reliable upgrade path. This module uses Random Access Memory (RAM) technology with 16-bit memory addressing to manage 64 kilobytes of data efficiently. Designed for the TSX Micro PLCs series, it ensures smooth operation in demanding automation environments.

Technical Specifications Breakdown

The TSXMRP064P offers key specifications that matter for industrial control. Its 64 kilobytes memory capacity supports moderate program and data storage needs. With 16-bit memory addressing, the module handles data with precision and speed. A lithium battery provides memory backup for approximately one year, safeguarding critical data during power interruptions. The module weighs only 0.06 lbs (0.03 kg) and uses a slot mount for easy installation. Vibration resistance up to 0.5G ensures reliable operation in environments with mechanical disturbances.

Industry Applications

In manufacturing lines where PLCs control sequential processes, the TSXMRP064P stores recipe data and machine parameters securely. For building automation systems managing HVAC and lighting, this module retains configuration settings even after power loss, reducing downtime. Its compact size and lightweight design make it suitable for space-constrained panels in packaging or material handling applications.

Installation & Setup Guidance

Installing the TSXMRP064P is straightforward: simply slot-mount the module into a compatible TSX Micro PLC chassis. Ensure the system is powered off before insertion. After mounting, verify the module is properly seated and secure. No additional wiring or configuration is required beyond standard PLC setup procedures.

Maintenance & Reliability

To maintain reliable data retention, periodically check the lithium battery status. The module’s backed-up data duration of approximately one year means you should schedule battery replacement before this period expires to prevent data loss. The 0.5G vibration resistance allows the module to function in moderately vibrating environments, but avoid exposing it to excessive shock or moisture.

Compatibility & Integration

The TSXMRP064P is specifically designed for the TSX Micro PLCs series. It integrates seamlessly with existing Schneider Electric automation systems. Verify your PLC model compatibility before ordering. For systems requiring memory expansion, this module provides a drop-in solution without complex reconfiguration.

Selection Guide & Purchasing Advice

Before purchasing the TSXMRP064P, confirm your TSX Micro PLC model supports this module. Check available slot positions and ensure the lithium battery is included or sourced separately. BluePLC Industrial offers genuine Schneider modules with verified specifications. Contact our team to confirm current availability and lifecycle status before ordering.
