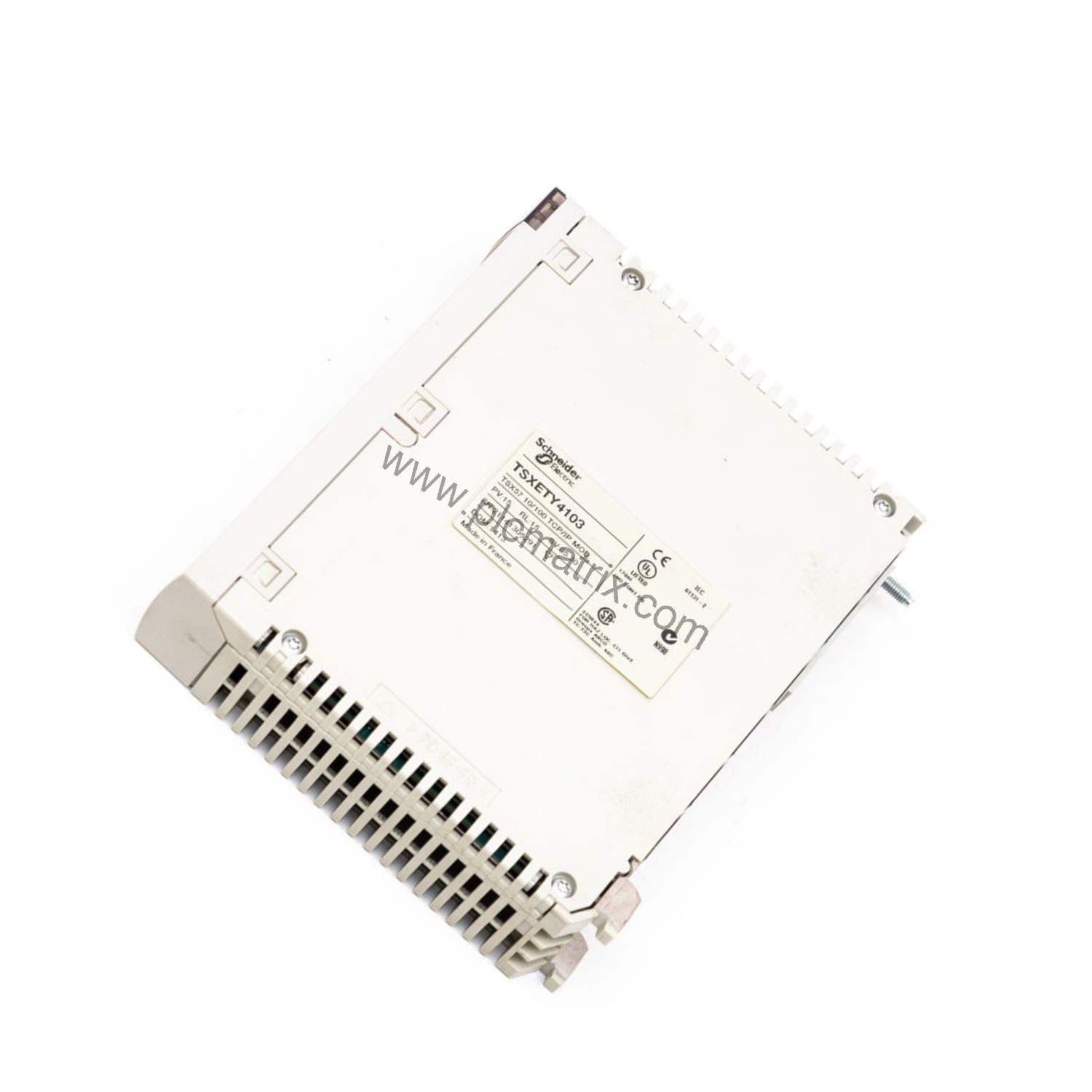

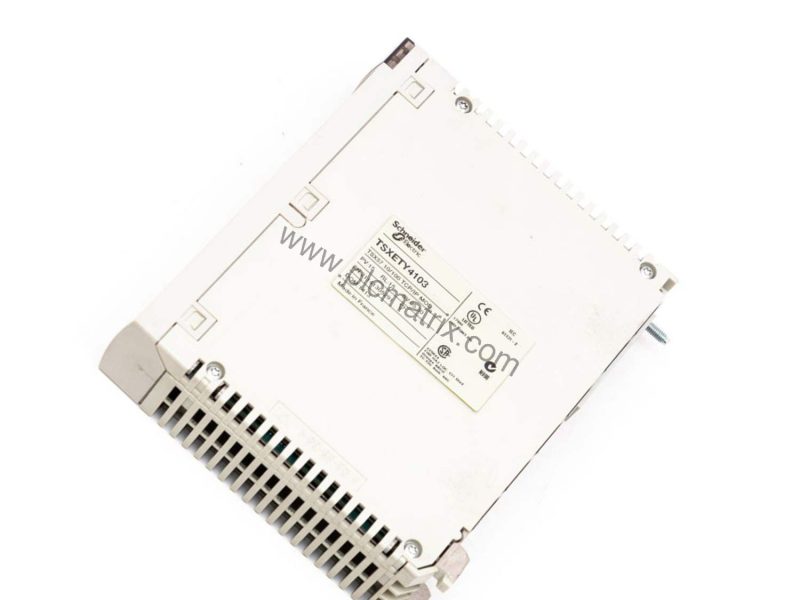

Schneider TSXETY4103 Ethernet TCP/IP Module for TSX Micro PLCs

Product Overview

When your automation system requires reliable Ethernet communication, the TSXETY4103 from Schneider Electric provides a robust solution. This Ethernet TCP/IP module integrates directly into the TSX Micro PLCs series, offering a standard module format that fits existing racks. With support for both Modbus TCP and Uni-Telway protocols, it bridges your control network to higher-level systems efficiently. The module draws only 360 mA at 5 V DC, keeping power demands low while maintaining high performance.

Technical Specifications Breakdown

The TSXETY4103 delivers a transmission rate of 10/100 Mbit/s via its RJ45 physical interface, supporting 10BASE-T and 100BASE-TX twisted-pair cabling. It handles up to 64 concurrent connections, ensuring ample capacity for distributed I/O and HMI communications. Communication services include bandwidth management, FDR server, Global Data, I/O scanning, Modbus TCP messaging, SMTP e-mail notification, SNMP agent, and Uni-TE messaging. The web server provides transparent ready class B30 features, enabling rack viewer and data editor functions through a PC terminal. Four LEDs indicate collision detection (COL), network status (RUN), port fault (ERR), and transmission/reception activity (TX/TR).

Industry Applications

Manufacturing facilities use the TSXETY4103 to connect PLCs to plant-wide Ethernet networks, enabling real-time data exchange for production monitoring. In process control, it supports Modbus TCP for communication with drives, sensors, and SCADA systems. The module's 64-connection capacity suits medium-sized automation projects where multiple devices need simultaneous access. Its compact design and standard format simplify integration into existing TSX Micro racks without extensive rewiring.

Compatibility & Integration

The TSXETY4103 works with PL7 Pro and Unity Pro programming software, ensuring easy configuration and maintenance. It communicates via Modbus TCP and Uni-Telway protocols, making it compatible with a wide range of Schneider Electric and third-party devices. The module receives power directly from the rack supply, eliminating the need for external power sources. For web-based monitoring, the integrated web server provides rack viewer and data editor capabilities, accessible through any standard browser on the network.

Installation & Setup Guidance

Install the TSXETY4103 into any standard slot of a TSX Micro PLC rack. Ensure the RJ45 connector is securely attached to your Ethernet network using a shielded twisted-pair cable for optimal performance. Configure the module using PL7 Pro or Unity Pro software, setting IP addresses and protocol parameters as needed. The module's LEDs provide immediate visual feedback: the RUN LED confirms network status, while the TX/TR LED blinks during data activity. No special tools are required for installation beyond standard screwdrivers for rack mounting.

Maintenance & Reliability

Routine inspection of the RJ45 connection and cable integrity helps maintain reliable communication. The module operates within an ambient temperature range of 0 to 60 °C and relative humidity of 10 to 95% at 60 °C without condensation, making it suitable for typical industrial environments. Its IP20 protection rating allows installation in clean, dry enclosures. No periodic calibration is needed; however, verify firmware updates from Schneider Electric to ensure compatibility with evolving network standards.

Selection Guide & Purchasing Advice

Before purchasing, confirm that your TSX Micro PLC rack has an available slot and that your power supply can handle the additional 360 mA at 5 V DC. Verify that your programming software (PL7 Pro or Unity Pro) supports the module version. BluePLC Industrial stocks the TSXETY4103 and can advise on compatibility with your existing system. Contact our team for current availability and pricing.
