Schneider TSXCANCD300 CANopen Cable 300m for Industrial Automation

Product Overview

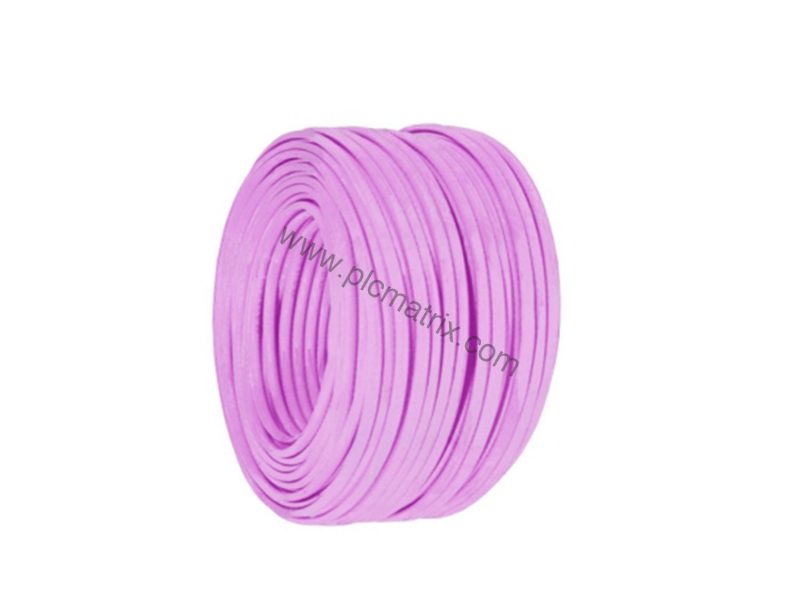

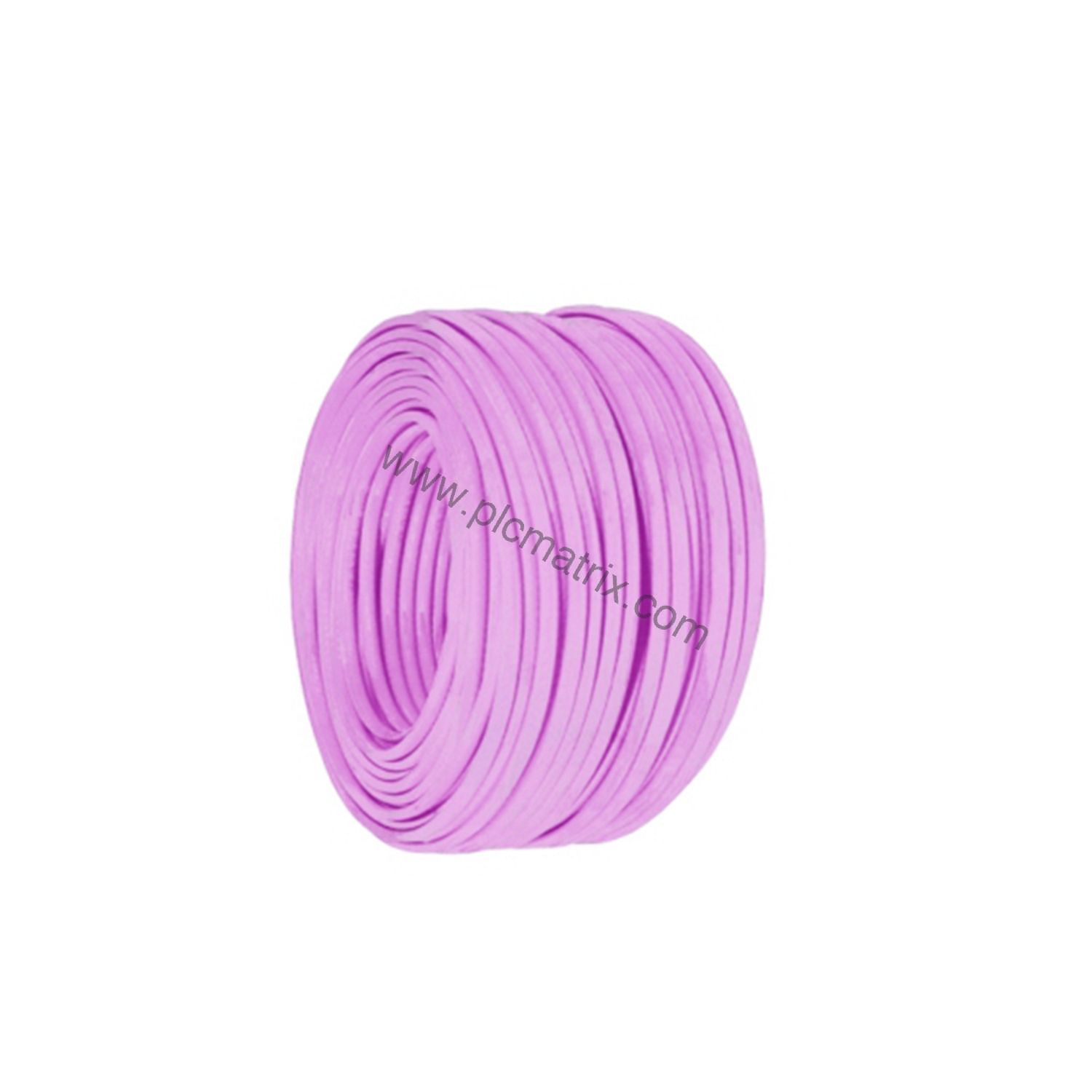

When industrial automation networks require reliable and long-distance CANopen communication, the Schneider TSXCANCD300 provides a robust solution. This CANopen connecting cable, part of the CANopen product series, delivers a 300-meter cable length for extended bus wiring. Designed as a wiring accessory for CANopen bus systems, it ensures stable data transmission in demanding environments. The TSXCANCD300 carries CE marking, confirming compliance with European standards.

Technical Specifications

The TSXCANCD300 is a CANopen cable with a length of 300 meters, making it suitable for large-scale automation networks. It has an IP20 rating, protecting against solid objects larger than 12.5 mm. The product weighs 21.7 kg, and its packaging dimensions are 32.500 cm height, 40.000 cm width, and 40.000 cm length. The package weight is 21.700 kg. For bulk orders, the product is packed in units of 18 per P12 package, with dimensions 112.000 cm height, 80.000 cm width, and 120.000 cm length, and a gross weight of 402.600 kg.

Industry Applications

This cable is ideal for factory automation, material handling, and process control systems that rely on CANopen networks. For example, in a packaging line, the 300-meter length allows connection between remote I/O modules and the main controller. In automotive assembly, it supports communication between robotic cells and PLCs. The IP20 rating suits indoor control cabinets and clean environments.

Installation & Setup Guidance

Install the TSXCANCD300 by routing the cable between CANopen nodes, ensuring proper termination resistors at both ends of the bus. Avoid sharp bends and physical stress to maintain signal integrity. Use appropriate strain relief at connection points. The IP20 rating means the cable should be installed in a dry, indoor location within a control panel or enclosure.

Maintenance & Reliability

Periodically inspect the cable for physical damage, especially at connectors and along the length. Keep the cable away from heat sources and moisture to prolong service life. The robust 300-meter length reduces the need for repeaters, simplifying maintenance. Regular checks of connection tightness prevent intermittent faults.

Compatibility & Integration

The TSXCANCD300 is designed for CANopen bus networks and works with Schneider Electric and other CANopen-compatible devices. It serves as a connecting cable between nodes such as drives, I/O modules, and controllers. Ensure your system supports the CANopen protocol and the required cable length.

Selection Guide & Purchasing Advice

Before purchasing, verify that your network requires a 300-meter CANopen cable and that the IP20 rating matches your installation environment. The TSXCANCD300 is a wiring accessory, not a standalone device. For current availability and lifecycle status, contact BluePLC Industrial. We stock this item and can assist with bulk orders.

Comparison with Similar Products

Below is a comparison of the TSXCANCD300 with other CANopen cables:

| Feature | TSXCANCD300 | Typical 100m CANopen Cable | Typical 50m CANopen Cable |

|---------|-------------|----------------------------|---------------------------|

| Cable Length | 300 m | 100 m | 50 m |

| IP Rating | IP20 | IP20 | IP20 |

| Weight | 21.7 kg | ~7 kg | ~3.5 kg |

| Marking | CE | CE | CE |

| Packaging | Single unit or P12 bulk | Single unit | Single unit |

The TSXCANCD300 offers the longest cable length in this comparison, ideal for large-scale networks.
