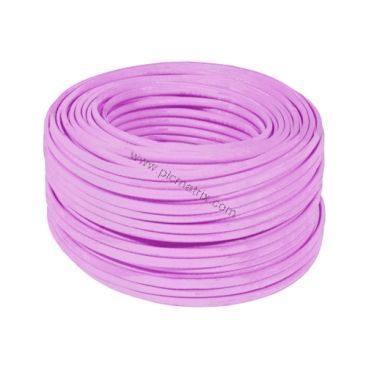

Schneider TSXCANCB300 CANopen Standard Cable 300m IP20 UL

Product Overview

When a CANopen bus network requires a reliable and standardized connection, the Schneider TSXCANCB300 delivers a robust solution. This CANopen standard cable, part of the CANopen range, provides a 300-meter length for flexible system layout. Designed as a connecting cable for CANopen bus applications, it ensures signal integrity over long distances in industrial environments.

Technical Specifications

The TSXCANCB300 is a CANopen cable with a length of 300 meters, offering ample reach for distributed automation systems. It carries an IP20 degree of protection, suitable for cabinet or controlled environment installation. The product holds UL certification and CE marking, meeting international safety and performance standards. With a product weight of 21.87 kg, this cable is built for durability. It also complies with IEC 60332-2 for flame retardance, reducing fire risk in industrial settings.

Industry Applications

In manufacturing lines, the TSXCANCB300 connects drives, sensors, and controllers over a CANopen network, ensuring real-time data exchange. For material handling systems, its 300-meter length allows routing through long conveyor paths without signal degradation. The cable's flame-retardant properties (IEC 60332-2) make it suitable for environments where fire safety is critical.

Installation & Setup Guidance

Install the TSXCANCB300 cable with proper strain relief at connection points to avoid mechanical stress. Route the cable away from high-voltage power lines to minimize electromagnetic interference. Ensure the cable is securely fastened along its path to prevent movement that could cause connector wear. For best performance, maintain the minimum bend radius as recommended by Schneider for CANopen cables.

Maintenance & Reliability

Periodically inspect the TSXCANCB300 cable for cuts, abrasions, or kinks, especially near connection points. Check that connectors are tightly secured and free from corrosion. Keeping the cable within its specified IP20 environment (dry, indoor, cabinet) extends service life. Regular visual checks help prevent unexpected network downtime.

Compatibility & Integration

The TSXCANCB300 is designed for CANopen bus systems, compatible with Schneider Electric and other CANopen-compliant devices. It integrates seamlessly into existing CANopen networks as a standard connection cable. Verify that your system's CANopen interface matches the cable's connector type (typically 5-pin M12 or open-end, depending on variant) before installation.

Selection Guide & Purchasing Advice

Before ordering the TSXCANCB300, confirm that your application requires a 300-meter cable and that the IP20 protection level suits your installation environment. Check that your devices support CANopen communication and that the cable's specifications meet your network's requirements. BluePLC Industrial offers this cable as a genuine Schneider product, ensuring reliable performance for your automation projects. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
