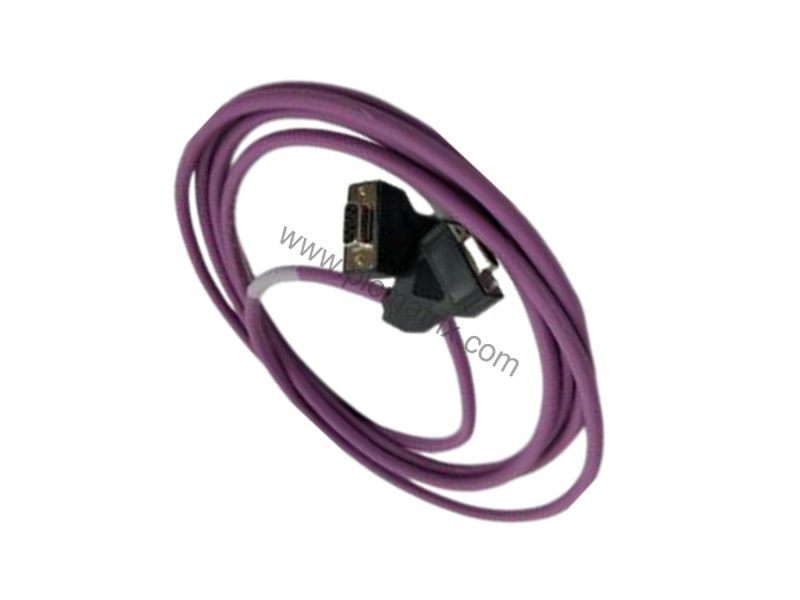

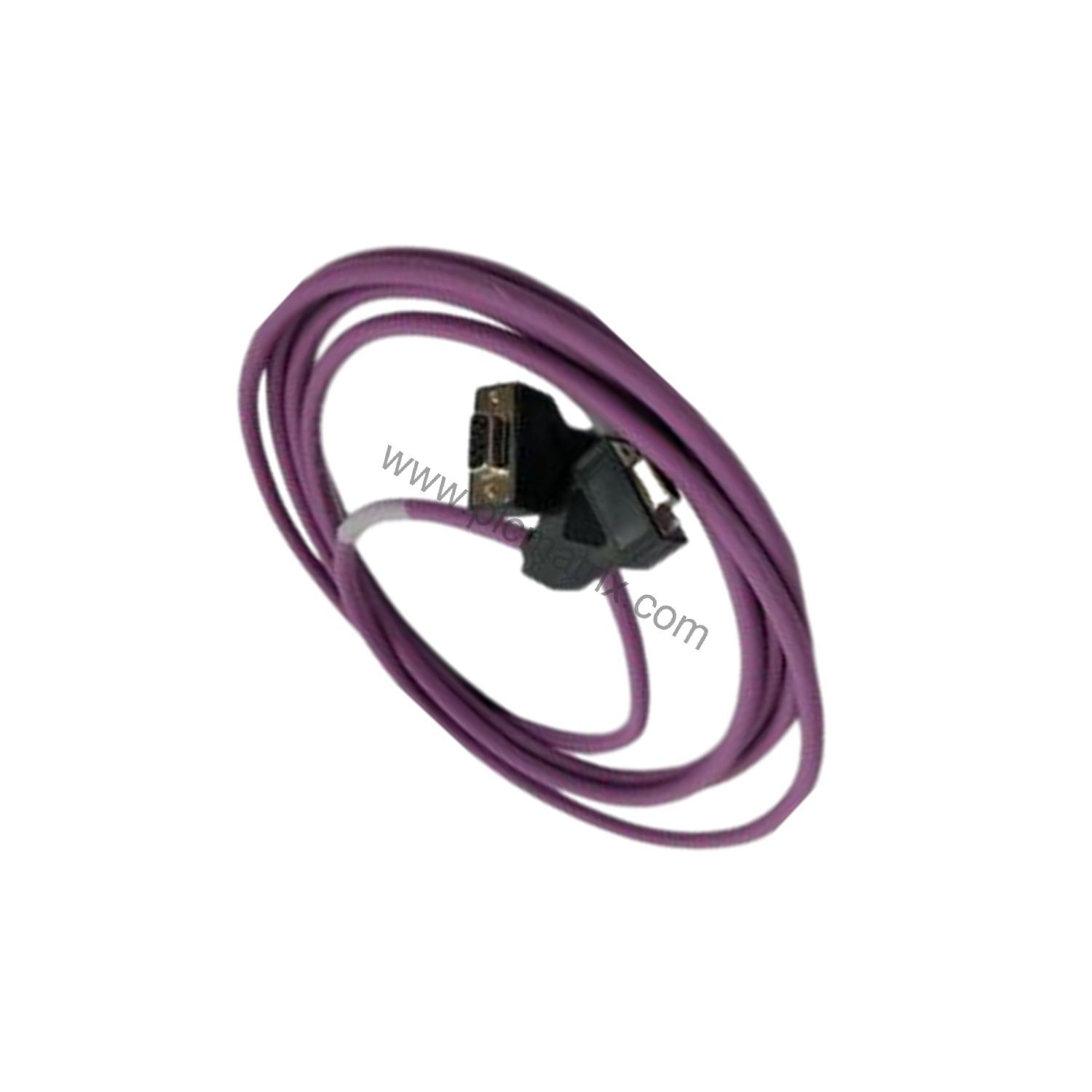

Schneider TSXCANCADD3 CANopen Cordset with Molded SUB-D9 Connectors

Product Overview

When connecting devices on a CANopen bus network, the reliability of the physical link directly impacts system uptime and data integrity. The Schneider TSXCANCADD3 CANopen cordset delivers a robust, pre-assembled solution with molded female SUB-D9 connectors, eliminating the risk of wiring errors and signal degradation. This accessory is part of the CANopen range and is designed for demanding industrial environments where consistent communication is essential for cost-efficient operations.

Technical Specifications Breakdown

The TSXCANCADD3 features a cable length of 9.8 ft (3 m), providing flexibility for cabinet-to-device connections without excess slack. The electrical connection uses two female connectors SUB-D 9, ensuring compatibility with standard CANopen ports. The product weight is 0.650 lb(US) (0.295 kg), making it lightweight and easy to handle during installation. The IP Degree of Protection is IP20, suitable for indoor control cabinets where dust and incidental contact are concerns. CE marking confirms compliance with European health, safety, and environmental standards, reducing compliance risks for global installations.

Industry Applications

In manufacturing lines, the TSXCANCADD3 connects PLCs, drives, and I/O modules on a CANopen network, enabling real-time data exchange. For example, in a packaging machine, this cordset links the main controller to remote sensors and actuators, reducing wiring time by up to 30% compared to field-terminated cables. The molded connectors resist vibration and moisture ingress, minimizing signal faults that cause costly production stoppages. By choosing a pre-made cordset, engineers avoid the labor and testing costs of custom cable assembly.

Installation & Setup Guidance

Installing the TSXCANCADD3 is straightforward: connect the female SUB-D9 connectors to the corresponding male ports on your CANopen devices. Ensure the cable is routed away from high-voltage power lines to prevent electromagnetic interference. The 3-meter length allows easy routing within standard 19-inch cabinets. No special tools are required—simply hand-tighten the connector screws to secure the link. Verify that the bus termination resistors are correctly placed at both ends of the network to maintain signal integrity.

Maintenance & Reliability

Routine inspection of the TSXCANCADD3 involves checking the connector shells for cracks or corrosion and ensuring the cable jacket remains intact. The molded design reduces stress on solder joints, extending service life compared to field-wired connectors. Because the cordset is a passive component, it requires no calibration or firmware updates. Replacing a faulty cordset is a low-cost fix that prevents extended downtime—a key factor in total cost of ownership. For critical paths, keep a spare unit in stock to minimize interruption.

Compatibility & Integration

The TSXCANCADD3 is designed for CANopen bus systems, a widely adopted communication protocol in industrial automation. It works with Schneider Electric controllers, drives, and remote I/O stations that feature SUB-D9 CANopen ports. The cordset is also compatible with third-party CANopen devices, provided they use the same connector standard. Before ordering, verify that your device’s port matches the female SUB-D9 configuration. For mixed-vendor networks, this cordset ensures a standardized physical layer, simplifying troubleshooting and spare parts management.

Buying Guide & Purchasing Advice

When selecting a CANopen cordset, confirm the required cable length and connector gender. The TSXCANCADD3 offers a 3-meter length with female connectors—ideal for connecting a master device to a single slave. If you need longer runs or male connectors, consider other models in the CANopen accessory range. BluePLC Industrial stocks the TSXCANCADD3 and can advise on compatibility with your existing system. Always verify the product lifecycle status before ordering to ensure long-term support for your application.
