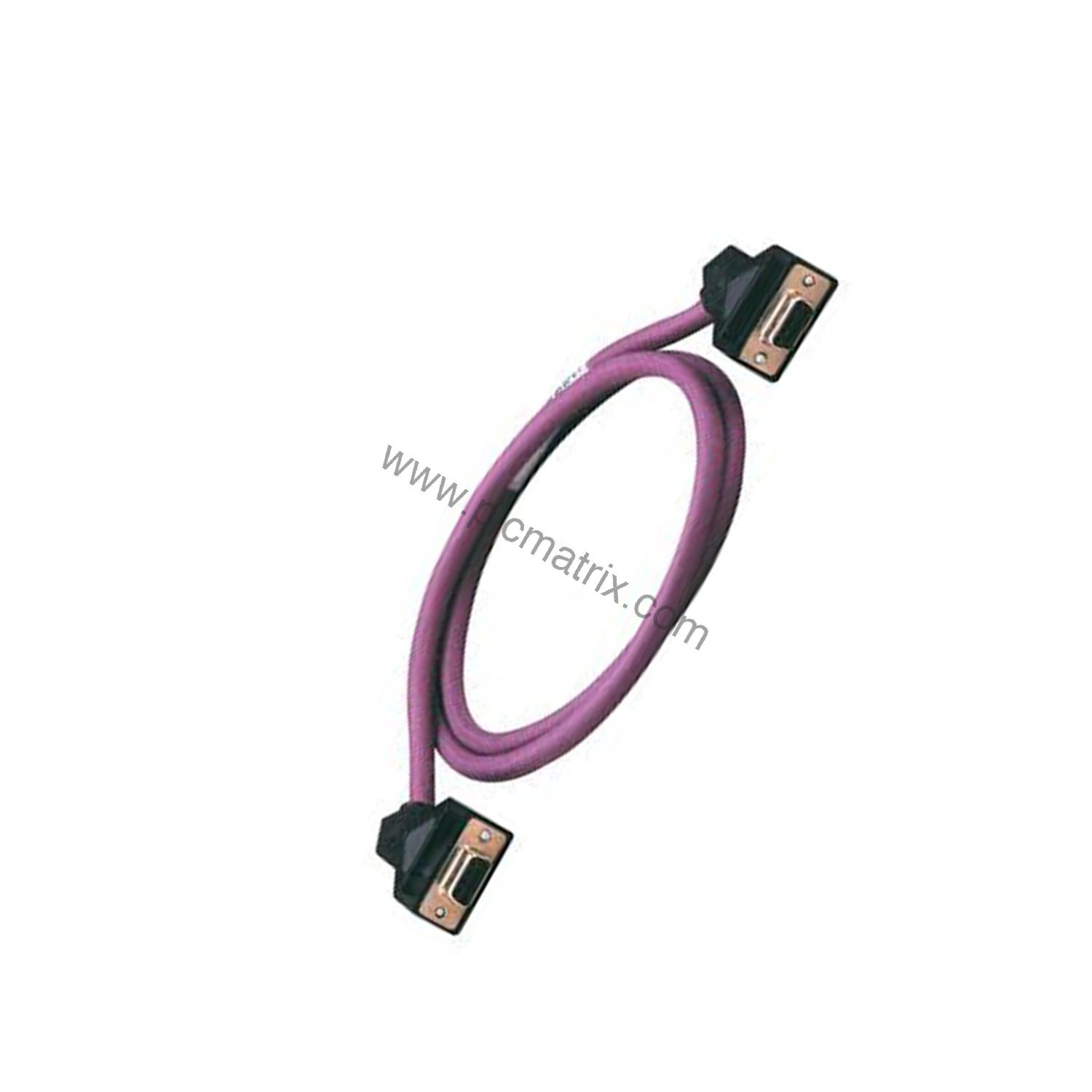

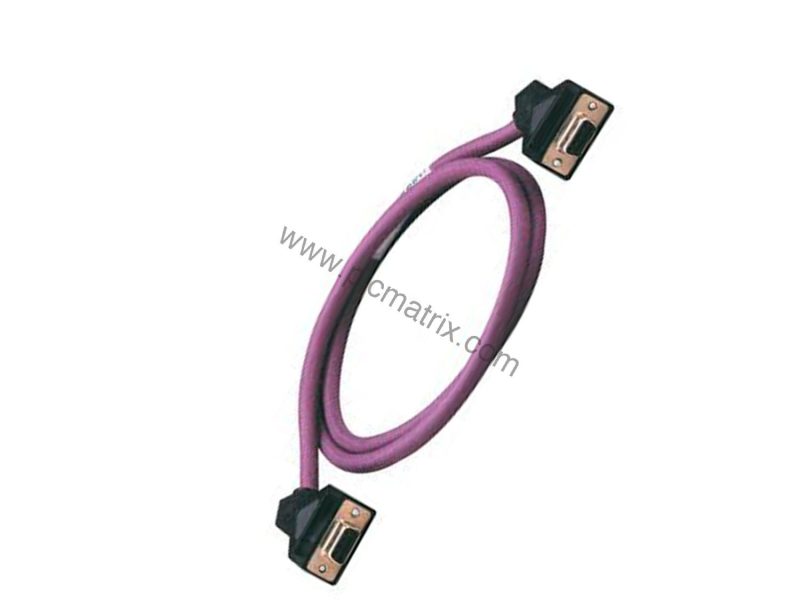

Schneider TSXCANCADD1 CANopen Cordset with SUB-D9 Connectors

Product Overview

When a CANopen bus connection fails in the field, the Schneider TSXCANCADD1 provides a reliable, pre-assembled solution. This CANopen cordset from the CANopen range features molded female SUB-D9 connectors and a standard 1-meter cable length, ensuring secure data transmission in industrial automation networks. Designed for maintenance engineers who value uptime, this accessory simplifies installation and reduces wiring errors.

Technical Specifications

The TSXCANCADD1 is built with precision for CANopen bus systems. Key parameters from the datasheet include a cable length of 3.3 ft (1 m), two female SUB-D 9 connectors, and an IP20 degree of protection. The product weight is 0.315 lb(US) (0.143 kg), and it carries CE marking for compliance. Package dimensions are 0.787 in (2.000 cm) height, 5.906 in (15.000 cm) width, and 7.874 in (20.000 cm) length, with a package weight of 5.185 oz (147.000 g). These specs ensure easy handling and storage.

Industry Applications

This cordset is essential for connecting CANopen devices in manufacturing lines, material handling systems, and process control. Maintenance engineers rely on its robust molded connectors to withstand frequent plugging cycles in control cabinets. The IP20 protection suits clean, dry environments like electrical rooms or assembly stations. By using the TSXCANCADD1, teams reduce signal loss and commissioning time.

Installation & Setup Guidance

Installing the TSXCANCADD1 is straightforward. Connect the female SUB-D 9 connectors to your CANopen master and slave devices. Ensure the cable length of 1 m meets your bus topology requirements. No special tools are needed—just secure the screw locks on the connectors for a vibration-resistant connection. Always verify pin assignments against your device manual before powering up.

Maintenance & Reliability

For long-term reliability, inspect the molded connectors periodically for cracks or bent pins. The IP20 rating means the cordset should be kept free of dust and moisture. If a connection becomes intermittent, replace the cordset promptly to avoid network errors. The TSXCANCADD1's standard design allows quick swaps, minimizing downtime in production.

Compatibility & Integration

This accessory is designed for the CANopen bus protocol, commonly used with Schneider Electric PLCs and drives. It integrates seamlessly with other CANopen components in your automation network. Verify that your devices use female SUB-D 9 connectors to match the TSXCANCADD1's electrical connection. For best performance, use only within the specified cable length of 1 m.

Buying Guide & Purchasing Advice

Before ordering, confirm your system requires a standard CANopen cordset with 1-meter length and female SUB-D 9 connectors. The TSXCANCADD1 is a connection accessory, not a terminating resistor or power supply. BluePLC Industrial stocks this part for quick delivery. Contact our team to verify lifecycle status and availability for your project.
