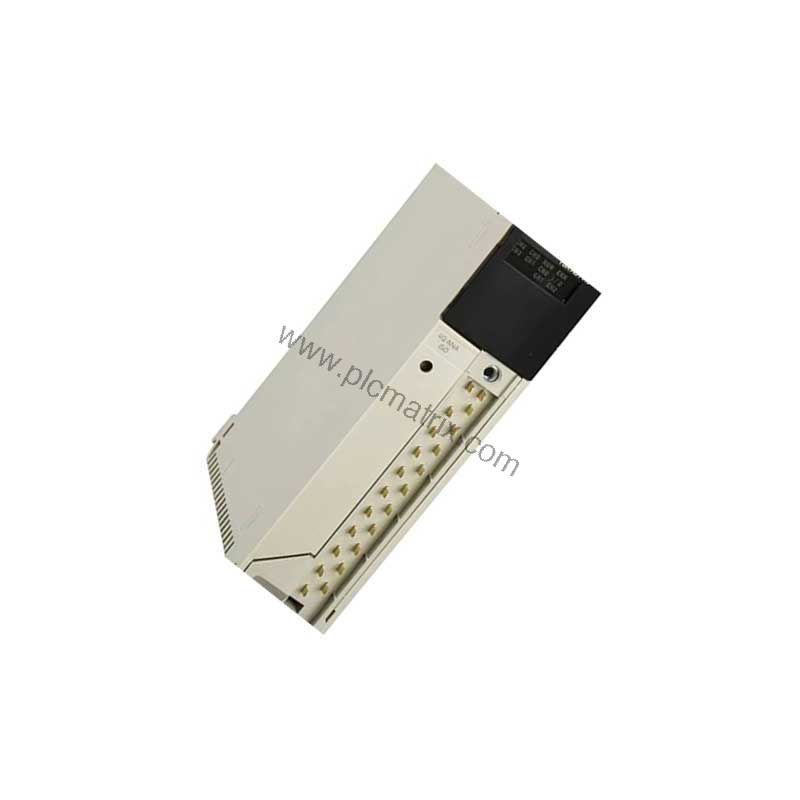

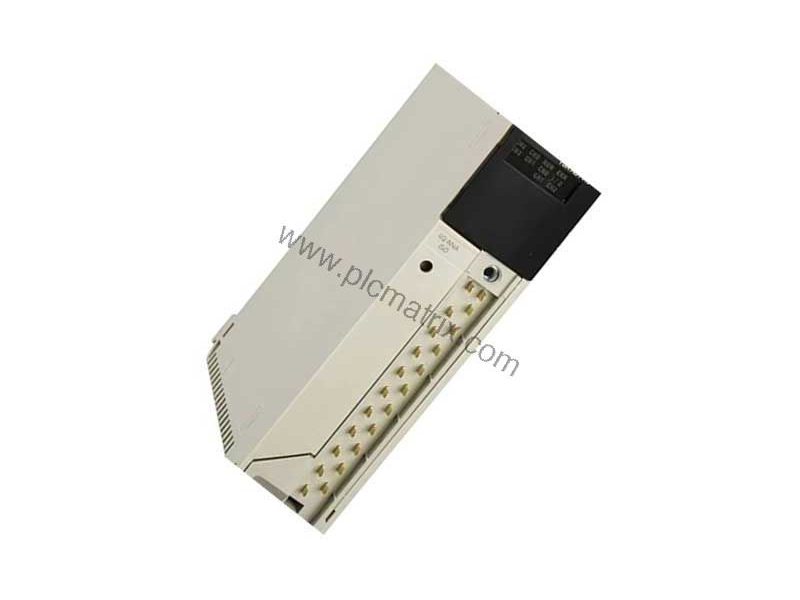

Schneider TSXASY410 Analog Output Module for TSX Micro PLCs

Product Introduction

When your automation system demands precise analog control, the Schneider TSXASY410 delivers reliable performance. This analog output module belongs to the TSX Micro PLCs family and provides four independent output channels. Each channel supports voltage or current signals, making the module versatile for various industrial processes. The TSXASY410 operates on a 24 V DC supply and consumes only 3 W, ensuring energy efficiency in control cabinets.

Technical Specifications Breakdown

The TSXASY410 offers a 12-bit resolution for accurate signal conversion. It provides a voltage output range of 0 to 10 V and a current output range of 0 to 20 mA, with an accuracy of ±0.2% of full scale. The module achieves a fast response time of 1 ms per channel, suitable for applications requiring quick adjustments. Load impedance requirements are a minimum of 2 kΩ for voltage output and a maximum of 500 Ω for current output. The module also includes overload and short-circuit protection, enhancing system reliability.

Industry Applications

In process control environments, the TSXASY410 excels at regulating actuators, valves, and variable frequency drives. For example, in a water treatment plant, the module can send 4-20 mA signals to control chemical dosing pumps, ensuring precise treatment levels. In manufacturing, the 0-10 V output can drive servo drives for conveyor speed control. The module's isolation of 1500 Vrms between channels and bus protects against ground loops and electrical noise, making it suitable for harsh industrial settings.

Installation & Setup Guidance

Mount the TSXASY410 in a standard TSX Micro PLC rack using the screw terminal block for electrical connections. Ensure the 24 V DC power supply is stable and within specifications. For voltage output, connect loads with impedance greater than 1000 Ω; for current output, keep load impedance below 600 Ω. The module supports both 0-20 mA and 4-20 mA current outputs, selectable via configuration. Always verify wiring polarity and use shielded cables for analog signals to minimize interference.

Maintenance & Reliability

The TSXASY410 operates reliably in temperatures from 0 to 60 °C and can be stored between -40 and 85 °C. It withstands humidity from 5 to 95% non-condensing. With an IP20 protection rating, the module is suitable for clean indoor environments. Regular inspection of terminal connections and environmental conditions helps maintain long-term performance. The module's low power consumption of 3 W reduces heat buildup, contributing to extended service life.

Compatibility & Integration

The TSXASY410 integrates seamlessly with the Modicon Premium automation platform and TSX Micro PLCs. It uses a screw terminal block for easy field wiring. The module supports current outputs of 0-20 mA and 4-20 mA, as well as voltage outputs of +/-10 V. The analog-to-digital conversion uses 11 bits plus sign, providing fine resolution. The module's CE marking indicates compliance with European standards, and it holds certifications from GL, ABS, RINA, DNV, RMRS, LR, and BV for marine and industrial applications.

Selection Guide & Purchasing Advice

Before ordering the TSXASY410, verify compatibility with your existing TSX Micro PLC system. Confirm the required output type (voltage or current) and channel count. The module weighs 0.35 kg and ships in a package measuring 26.0 x 18.0 x 5.5 cm. BluePLC Industrial offers this module with reliable availability and fast shipping. Contact our team to confirm current stock and lifecycle status before placing your order.
