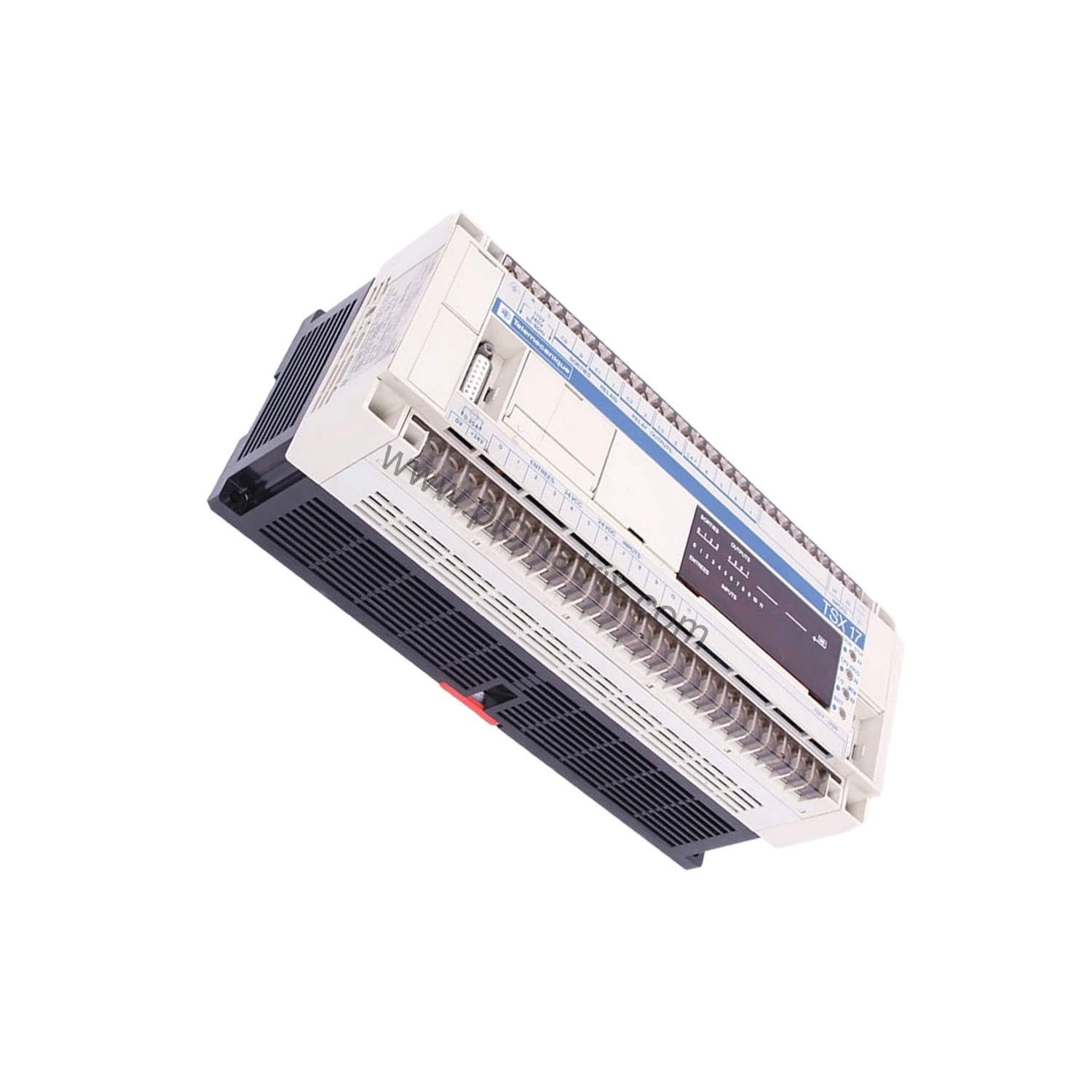

Schneider TSX1722028 PLC Module: Reliable Digital Control for Automation

Product Introduction

When industrial automation systems demand reliable digital control without unnecessary complexity, the Schneider Electric TSX1722028 delivers a straightforward solution. Part of the Modicon family, this PLC module operates at an input voltage of 120/240 VAC with a current rating of 0.5/0.25 AMP, making it versatile for various power environments. Its standalone design eliminates communication interface costs, reducing overall system expenses while maintaining essential control functions.

Technical Specifications Breakdown

The TSX1722028 provides 10 digital inputs and 10 digital outputs, each operating at a signal voltage of 24V DC. This configuration supports efficient signal handling for discrete control tasks. The relay output type ensures reliable switching for moderate loads, extending service life and minimizing replacement costs. With a panel mount design, installation integrates seamlessly into existing enclosures, saving labor time. The module operates reliably across a temperature range of -10°C to +60°C, reducing downtime risks in demanding environments. Weighing 3.44 lbs (1.56 kg), it is lightweight for easy handling during setup.

Industry Applications

In manufacturing lines, the TSX1722028 controls conveyor systems and sorting mechanisms, leveraging its 10 inputs for sensor feedback and 10 relay outputs for actuator commands. This direct I/O mapping reduces programming complexity and lowers integration costs. For packaging machinery, the module manages start/stop sequences and safety interlocks, benefiting from its wide temperature tolerance to maintain performance near heat sources. By choosing this standalone module, facilities avoid expenses associated with network infrastructure, making it a cost-effective choice for simple automation cells.

Installation & Setup Guidance

Mount the TSX1722028 on a panel using the provided slots, ensuring adequate airflow for cooling. Connect the AC power supply to the input terminals rated for 120/240 VAC, verifying the correct voltage selection per local standards. Wire the 24V DC signal inputs and relay outputs according to your control diagram, observing polarity for inputs. Since the module has no communication interface, configure it as a standalone controller using a programming tool compatible with Modicon series. Test each I/O point during commissioning to confirm proper operation, minimizing startup delays.

Maintenance & Reliability

Regular inspection of relay contacts every six months helps maintain switching integrity and avoid unexpected failures. Keep the module within the -10°C to +60°C range to prevent thermal stress, which can degrade components over time. The robust design reduces maintenance frequency, translating to lower total cost of ownership. For environments with dust or vibration, periodic cleaning and tightening of terminal connections ensure long-term reliability without costly repairs.

Buying Guide & Purchasing Advice

Before purchasing the TSX1722028, verify your system's power supply matches the 120/240 VAC input and 0.5/0.25 AMP rating. Confirm that your application requires exactly 10 inputs and 10 outputs with relay type—no communication interface is needed. For replacement or new projects, check compatibility with existing Modicon controllers. BluePLC Industrial offers this module with verified stock and fast shipping, helping you avoid procurement delays. Contact our team for current lifecycle status and availability to ensure timely delivery for your automation upgrade.
