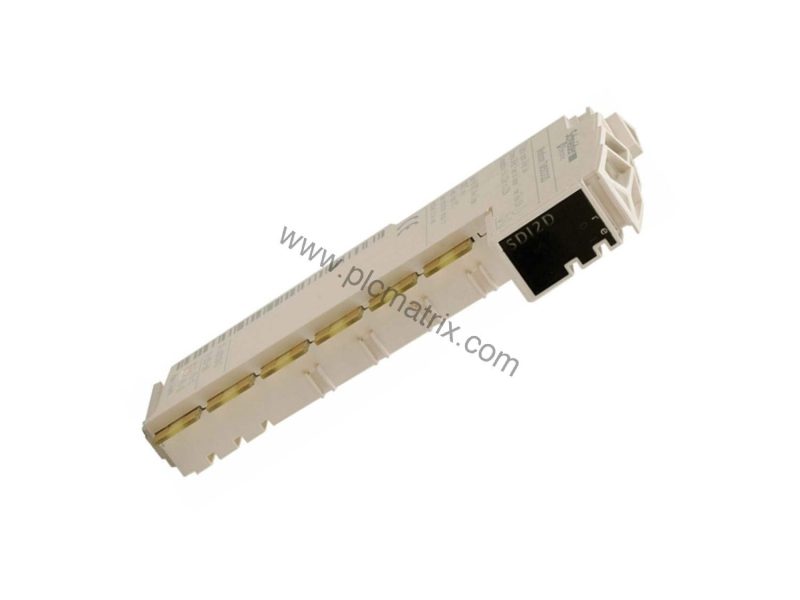

Schneider TM5SDO8TA 8-Channel Transistor Output Module for Modicon TM5

Product Overview

When system downtime drives up operational costs, the Schneider TM5SDO8TA discrete output module delivers reliable performance to keep production lines running. Part of the Modicon TM5 range, this module provides 8 transistor outputs with source logic at 24V DC. It integrates seamlessly with Modicon LMC058 and M258 controllers, offering a cost-effective solution for industrial automation.

Technical Specifications

The TM5SDO8TA operates with an output voltage of 24V DC and accepts a voltage range of 20.4 to 28.8V. Each channel handles up to 2A continuous current, with a total common current limit of ≤8A. Peak output current reaches ≤12A, and the switching frequency supports ≤500Hz for resistive loads. Response time is ≤300µs for both state transitions, minimizing delays in control loops. Leakage current is just 5µA when switched off, reducing power waste. Built-in short-circuit, overload, and reverse polarity protection safeguard the module and connected equipment. Power dissipation stays ≤1.5W, and the module draws 44mA from the 5V DC bus, contributing to energy efficiency.

Industry Applications

In packaging lines, the TM5SDO8TA controls solenoid valves and actuators with precise timing, reducing cycle times and energy consumption. For material handling systems, its fast 300µs response ensures accurate sorting and positioning, minimizing product damage. In machine tool automation, the module drives indicator lights and small motors, leveraging the 2A per channel capacity to handle multiple loads without extra relays. Each application benefits from the module’s protection features, which prevent costly repairs and unplanned downtime.

Installation & Setup Guidance

Mount the TM5SDO8TA on a DIN rail within the Modicon TM5 system. Use 1-wire electrical connections for each output. Ensure the ambient temperature stays between 0 and 60°C with derating for horizontal installation, or 0 to 55°C without derating. For vertical installation, maintain 0 to 50°C. The module weighs only 0.025 kg, simplifying handling during assembly. Verify that the 24V DC supply stays within 20.4 to 28.8V to avoid triggering protection circuits.

Maintenance & Reliability

Routine inspection of the 8 yellow LED output status indicators helps quickly identify faulty channels. The red and green power supply LEDs confirm proper voltage levels. With IP20 protection and pollution degree 2 rating, the module suits clean industrial environments. Its vibration resistance of 3.5mm at 5 to 8.4Hz and shock resistance of 15gn for 11ms ensure reliable operation in moderate mechanical stress conditions. Regular checks of the ambient temperature and humidity (5 to 95% without condensation) extend service life and reduce total cost of ownership.

Compatibility & Integration

The TM5SDO8TA is designed for Modicon LMC058 motion controllers and M258 logic controllers. It uses the TM5 bus for power and communication, requiring no additional wiring for data exchange. The module supports CE marking and complies with CSA, C-Tick, CULus, and GOST-R certifications. For system expansion, pair it with other TM5 discrete or analog modules to match I/O requirements.

Selection Guide & Purchasing Advice

Before ordering, confirm that your controller is a Modicon LMC058 or M258. Verify the output voltage (24V DC) and current per channel (2A) meet your load specifications. The module uses source logic, so ensure your field devices are compatible. For current availability and lifecycle status, contact plcmatrix.com. As a trusted supplier of industrial automation components, plcmatrix.com offers the TM5SDO8TA with reliable delivery and support.
