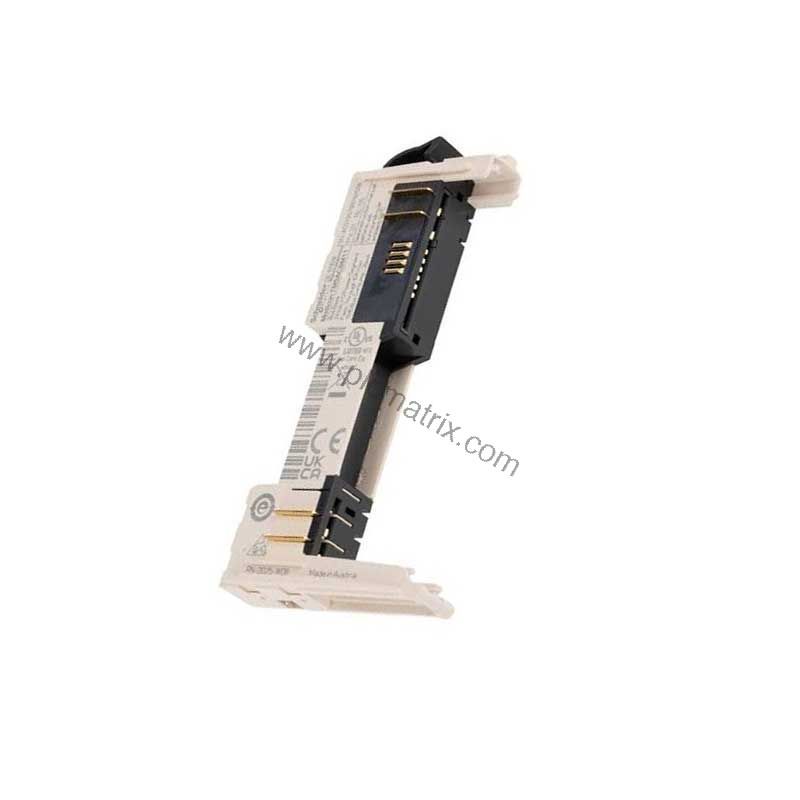

Schneider TM5ACBM11 Bus Base for Modicon TM5 Systems

Product Overview

When building a reliable Modicon TM5 automation system, the foundation matters. The Schneider TM5ACBM11 bus base provides a secure mounting and electrical connection point for compatible modules. This white accessory is part of the Modicon TM5 range and works with remote transmitter modules, counter modules, 24V DC slice discrete modules, common distribution modules, and analog modules. Its compact design saves panel space while ensuring signal integrity.

Technical Specifications

The TM5ACBM11 operates on a rated supply voltage of 24V DC, matching the standard control voltage in many industrial environments. Weighing just 0.02 kg, it adds negligible mass to your assembly. The package dimensions are 1.700 cm height, 5.400 cm width, and 10.700 cm length, with a package weight of 27.000 g. Each unit is sold individually, and one piece is included per package.

Compatibility & Integration

This bus base is designed for use with Modicon LMC058 and Modicon M258 controllers. It supports a wide range of I/O and function modules, including analog modules, counter modules, and 24V DC discrete modules. This flexibility makes it a versatile building block for distributed automation architectures. When planning your system, verify that each module you intend to mount is compatible with the TM5ACBM11.

Installation Guidance

Mount the TM5ACBM11 on a DIN rail in your control cabinet. Ensure the 24V DC power supply is properly rated for the total load of all connected modules. Follow standard wiring practices for signal and power connections. The white color aids visual identification during installation and maintenance. Always consult the Modicon TM5 system manual for detailed mounting instructions and torque specifications.

Maintenance & Reliability

Routine inspection of bus base connections helps maintain system uptime. Check for secure module seating and clean contacts. The TM5ACBM11 is a passive component, so its reliability depends largely on environmental conditions. Keep the enclosure free of dust and moisture. For cost-effective long-term operation, consider stocking spare bus bases to minimize downtime during replacements.

Buying Guide

Before purchasing the TM5ACBM11, confirm your controller model (LMC058 or M258) and the specific modules you plan to use. This bus base is sold individually, so order the quantity needed for your system. BluePLC Industrial offers this Schneider accessory with fast shipping and competitive pricing. Contact our team if you need assistance matching the TM5ACBM11 to your application requirements.
