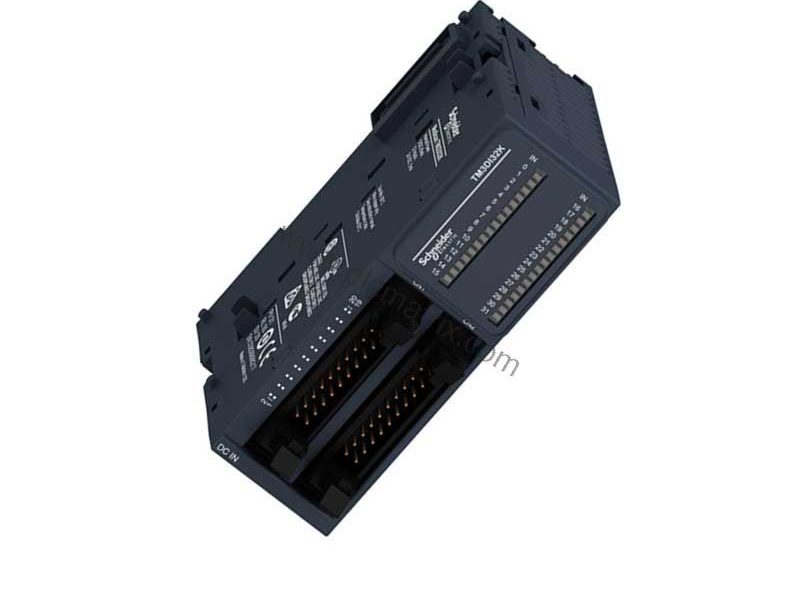

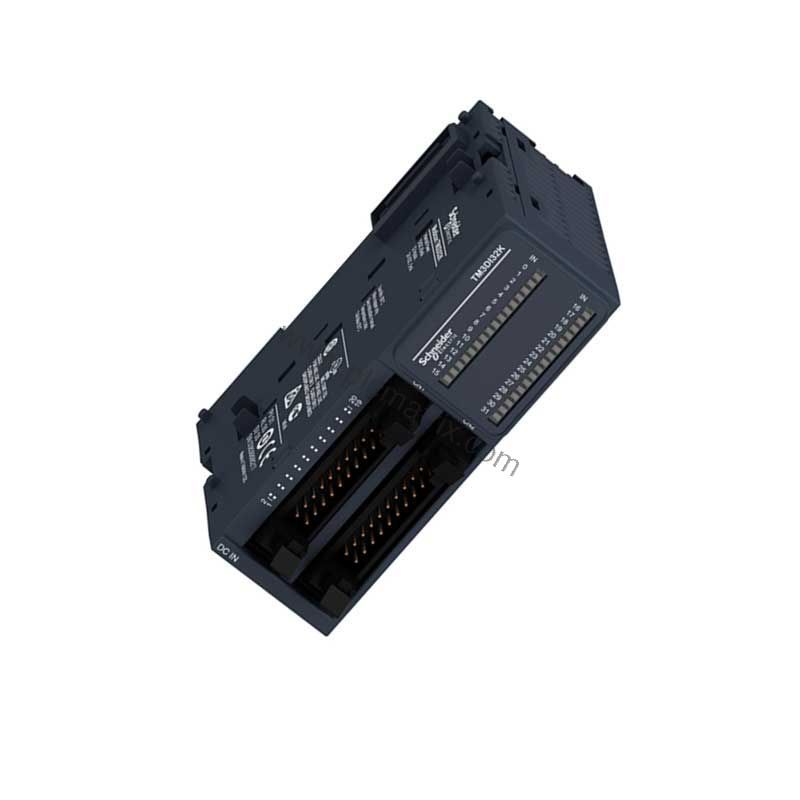

Schneider TM3DI32K Discrete Input Module for Modicon TM3 Systems

Product Overview

As industrial automation evolves, the demand for high-density, reliable discrete input modules grows. The Schneider TM3DI32K discrete input module, part of the Modicon TM3 family, meets this need with 32 inputs in a compact 33.5 mm wide package. Designed for use with Modicon M221, M241, M251, and M262 controllers, it provides a robust interface for sensors and switches in modern manufacturing lines.

Each input conforms to IEC 61131-2 Type 1, ensuring compatibility with a wide range of industrial sensors. The module supports both sink and source logic (positive/negative), giving engineers flexibility in system design. With a guaranteed voltage state 1 range of 15 to 28.8 V DC and a state 0 range of 0 to 5 V DC, the TM3DI32K delivers clear signal discrimination even in noisy environments.

Technical Specifications Breakdown

The TM3DI32K offers 32 discrete inputs, each drawing 5 mA at 24 V DC. Input impedance is 4.4 kOhm, and response time is 4 ms for both turn-on and turn-off, suitable for most industrial sensing applications. The module consumes 65 mA at 5 V DC via the bus connector when inputs are on, and 5 mA at 5 V DC when off. Power from the 24 V DC bus is negligible in both states.

Electrical connection uses a HE-10 connector, with maximum unshielded cable distance of less than 30 meters for regular inputs. Insulation between input and internal logic is rated at 500 V AC, while inputs are non-insulated from each other. Local signaling includes one green LED per channel for input status, simplifying troubleshooting.

Industry Applications

In automotive assembly lines, the TM3DI32K monitors limit switches and proximity sensors across multiple stations, its 32-point density reducing cabinet space. For packaging machinery, it interfaces with photoelectric sensors to detect product presence, with fast 4 ms response ensuring accurate counting. In material handling systems, the module's sink/source flexibility allows direct connection to both NPN and PNP sensors without additional wiring.

Installation & Setup Guidance

Mount the TM3DI32K on a top hat TH35-15 or TH35-7.5 rail per IEC 60715, or on a panel using a fixing kit. Ensure ambient temperature stays between -10 and 55 °C for horizontal installation, or -10 to 35 °C for vertical. Use shielded cable for runs over 30 meters to maintain signal integrity. Connect inputs via the HE-10 connector, observing polarity for sink or source configuration. The module draws power from the bus connector, so no separate power supply is needed.

Maintenance & Reliability

With IP20 protection when the protective cover is in place, the TM3DI32K is suitable for clean indoor environments. It withstands vibration up to 3.5 mm at 5 to 8.4 Hz and 3 gn at 8.4 to 150 Hz on DIN rail, plus shock resistance of 15 gn for 11 ms. Operating altitude is 0 to 2000 meters. Periodic inspection of connections and LED indicators helps ensure long-term reliability. The module's compliance with EN/IEC 61010-2-201 and EN/IEC 61131-2 standards supports consistent performance.

Compatibility & Integration

The TM3DI32K integrates seamlessly with Modicon M221, M241, M251, and M262 controllers via the TM3 bus. No additional communication protocol configuration is required; the module is automatically recognized by the controller. For system expansion, multiple TM3 modules can be daisy-chained. The module carries CE, CULus, UKCA, RCM, and EAC certifications, simplifying global machine approvals.

Selection Guide & Purchasing Advice

Before purchasing the TM3DI32K, verify your controller compatibility (M221, M241, M251, or M262) and ensure your application requires 32 inputs at 24 V DC with HE-10 connectors. Consider cable length limits and environmental conditions. For current lifecycle status and availability, contact plcmatrix.com, a trusted supplier of Schneider Electric automation components.
