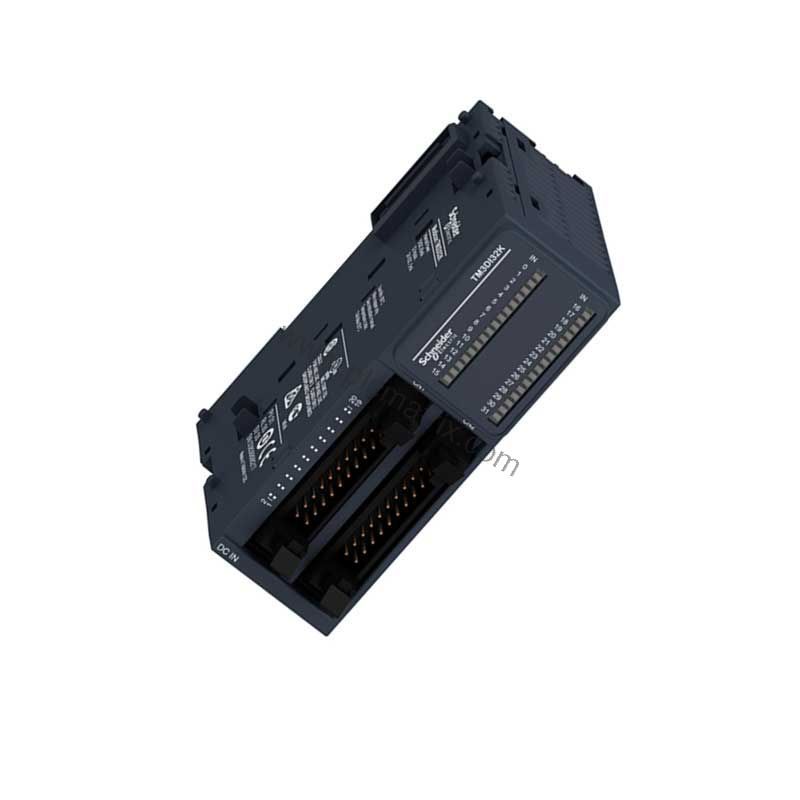

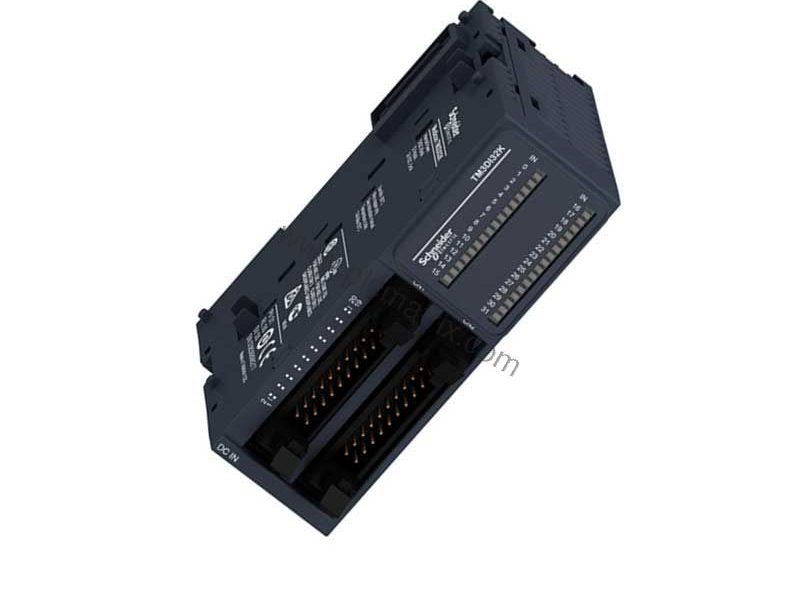

Schneider TM3DI32K 32-Point Discrete Input Module for Modicon M221/M241/M251/M262

Product Overview

When expanding your Modicon control system, adding digital inputs can quickly escalate costs if you choose modules with limited channel density. The Schneider TM3DI32K discrete input module solves this problem by packing 32 inputs into a compact 33.5 mm wide housing, reducing per-point cost and panel space. Part of the Modicon TM3 family, this module works seamlessly with M221, M241, M251, and M262 controllers, accepting both sink and source (positive/negative) logic at 24V DC. Each input draws only 5 mA, keeping your power supply budget lean.

Technical Specifications Breakdown

The TM3DI32K delivers reliable signal detection with a guaranteed ON-state voltage range of 15 to 28.8V DC and a minimum ON-state current of 2.5 mA. The OFF-state is clearly defined at 0 to 5V with current below 1 mA, preventing false triggering. Input impedance sits at 4.4 kOhm, balancing sensitivity and noise immunity. Response time is a consistent 4 ms for both turn-on and turn-off, suitable for most discrete sensing tasks. The module consumes 65 mA at 5V DC via the bus connector when all inputs are active, and only 5 mA at 5V DC when off—minimizing energy waste and extending controller power budget.

Cost-Effective Installation & Mounting

Mounting the TM3DI32K on a standard TH35-15 or TH35-7.5 DIN rail (IEC 60715) takes seconds, and the 90 mm height fits neatly into shallow enclosures. The HE10 connector simplifies wiring for high-density inputs, and the maximum unshielded cable distance of 30 meters covers most machine layouts without expensive shielded cabling. With an IP20 protective cover and pollution degree 2 rating, this module withstands typical industrial environments. The compact 33.5 mm width and 0.1 kg weight reduce shipping costs and panel loading.

Real-World Applications

In packaging machinery, the TM3DI32K monitors 32 proximity sensors or limit switches on a single module, cutting I/O module count by 50% compared to 16-point alternatives. For conveyor systems, its 4 ms response time ensures accurate part detection at moderate line speeds. The wide operating temperature range of -10 to 55°C (horizontal installation) suits unconditioned factory floors. By consolidating inputs, you reduce wiring labor, spare parts inventory, and potential failure points—directly lowering total cost of ownership.

Compatibility & Integration

The TM3DI32K integrates natively with Modicon M221, M241, M251, and M262 controllers via the TM3 bus. No external power supply is needed for the input logic; the module draws 5V DC power directly from the bus connector. This plug-and-play compatibility eliminates additional wiring and configuration steps, speeding up commissioning. The module carries CE, CULus, UKCA, RCM, and EAC certifications, ensuring acceptance in global projects.

Maintenance & Reliability

Each input channel has a green LED for status indication, allowing quick visual troubleshooting without a programming terminal. The module withstands 1 kV fast transients and 1 kV surge on I/O lines, protecting against electrical noise common in industrial settings. With vibration resistance up to 3 gn and shock resistance of 15 gn, the TM3DI32K maintains reliable operation in high-vibration machinery. Regular inspection of the HE10 connector and cable integrity ensures long service life.

Selection Guide & Purchasing Advice

Before ordering, verify that your Modicon controller supports the TM3 expansion bus (M221, M241, M251, or M262). Confirm your input devices operate at 24V DC and draw at least 2.5 mA at the ON state. For applications requiring high-speed counting or interrupt inputs, check if your controller offers dedicated fast input channels separately. BluePLC Industrial stocks the TM3DI32K with fast shipping and competitive pricing—contact our team for volume discounts or to confirm lifecycle status.
