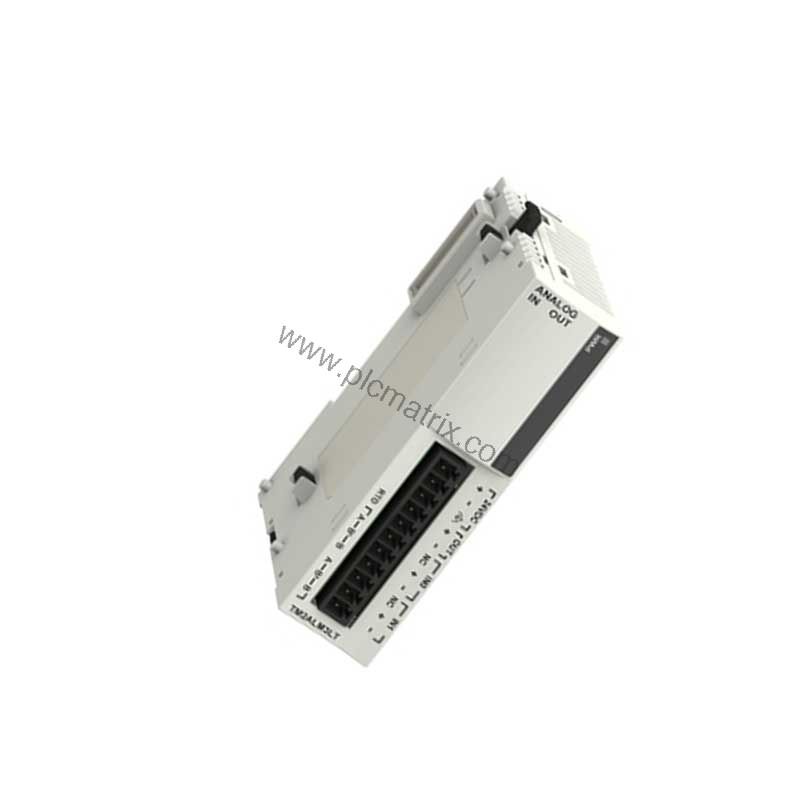

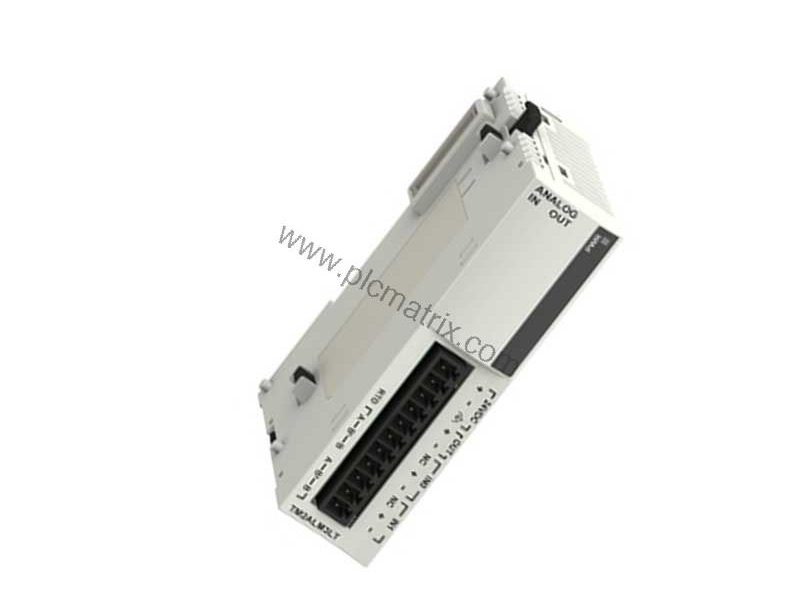

Schneider TM2ALM3LT Analog I/O Module for Modicon M238

Product Introduction

When precise temperature measurement and control are critical in industrial processes, the Schneider TM2ALM3LT analog input/output module delivers reliable performance. Part of the Modicon M238 logic controller family, this module provides 2 low-level analog inputs for thermocouples and temperature probes, plus 1 analog output for current or voltage signals. Designed for cost-sensitive applications, it offers a practical balance of functionality and value.

Technical Specifications Breakdown

The TM2ALM3LT supports multiple sensor types: 3-wire Pt probes (100...500 °C), thermocouple J (0...1200 °C), K (0...1300 °C), and T (0...400 °C). Input resolution is 12 bits, with LSB values of 0.1 °C for thermocouples and 0.15 °C for temperature probes. The analog output provides 4...20 mA or 0...10 V signals with 12-bit resolution. Conversion time is 20 ms plus one controller cycle, while acquisition period reaches 60 ms per channel for thermocouples. Measurement error stays within +/-0.2 % of full scale at 25 °C, ensuring consistent accuracy. These specs directly reduce calibration costs and process variability.

Industry Applications

In temperature monitoring for plastic injection molding, the TM2ALM3LT reads thermocouple J inputs to track barrel and mold temperatures, while the 4...20 mA output drives heater control valves. For HVAC systems, the module handles Pt100 probes for duct temperature sensing and outputs 0...10 V to modulate damper actuators. Using thermocouple K for exhaust gas monitoring in industrial ovens further demonstrates its versatility. Each application benefits from the module's low total error of +/-1 %FS, minimizing waste and energy consumption.

Installation & Setup Guidance

Mount the TM2ALM3LT onto a Modicon M238 controller using the provided removable screw terminal block. Use shielded cable for all analog connections to reduce electrical noise. Supply voltage must be 24 V DC within limits of 19.2...30 V. The module draws 50 mA from the 24 V DC external supply and 50 mA from the 5 V DC internal bus. Ensure proper grounding and follow wiring diagrams for 3-wire Pt probes or thermocouple configurations. Stabilization time is 20 ms, so allow the system to settle before taking critical readings.

Maintenance & Reliability

Regular inspection of terminal connections and cable shielding helps maintain signal integrity. The module features photocoupler insulation between channels and internal logic, with dielectric strength of 500 V, enhancing reliability in noisy industrial environments. With a weight of only 0.085 kg and compact dimensions (23.5 x 70 x 90 mm), it fits easily into control cabinets. Routine checks every six months ensure long-term accuracy, reducing unexpected downtime and replacement costs.

Compatibility & Integration

The TM2ALM3LT integrates seamlessly with Modicon M238 logic controllers and is compatible with Advantys OTB and Twido range systems. It requires an external 24 V DC supply and communicates via the controller's backplane. No additional communication protocols are needed for basic operation, simplifying system design and lowering integration expenses.

Selection Guide & Purchasing Advice

Before purchasing, verify that your controller supports the TM2ALM3LT and that your sensor types match the module's input ranges (Pt100, thermocouple J/K/T). Ensure your power supply meets the 19.2...30 V DC requirement. BluePLC Industrial offers this module with expert support to help you select the right components for your application, ensuring cost-effective automation solutions.
